X-431 Scopebox 02-1 | Launch | Automotive Oscilloscope

O2-1 Scopebox can not only capture the circuit signal quickly, but also slowly display the waveform to be observed and analyzed.
It can record and store the tested signal waveform, which makes the failure analysis very convenient.

Price:

1,082.64€

: In Stock! Estimated Delivery Time: 2-4 Days
Brand: LAUNCH
Model: O2-1 Scopebox

Qty

Buy now

Ask Question

Add to Wish List

Description

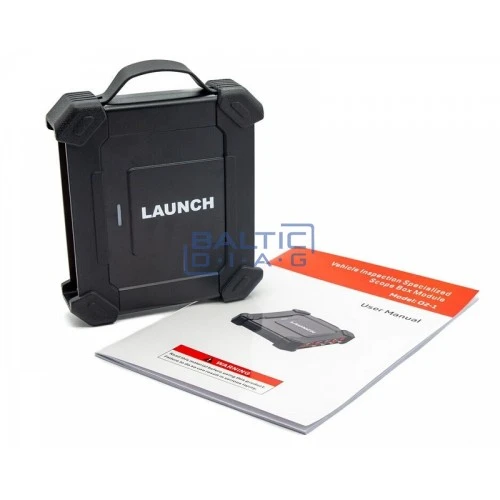

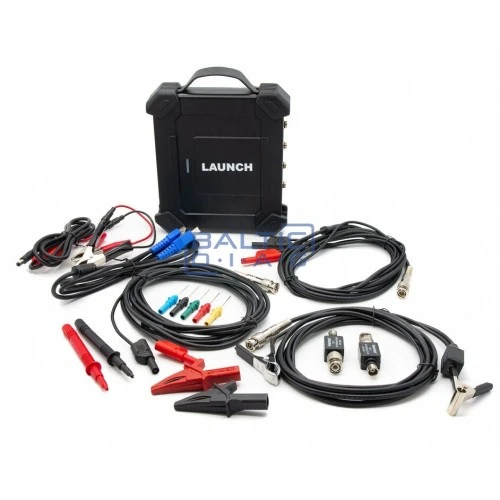

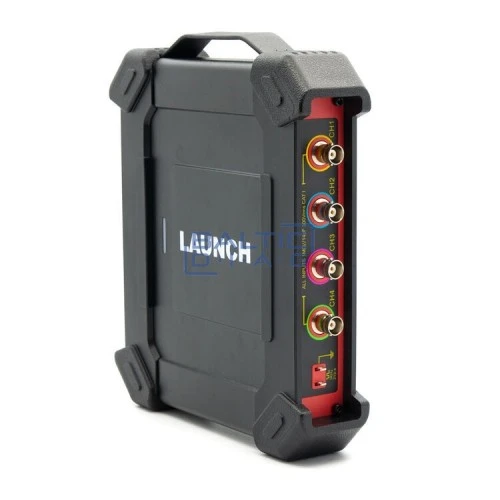

X-431 Scopebox 02-1 Automotive Oscilloscope

Professional 4-channel oscilloscope that can define waveforms of electric circuits with future analysis. By analyzing waveforms, a variety of faults can be discovered on ignition, sensors, actuators, circuits, electronic control units and the quality of the engine work; display of primary and secondary charts in different views; DIS, ignition diagram; analysis of power (in kW), cylinder compression and other. At the moment, Launch Sensorbox 02-1 is compatible with X-431 EURO TAB II and X-431 EURO TAB III in connection via USB port.

Features

23 automatic measurements: 23 kinds of automatic measurements are displayed on one screen, which are clear at a glance, and can be selected by tapping. It supports one- key clearing, which eliminates the tediousness of repeatedly turning pages and searching, and makes automatic measurement easy and convenient.
Powerful trigger function: Support edge, pulse width and other triggers. Intuitive trigger settings and quick trigger source switching make the most difficult part of oscilloscope application extremely easy.
High storage depth: With a storage depth of up to 50M, together with zoom technology, both the overall picture and the details can be fully displayed; the upper area can be browsed globally, and the lower area can be searched for details, so that the debugging speed is more than doubled.
Special quick store function: The waveform can be quickly saved with one key, and ordinary oscilloscopes need 3 to 5 steps to achieve this step, which can save more than 70% of time.
Convenient cursor operation: Turn on the horizontal and vertical cursors with one key respectively. Each cursor can be dragged independently, and cursor tracking can also be realized directly by simple highlight touch, and the overall efficiency is increased by more than 80%.

Virtual keyboard input: When inputting names and characters, ordinary desktop oscilloscopes can only use the knob to "difficultly" rotate one by one to select input, while this scopebox can click on the soft keyboard to input, which improves efficiency by more than 90%.
Customize and load system settings: A variety of preferred system settings can be set and saved as configuration files. Later, you can directly load the configuration file for viewing according to personal preferences, without repeated settings.
Waveform recording and playback: The waveform can be recorded and saved, and then it can be directly recalled as a reference channel waveform for display.
Support waveform math operations: It supports the calculation of addition, subtraction, multiplication and division of two channel waveforms, and also supports FFT(Fast Fourier Transform).
Support multiple automotive tests: such as circuits, sensors, actuators, ignition tests, communication tests and combination tests. Various parameters are preset and specific connection methods are provided for each test.

Frequently Asked Questions

Do you offer international shipping for your products? ❯: Yes, we offer fast international express delivery for all products available at BalticDiag.com. We deliver worldwide — including the USA, Europe, North America, South America, Asia, Africa, and Australia — using trusted courier services such as DHL, UPS, and FedEx. Every order is shipped with express delivery straight to your door, ensuring a quick and secure arrival. Shipping fees are included in the product price, and we provide full tracking information so you can monitor your package from dispatch to delivery.

Please note that some products include free delivery, while others require confirmation of shipping costs before purchase. In most cases, pallet-sized packages have additional delivery charges that must be calculated in advance by our sales team.
How can I pay for my order on Balticdiag.com? ❯: We accept a wide range of secure global and local payment methods, including:

Credit & Debit Cards: Visa, Mastercard, American Express, Discover, Diners Club, JCB, China UnionPay, Cartes Bancaires (France)

Digital Wallets: Apple Pay, Google Pay, PayPal, Alipay, Revolut Pay, MobilePay (Denmark & Finland), Link with Instant Bank Payments (USA)

Local Payment Methods: Bancontact (Belgium), BLIK & Przelewy24 (Poland), iDEAL (Netherlands), giropay (Germany), EPS (Austria), Klarna (buy now, pay later), SEPA Direct Debit (EU), Kakao Pay, Naver Pay, PAYCO (South Korea)

Bank Transfers: We also support traditional wire transfers.

Channels	4	Acquisition mode	Normal
Bandwidth	100MHz	Line decoding	CAN, LIN
Rising time	≤3.5ns (typical)	Trigger type	Edge, Pulse width
Max. sample rate	1G (for four channels)	Trigger mode	Normal, Auto and Single SEQ
Input impedance	1MΩ±1.5%	Trigger Coupling	DC, Noise rejection
Storage depth	50M (for four channels)	Display	YT, Zoom, Roll
Vertical resolution	8bit	Roll mode	200ms/div~1000s/div
DC gain accuracy	± 3%	Auto set	Support
Horizontal scale	5mV~10V	Auto measurement items	23
Horizontal offset range	± 2.5V (in case of probe switch “x1”, <500mV/div), ±120V (in case of probe switch “x1”, ≥500mV/div）	Cursor	Horizontal cursor, Vertical cursor

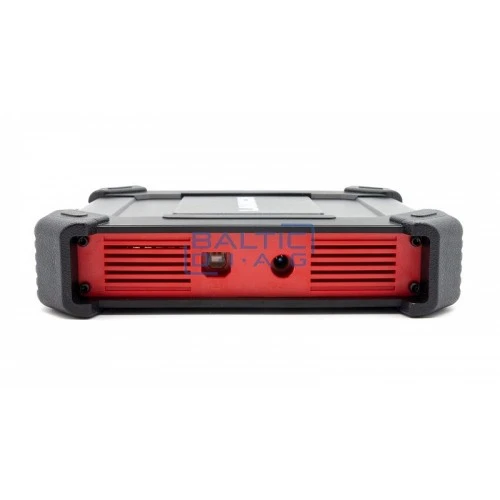

Invert	Support	Power interface	USB port, DC IN port
Coupling	DC, AC	Data exchange via	USB
Timebase	50ns~1ks	Compatible operating system	Android
Timebase precision	20ppm	Automotive	Circuits, sensor, actuators, ignition

Channels	4	Acquisition mode	Normal
Bandwidth	100MHz	Line decoding	CAN, LIN
Rising time	≤3.5ns (typical)	Trigger type	Edge, Pulse width
Max. sample rate	1G (for four channels)	Trigger mode	Normal, Auto and Single SEQ
Input impedance	1MΩ±1.5%	Trigger Coupling	DC, Noise rejection
Storage depth	50M (for four channels)	Display	YT, Zoom, Roll
Vertical resolution	8bit	Roll mode	200ms/div~1000s/div
DC gain accuracy	± 3%	Auto set	Support
Horizontal scale	5mV~10V	Auto measurement items	23
Horizontal offset range	± 2.5V (in case of probe switch “x1”, <500mV/div), ±120V (in case of probe switch “x1”, ≥500mV/div）	Cursor	Horizontal cursor, Vertical cursor
Invert	Support	Power interface	USB port, DC IN port
Coupling	DC, AC	Data exchange via	USB
Timebase	50ns~1ks	Compatible operating system	Android
Timebase precision	20ppm	Automotive	Circuits, sensor, actuators, ignition
