  • Powerful Motorcycle TEXA diagnostic interface combined with TEXA's software and BALTICDIAG’s diagnostic laptop.

UPS-FEDEX-EXPRESS DELIVERY

trust-pilot-reviews

Price:
2,709.00€
  • : In Stock! Estimated Delivery Time: 2-4 Days
  • Brand: TEXA
  • Model: TXTBIKE

Available Options



The best of Diagnostics in a single solution



NAVIGATOR TXB 2 is the new tool that TEXA designed and developed specifically for the motorcycle diagnosis environments.

Its hardware features make it compatible with all the current protocols for both environments and its integrated 16-pin CPC connector allows the use of all the diagnostic cables. It is extremely powerful, equipped with a 16 MBit SRAM and an 8 GBit NAND FLASH storage memory; these are very important features as they allow the mechanic to manage the map files easily.

The supported CAN standards include the CAN single wire management and an extra CAN controller for the diagnosis on more than one network.

TEXA’s diagnostic solution for the BIKE diagnostic environment consists in AXONE NEMO 2, quick and powerful display unit, and NAVIGATOR TXB Evolution or NAVIGATOR TXTs, very robust vehicle interfaces that are perfect for communicating with every motorcycle. The display unit and the vehicle interface interconnect via Bluetooth and communicate with the vehicle’s electronic control units, guaranteeing levels of speed and performance that are simply unrivalled in the world of multi-brand diagnostics. TEXA also means great ease of use and versatility: in fact, the vehicle interfaces Navigator TXB Evolution and NAVIGATOR TXTs are also compatible with Personal Computers with a Windows operating system.

Special adjustments



The IDC5 software offers a wide range of special adjustments that go beyond the ordinary vehicle servicing, such as:

  • Vehicle configuration change
  • Display setting change - Exhaust valve enabling
  • Key adaptation
  • Anti-theft enabling / disabling
  • Odometer alignment
  • Speed limiter unlock after running-in for S 1000 R (K47), S 1000 XR (K49) and S 1000 RR (K46)
  • 99 HP limitation adjustment
  • Engine ECU reset
  • CO adjustment

Errors





This page instantly displays all the errors in the vehicle, with the related codes and descriptions.

From this page, the error reading and clearing can be carried out in a single click, as well as a self-diagnosis test on the selected system.



Nominal values



Useful to solve a fault associated with an error code detected in self-diagnosis. They provide a tree diagram to solve the fault.



Data sheets



Very accurate information on the selected vehicle, including instructions for performing a manual service reset, overviews of specific mechatronic systems and much more.



Technical data





These sheets provide technical information on the engine and indications on the maintenance plan. Very important to dig into the details of each vehicle: Mechanical Data, Wheel Alignment,  Timing Belt, Scheduled Maintenance, Component Locations.



Interactive wiring diagrams





The animations of the relevant devices create an interactive map with the flow of input and output signals to/from the control units.

Useful for enhanced troubleshooting, through interaction with the various components shown in them.

You can select specific components to identify their cables and their electrical and logical connections to other components on the wiring diagram.

Specialists in multi-brand diagnostics




Electronic injection, engine and helm management, electronic throttle, drivetrain, electronic systems for galvanic corrosion control, engine compartment.

It is unthinkable for a multi-brand workshop to carry out repair interventions on modern bike without the support of valid electronic diagnostics to detect errors, adapt control units, activate components, perform adjustments, reset values.

Having an adequate diagnostic tool is essential in order to remain competitive in bike repair market.

TEXA’s diagnostic tool allows mechanics to solve more faults in less time and with certainty. To improve their service to customers and the workshop’s accounts.

PROCESSOR CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB FLASH, 564KB RAM SRAM MEMORY 16 MBits organized in 1024K x 16 bits
SRAM 256 MBits organized in 4096K x 4 banks x 16 bitseMMC MEMORY eMMC MEMORY 8 GByte on an 8-bit bus
VEHICLE BATTERY VEHICLE BATTERY System management at 12 V and 24 V EXTERNAL POWER SUPPLY EXTERNAL POWER SUPPLY 12 ÷ 24 V
USB COMMUNICATION USB COMMUNICATION 2.0 high speed 5 V / 500 mA WIRELESS CONNECTION WIRELESS CONNECTION Bluetooth 5.0 class1
OPERATIONAL BAND 2402 ÷ 2480 MHz MAXIMUN RADIO FREQUENCY POWER TRANSMITTED 10 dBm
ELECTRONIC SWITCH 2-way, 13 independent positions DIAGNOSTIC CONNECTOR 16-pin CPC
SUPPORTED PROTOCOLS Blink codes
K, L (with current protection 100 mA)
ISO9141-2, ISO14230
FD CAN 11898-2:2016 2 channels
CAN ISO 11898-3 LOW Speed
CAN SAE J2411 Single Wire
SAE J1850 PWM
SAE J1850 VPW
SAE J1708
RS232
VISIBLE WARNINGS LED: RGB x3
12 V CONSUMPTION 300 mA 24 V CONSUMPTION 100 mA
OPERATING TEMPERATURE 0 ÷ 50 °C STORAGE TEMPERATURE – 20 ÷ 60 °C
OPERATING MOISTURE 10 ÷ 80 % without condensation DIRECTIVES RED 2014/53/EU
RoHS 2011/65/EU and Delegated Directive 2015/863/EU
SAFETY EN 62368-1
EN 62311
ELECTROMAGNETIC COMPATIBILITY EN 301 489-1
EN 301 489-17
RADIO SYSTEMS EN 300 328 WEIGHT 215 g

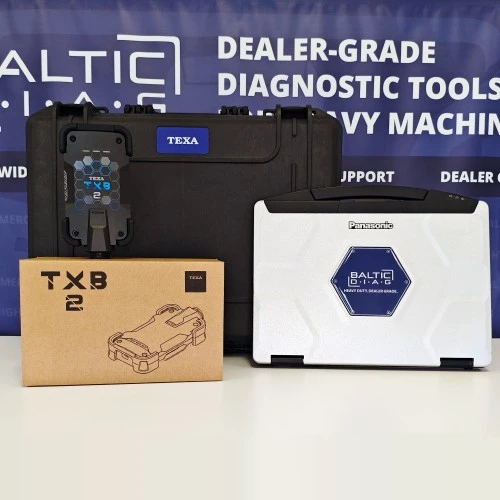

  • D189D0 TEXA TXB 2 interface
  • P12936 TEXA IDC5 Software Bike

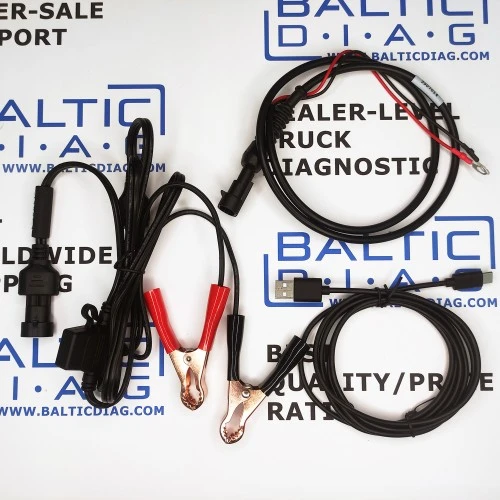

  • S0493C TEXA Bike essential cable case:
    - Bike main cable for ADIVA, APRILIA, DERBI, DUCATI >2010, GILERA, MALAGUTI, MOTO GUZZI, MOTO MORINI, MV AGUSTA>2013, PIAGGIO, VESPA and to use some adapter cables
    - Euro 4 MOTO 16 pin diagnosis cable
    - Generic SUZUKI cable*
    - Generic HONDA cable (3151/AP20)*
    - DUCATI cable from 2010 (3151/AP23)
    - Generic KAWASAKI cable from 2010 (3151/AP31)
    - BMW cable (3151/AP37)
    - KTM/HUSABERG cable (3151/AP39)
    - OBD EURO 5 MOTORCYCLES cable
    - YAMAHA bike cable (3151/AP59)

Diagnostic tool TEXA is modular solution, that's why our BALTICDIAG team can offer customized solution according to your budget and to your technical requirements. TEXA diagnostic tool's price depends from various components so it is always useful to get advice from BALTICDIAG sales managers. Contact us.
