ELP400 EV | Launch | Professional Charger And Discharger
ELECTRIC VEHICLES
ELP400 EV | Launch | Professional Charger And Discharger
- Safe charging and discharging
- Intelligent cell string
- Battery capacity optimisation
- Overcharge and discharge protection
Price:
9,916.53€
- : In Stock! Estimated Delivery Time: 2-4 Days
- Brand: LAUNCH
- Model: ELP400

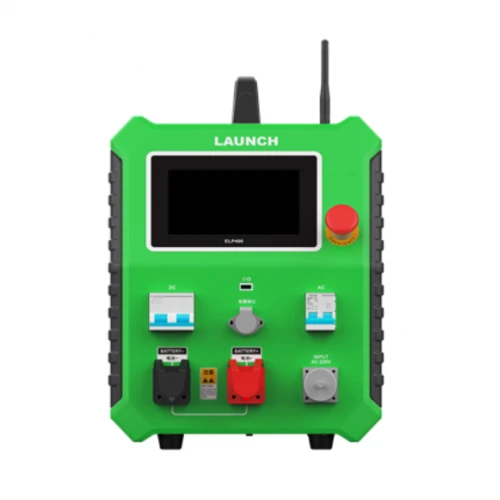

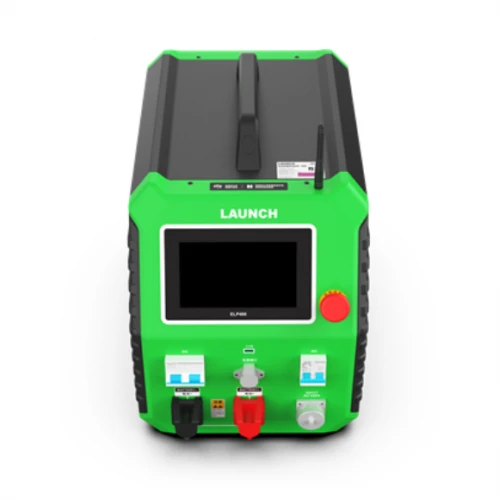

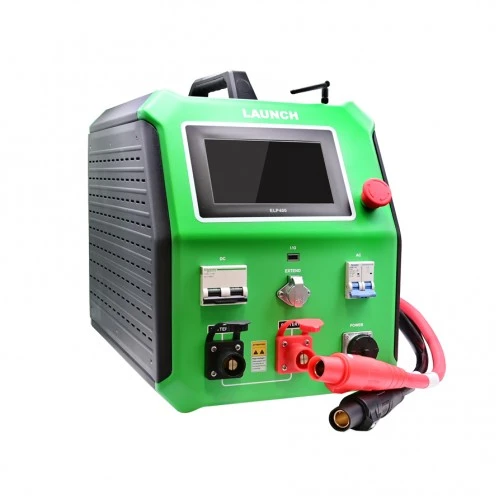

Professional Charger And Discharger ELP400
The Launch EV ELP400 is a professional battery charging and discharging device based on the latest technology. It is optimised for the specific characteristics of lead-acid and lithium-iron batteries and offers a range of test and maintenance functions. These are suitable for a wide range of applications, including discharge, charge, and cyclic charge and discharge tests suitable for various lead-acid and lithium-iron batteries available on the market.

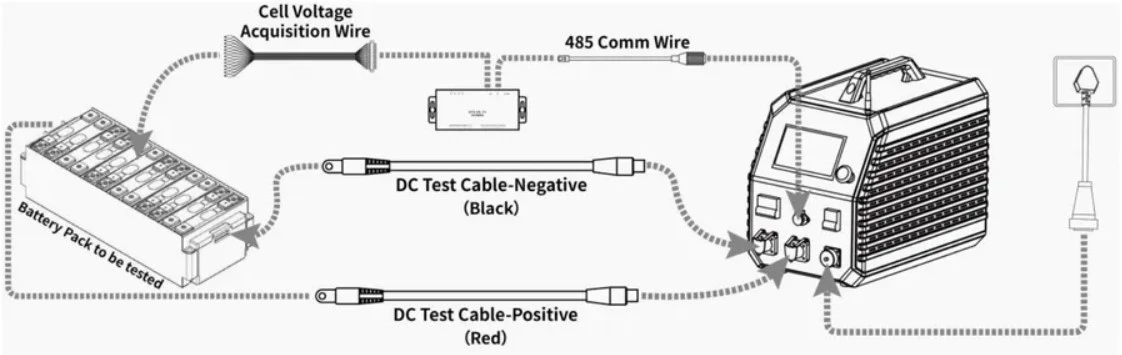

Working diagram
Diversified setting possibilities
It allows you to set the total charge time, constant voltage time, charge capacity and charge current. This allows you to vary the charge current.
Operating rules
Free charge and discharge rules can be set, as well as activation times, to ensure and improve battery capacity.
Highest/lowest voltage detection
It supports the acquisition of high/low voltage, temperature and other data from a single battery string.
The data is displayed on the screen in the form of a bar graph, a report and a graph that can be zoomed in/out locally for easy viewing.
High-quality materials
High-quality original aeronautical materials, combined with modern and advanced control technology, are used to ensure smooth operation.
Alarm conditions
Set various alarm conditions for abnormal voltage, current and temperature to allow early intervention to ensure the safety of the for early intervention and ensure the safety of the battery and the unit.
Safety functions
The ELP400 has various protection functions such as overvoltage, undervoltage, overcurrent, short circuit, reverse polarity and overtemperature protection, overvoltage, undercurrent, output short circuit, reverse polarity and overtemperature protection, all of which contribute to the safety of the operator.

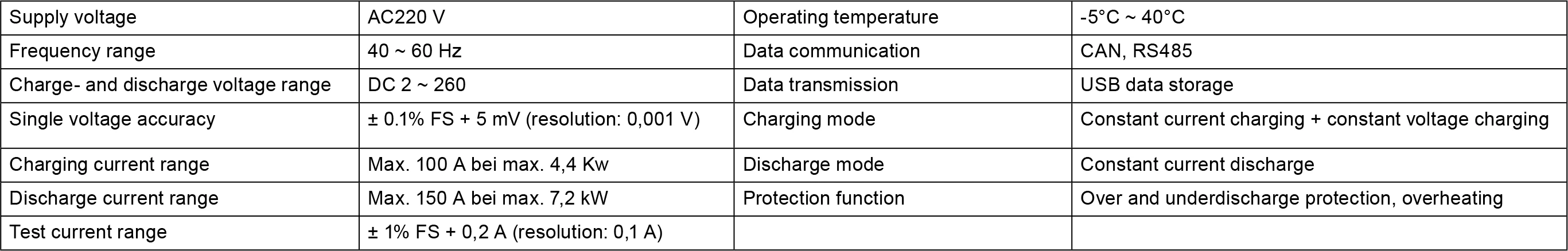

Technical Profile
Charging and Discharging Performance
max. 600 W
Battery Interface
16 Pin, 24 Pin
Channels
2 x 12
Display
7” LCD
Communication
WLAN, Bluetooth
