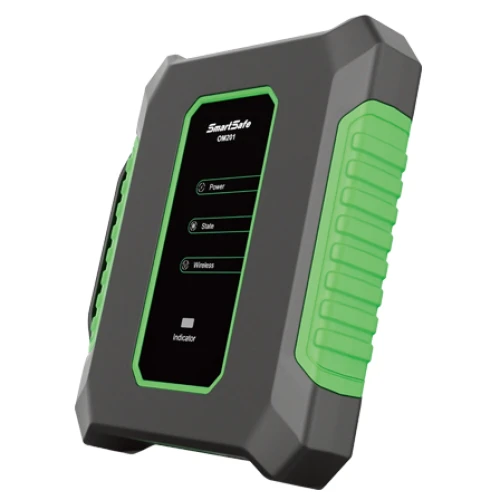

OM201 Two-Channel Oscilloscope And Multimeter | SmartSafe

OM201 Two-Channel Oscilloscope And Multimeter | SmartSafe
OM201 Two-Channel Oscilloscope And Multimeter | SmartSafe
  • OM201 is a professional measurement tool for EVs that integrates multimeter and two-channel oscilloscope.

trust-pilot-reviews

Price:
267.75€
  • : In Stock! Estimated Delivery Time: 2-4 Days
  • Brand: SmartSafe
  • Model: OM201



OM201 Two-Channel Oscilloscope And Multimeter

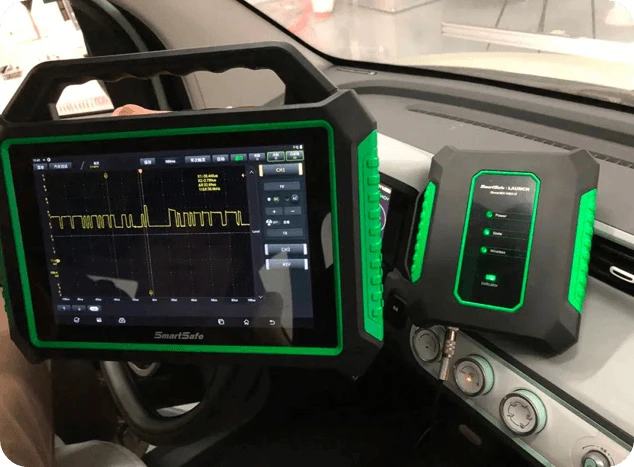

OM201 is newly launched by SmartSafe. It is an oscilloscope with multimeter, which has the functions of both oscilloscope vs multimeter. It is suitable for current, voltage and resistance measurement of electric vehicles. Used with P01, it supports both wireless and wired communication methods, and is easy to operate. It is the first choice for car repair shop personnel.



Features

  • Integrating the functions of multimeter and dual-channel oscilloscope, one machine with multiple functions
  • Provide 3 measurement functions, including manual, tracking, automatic cursor
  • Waveform diagrams can be saved locally and viewed at any time
  • Support both wired and wireless communication methods (can be used with P01)



Functions

  • Dual-channel Oscilloscope: Supports automatic measurement of 6 parameters, automotive testing, waveform recording and playback.
  • Multimeter: Support DC/AC voltage, current measurement, resistance measurement, diode measurement, on-off measurement.



Frequently Asked Questions

Do you offer international shipping for your products?
How can I pay for my order on Balticdiag.com?

Battery 3100 mAh/3.8 V
Dimension 160×195×42mm
Oscilloscope
No. of Channels 2
Bandwidt 10 MHz
Maximum Real-time Sampling Rate 100 Mbps
Time Base Range 1us/div~10s/div, step by 1~2~5 times
Sampling Methods Common, peak value detection, average
Input Coupling DC, AC, and ground
Input Impedance 1MΩ±2%, parallel with 15pF±5pF
Input Capacitance 20 pF Max
Automatic Measurement Peak-peak, value, average...
Multimeter
DC Voltage ±600 V
AC Voltage ±600 V
DC ±10 A
AC ±10 A
Resistance 0~6MΩ
Diode 0~2.0 V
Continuity Buzz when less than 50Ω
