P01 EV Detection Tool | Electric Vehicle (EV) Diagnostic Tool | SmartSafe

P01 EV Detection Tool | Electric Vehicle (EV) Diagnostic Tool | SmartSafe
3 YEARS OF LICENSE
P01 EV Detection Tool | Electric Vehicle (EV) Diagnostic Tool | SmartSafe
  • P01 is a professional detection level EV diagnostic tool that integrates battery pack diagnostic, whole vehicle system diagnostic, and common maintenance functions.
  • Included 3 years of license/updates and 1 year of warranty

trust-pilot-reviews

UPS-FEDEX-EXPRESS DELIVERY

Price:
1,598.86€
  • : In Stock! Estimated Delivery Time: 2-4 Days
  • Brand: SmartSafe
  • Model: P01

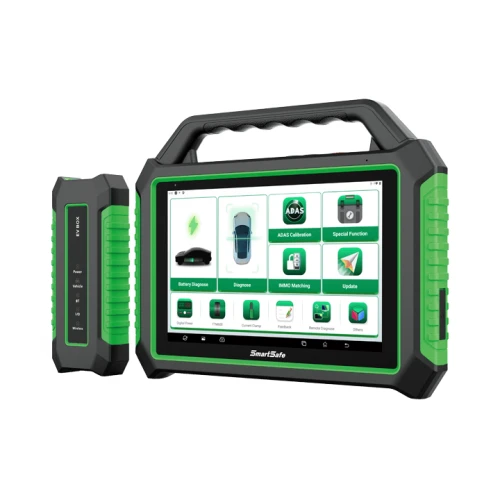

SmartSafe P01 Diagnostic Tool

Included 3 years of license/updates and 1 year of warranty



The SmartSafe P01 is a professional electric vehicle diagnostic tool and battery inspection system designed for workshops and electric vehicle (EV) service centers that need dealer level diagnostics and advanced battery pack evaluation in a single device. Built around a 10.1 inch Android tablet combined with a powerful Vehicle Communication Interface (VCI), it delivers full system diagnostics, deep battery pack analysis, live data monitoring, fault code functions and active tests across a wide range of electric, hybrid electric (HEV) and plug in hybrid electric (PHEV) vehicles. With WiFi and Bluetooth connectivity, broad vehicle coverage and support for optional expansion modules including an oscilloscope and insulation tester, the P01 is one of the most complete full system diagnostic scanners available for professional EV service today.



Cover more than 95% of the whole system of EVs, and keep updating

Supports testing of DC/DC converter, onboard charger, high-voltage distribution box, and other common maintenance functions

Provide four battery pack connection methods, including OBD, special connector, jumper connection and fast charging port connection

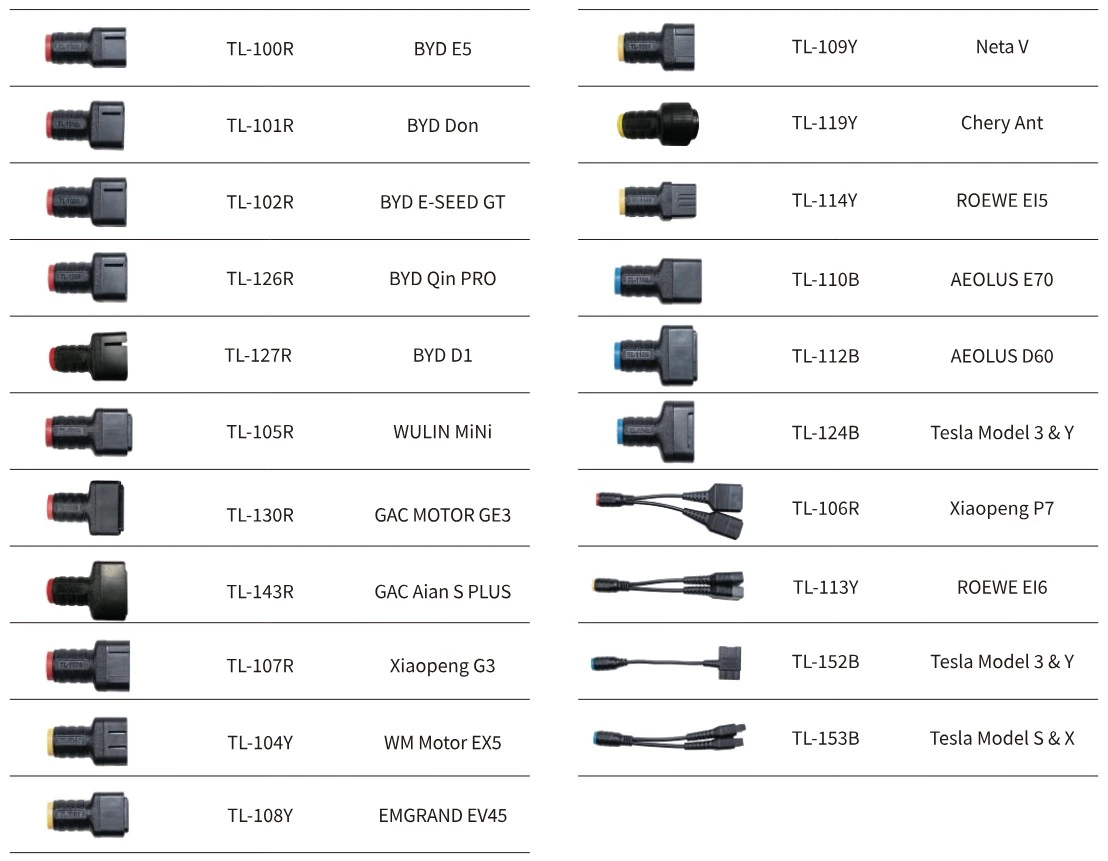

Equipped with battery pack professional connector as standard and integrated aviation plug connector to improve detection efficiency

Support ADAS calibration, tread detection, insulation tester, oscilloscope, digital power supply, multimeter, current clamp, videoscope and other expansion modules

Dual WIFI design, the host is connected to the VCI with independent WIFI, and the VCI does not affect the host to access the Internet when it is working

Provide the whole vehicle topological graph, clearly display the vehicle communication network, and quickly locate the fault point







Four Battery Pack Detection Methods

Supporting specialized adapter connection, quick charging port connection (Only for Chinese models), jumper connection, and OBD connection, these four methods offer users a broader range of choices.



Functions

  • Battery pack detection: Reads state of charge (SOC), state of health (SOH), individual cell and module voltages, temperature data and battery pack status and fault information across a wide range of passenger car and commercial vehicle battery brands. Total voltage and differential pressure are calculated automatically, with the highest and lowest voltage values clearly highlighted and abnormal data marked for immediate attention. This makes the P01 one of the most capable EV battery diagnostic tools available for professional battery pack evaluation.
  • Full system vehicle diagnostics: Supports complete system and full function detection of electric vehicles including fault code reading and clearing, live data stream monitoring, action testing and special functions, delivering comprehensive electric vehicle diagnostics across all major vehicle systems.
  • Fast charging port detection: Connects a fast charging detection gun via Bluetooth to read battery pack data directly through the vehicle fast charging port, enabling quick and convenient battery pack assessment without the need for additional connections.
  • Maintenance functions: Supports offline testing of DC-DC converters, on board chargers (OBC), air conditioning compressors and 48V light hybrid components, along with 30 or more common special maintenance functions covering a broad range of EV service requirements.
  • ADAS calibration: Supports advanced driver assistance system (ADAS) calibration for a wide range of European, American, Asian and Chinese vehicle models, compatible with ADAS PRO+, ADAS MOBILE, ADAS LITE and ADAS RADAR 3IN1 equipment.
  • Test reports: Generates detailed battery pack test reports, vehicle diagnostic reports and ADAS calibration reports, supporting professional documentation and customer handover at every stage of the service process.
  • Module expansion: Supports a wide range of optional functional expansions including tread detection, digital power supply, oscilloscope, multimeter, current clamp, insulation tester and endoscope, making the P01 a truly scalable electric car diagnostic platform for growing workshops.
  • Software upgrades: Supports online updates for vehicle model software, firmware and application software, keeping the device current with the latest vehicle coverage and diagnostic functions throughout the licence period.

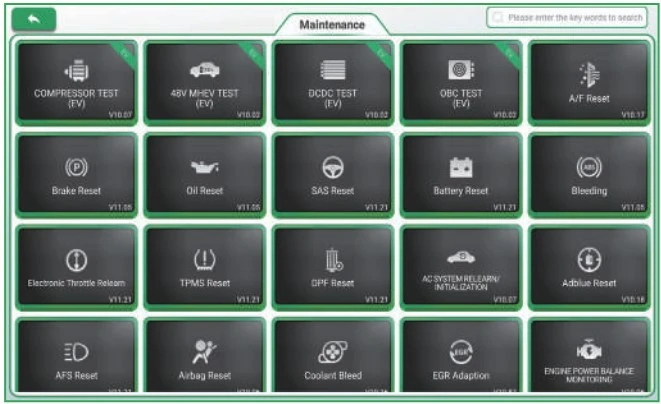

Supports offline testing capability

Supports offline testing for components like air conditioning complressors, onboard chargers (OBC), DC-DC converters and 48V mild hybrid components.

Topological graph for quick fault localization

Provide the whole vehicle topological graph, clearly display the vehicle communication network, and quickly locate the fault point

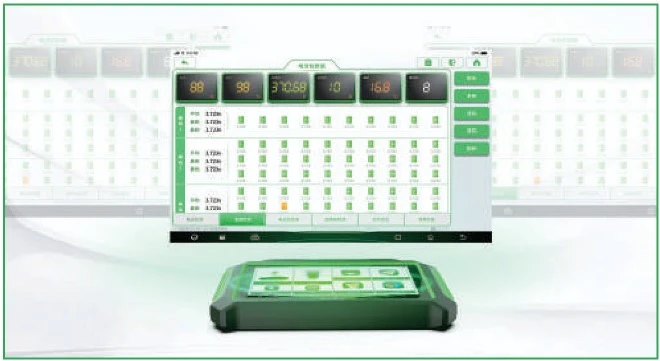

Dedicated Battery Pack Testing Software

Built-in dedicated battery pack testing software, supports battery pack testing based on car brand or battery manufacturer, allowing users to access battery pack testing functions more quickly.

Coverage for Over 95% of EV Models

Currently, it covers battery pack testing and full-system testing for over 95% of EV brands, with ongoing updates.



Fully localized for global workshops, the P01 operates in 10 languages: Simplified Chinese, Traditional Chinese, English, French, Italian, German, Japanese, Korean, Spanish and Russian.

Frequently Asked Questions

Do you offer international shipping for your products?
How can I pay for my order on Balticdiag.com?
What are the main differences between the SmartSafe P01 and P03?

HOST VCI
Display Size 10.1inches(1920x1200) CPU Cortex-A7 + Cortex-M7
CPU 2.0GHz Octa-core Memory 256MB
Memory 4GB Storage 8GB
Storage 128GB System Linux
System Android 11 Display 3.97 inches, resolution 320×480
Wi-Fi 2.4GHz/5GHz Operating Voltage DC 9~36V
Camera Front 8MP, Rear 13MP Wi-Fi 2.4GHz/5GHz dual frequency
Battery 3.8V/9360mAH Interface USB Type B, OBDⅡ-16, DC-IN
Interface Type A, Type C Communication Local diagnostic modes: Wi-Fi, Bluetooth, USB
Communication Wi-Fi, Bluetooth, USB Dimensions 197×40×83mm
Dimensions 318×40.5×246.5mm
