  • Powerful TEXA diagnostic interface combined with TEXA's software for the bike environments and BALTICDIAG diagnostic laptop.

UPS-FEDEX-EXPRESS DELIVERY

trust-pilot-reviews

Price:
2,599.00€
  • : In Stock! Estimated Delivery Time: 2-4 Days
  • Brand: TEXA
  • Model: TXTBIKE

Available Options



The best of Diagnostics in a single solution

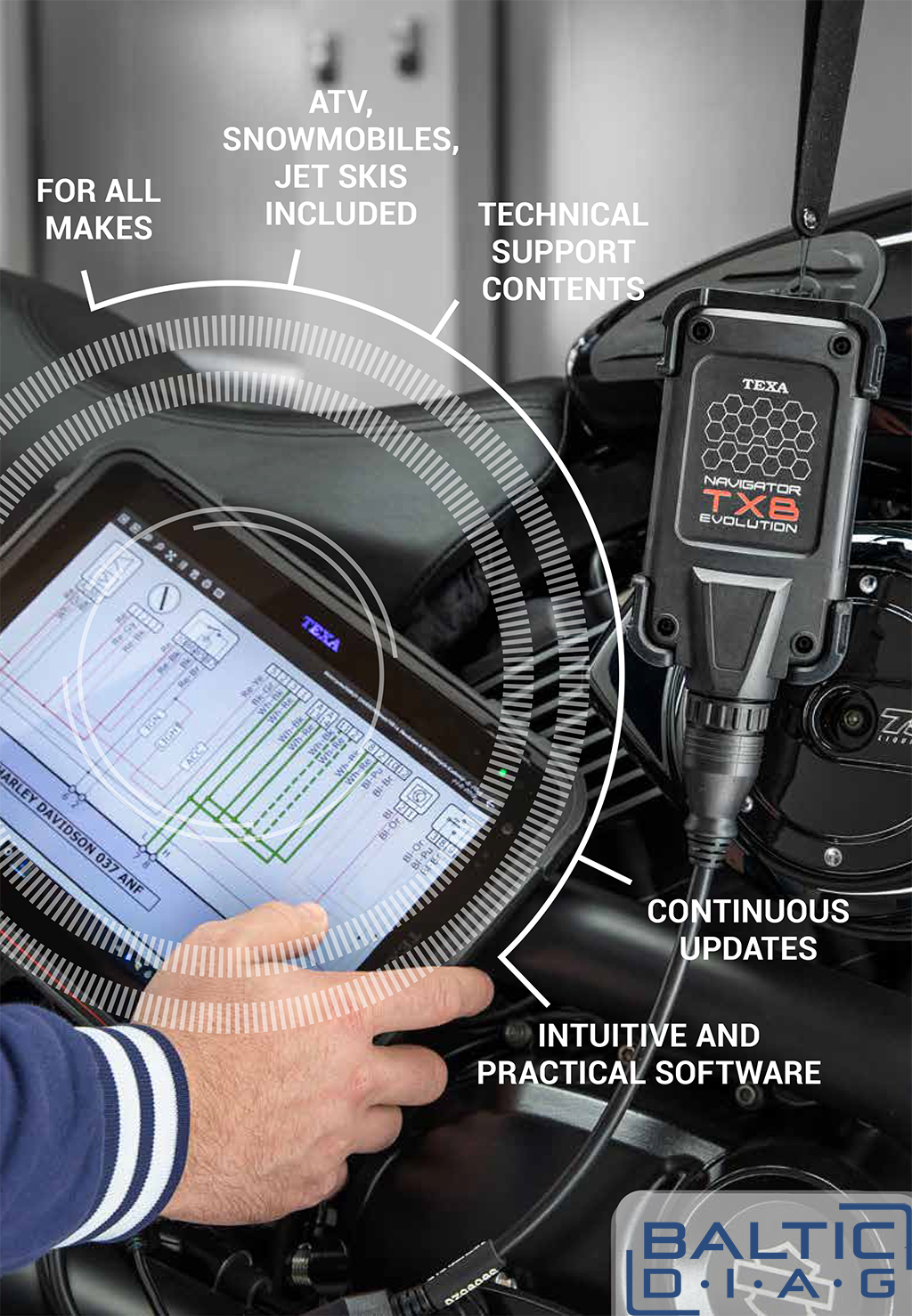

NAVIGATOR TXB Evolution is the new tool that TEXA designed and developed specifically for the  bike diagnosis environments.

Its hardware features make it compatible with all the current protocols for both environments and its integrated 16-pin CPC connector allows the use of all the diagnostic cables. It is extremely powerful, equipped with a 16 MBit SRAM and an 8 GBit NAND FLASH storage memory; these are very important features as they allow the mechanic to manage the map files easily.

The supported CAN standards include the CAN single wire management and an extra CAN controller for the diagnosis on more than one network.

TEXA’s diagnostic solution for the BIKE diagnostic environment consists in AXONE NEMO 2, quick and powerful display unit, and NAVIGATOR TXB Evolution or NAVIGATOR TXTs, very robust vehicle interfaces that are perfect for communicating with every motorcycle. The display unit and the vehicle interface interconnect via Bluetooth and communicate with the vehicle’s electronic control units, guaranteeing levels of speed and performance that are simply unrivalled in the world of multi-brand diagnostics. TEXA also means great ease of use and versatility: in fact, the vehicle interfaces Navigator TXB Evolution and NAVIGATOR TXTs are also compatible with Personal Computers with a Windows operating system.

Special adjustments



The IDC5 software offers a wide range of special adjustments that go beyond the ordinary vehicle servicing, such as:

  • Vehicle configuration change
  • Display setting change - Exhaust valve enabling
  • Key adaptation
  • Anti-theft enabling / disabling
  • Odometer alignment
  • Speed limiter unlock after running-in for S 1000 R (K47), S 1000 XR (K49) and S 1000 RR (K46)
  • 99 HP limitation adjustment
  • Engine ECU reset
  • CO adjustment

Errors





This page instantly displays all the errors in the vehicle, with the related codes and descriptions.

From this page, the error reading and clearing can be carried out in a single click, as well as a self-diagnosis test on the selected system.



Nominal values



Useful to solve a fault associated with an error code detected in self-diagnosis. They provide a tree diagram to solve the fault.



Data sheets



Very accurate information on the selected vehicle, including instructions for performing a manual service reset, overviews of specific mechatronic systems and much more.



Technical data





These sheets provide technical information on the engine and indications on the maintenance plan. Very important to dig into the details of each vehicle: Mechanical Data, Wheel Alignment,  Timing Belt, Scheduled Maintenance, Component Locations.



Interactive wiring diagrams





The animations of the relevant devices create an interactive map with the flow of input and output signals to/from the control units.

Useful for enhanced troubleshooting, through interaction with the various components shown in them.

You can select specific components to identify their cables and their electrical and logical connections to other components on the wiring diagram.

Specialists in multi-brand diagnostics




Electronic injection, engine and helm management, electronic throttle, drivetrain, electronic systems for galvanic corrosion control, engine compartment.

It is unthinkable for a multi-brand workshop to carry out repair interventions on modern bike without the support of valid electronic diagnostics to detect errors, adapt control units, activate components, perform adjustments, reset values.

Having an adequate diagnostic tool is essential in order to remain competitive in bike repair market.

TEXA’s diagnostic tool allows mechanics to solve more faults in less time and with certainty. To improve their service to customers and the workshop’s accounts.


PROCESSOR

CORTEX M3 STM32F103ZG 72 MHz, FLASH 1024 KBytes, SRAM 96 KBytes

SRAM MEMORY

16 MBits organized in 1024K x 16 bits

NAND FLASH MEMORY

8 GBit on an 8-bit bus

VEHICLE BATTERY

12VDC and 24VDC system management

EXTERNAL POWER SUPPLY

8 ÷ 32 V

USB COMMUNICATION

virtual RS232 via USB 2.0 Device

WIRELESS CONNECTION

Bluetooth class1 (30 m)

ELECTRONIC SWITCH

2-way, 13 independent positions

DIAGNOSTIC CONNECTOR

16-pin CPC

SUPPORTED PROTOCOLS

• Blink codes

• K, L (with current protection 100 mA), ISO9141-2, ISO14230

• CAN ISO11898-2 High Speed

• Second ISO11898-2 CAN Channel

• CAN ISO 11898-3 LOW Speed

• CAN SAE J2411 Single Wire

• SAE J1850 PWM

• SAE J1850 VPW

• SAE J1708

• RS232

VISIBLE WARNING

1 green/red LED, 1 blue LED

12 V CONSUMPTION

< 200 mA

24 V CONSUMPTION

< 100 mA

OPERATING TEMPERATURE

0 ÷ 50 °C

STORAGE TEMPERATURE

– 20 ÷ 60 °C

OPERATING MOISTURE

10 ÷ 80 % without condensation

REGULATIONS

Directive: 1999/5/CE

SAFETY

EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 + A2:2013

ELECTROMAGNETIC COMPATIBILITY

EN 55022, EN 55024, EN 301 489-1

RADIO SYSTEMS

EN 301 489-17, EN 300 328-2

WEIGHT

215 g

  • D117D0 TEXA TXB Evolution interface
  • P12936 TEXA IDC5 Software Bike
  • S0493C TEXA Bike essential cable case:
    - Bike main cable for ADIVA, APRILIA, DERBI, DUCATI >2010, GILERA, MALAGUTI, MOTO GUZZI, MOTO MORINI, MV AGUSTA>2013, PIAGGIO, VESPA and to use some adapter cables
    - TRIUMPH/VICTORY/OBD cable
    - Generic KAWASAKI cable up to 2010*
    - Generic SUZUKI cable*
    - Generic HONDA cable (3151/AP20)*
    - DUCATI cable from 2010 (3151/AP23)
    - Generic KAWASAKI cable from 2010 (3151/AP31)
    - BMW cable (3151/AP37)
    - KTM/HUSABERG cable (3151/AP39)
    - YAMAHA bike cable (3151/AP59)

Diagnostic tool TEXA is modular solution, that's why our BALTICDIAG team can offer customized solution according to your budget and to your technical requirements. TEXA diagnostic tool's price depends from various components so it is always useful to get advice from BALTICDIAG sales managers. Contact us.
