USB to CAN V2 Professional | RJ-45 | IXXAT | 1.01.0283.22002

Cost-effective and extremely versatile
Common driver interface for easy exchange of the PC interface type
For industrial and automotive applications

Price:

613.00€

: In Stock! Estimated Delivery Time: 2-4 Days
Brand: HMS Industrial Networks
Model: 1.01.0283.22002

Qty

Buy now

Ask Question

Add to Wish List

Description

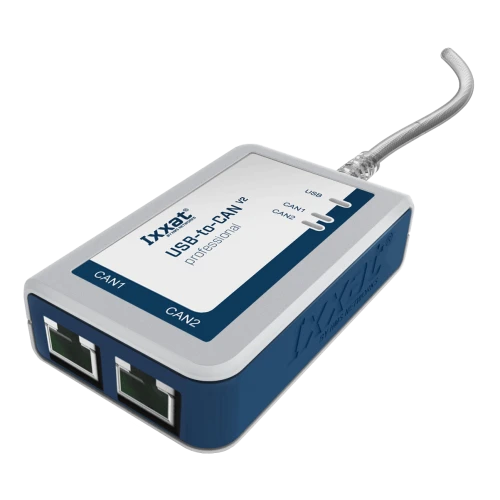

IXXAT USB to CAN V2 Professional

The USB-to-CAN V2 is available in different variants. In the USB-to-CAN V2 compact variant, the CAN connection is implemented as a D-SUB 9 plug or alternatively as an RJ45 connector. For devices with two CAN interfaces, these are implemented as RJ45 connectors. Adapter cables to sub-D9 plugs are included with the devices.

The IXXAT USB-to-CAN V2 embedded is designed without a housing, with or without a slot board and adapted USB cable for installation into a computer.

Additional options include galvanically isolated CAN interfaces, bulk variants, and support for ISO 11898-3 low-speed CAN and LIN.

By using powerful hardware and connecting over USB 2.0 Hi-Speed (480 MBit/sec), the USB-to-CAN V2 interfaces achieve very high data throughput with minimum latency and low power consumption. This allows them to provide the reliable, loss-free transmission and receipt of messages in CAN networks at high transmission rates and bus load. The messages are also timestamped and can be filtered and buffered directly in the USB-to-CAN V2.

Due to its extremely interesting price and compact size, the USB-to-CAN V2 interface is ideal for use in series products and in combination with the canAnalyser for development, service, and maintenance tasks.

Its newly developed, rugged housing permits easy customer-specific adaptation (custom design / brand labeling).

TECHNICAL SPECIFICATIONS

PC bus interface	USB 2.0, Hi-Speed
Microcontroller	32 bit
CAN controller	Internal; CAN 2.0 A/B
CAN baudrates	10 kBit/s ... 1 Mbit/s
CAN high-speed transceiver	TI SN65HVD251D
Galvanic isolation	optional, 1 kV, 1 sec.
Power supply	5 V, max. 500 mA via USB port
Temperature range	-20°C ... 70°C
Fieldbus connection	according to CiA 303-1
Certification	CE, EN 55022:2010, EN61000-6-1:2007
