TEXA TRUCK DIAGNOSTICS | TXT MULTIHUB | IDC5 WITH BALTICDIAG LAPTOP
TEXA DIAGNOSTIC TOOL CAN BENEFIT EVERY WORKSHOP
Over the past years, the electronic systems installed on an industrial vehicles have been developing quickly, improving the vehicle's functionality, safety and comfort. That is why today the diagnostic tools is an essential piece of equipment for every vehicle workshop.
Further developments, along with the ability to calculate an increasingly larger number of electronic control units, brought the self-diagnosis to continue evolving, allowing in time not only the possibility to view the errors stored, but also to view the parameters, to check the components and to reprogram the control unit itself.
TEXA diagnostic scanner is always evolving also and is a perfect diagnostic tool to any mechanic.
Every component is extremely high quality that is why your investment in TEXA diagnostic solution is long term also you avoid software or hardware problems in the middle of work.
TEXA Diagnostic tool we offer with MULTIHUB TXT. This interface by TEXA is most powerful. More information about interface you will find below.
Diagnostic tool TEXA is modular solution, that's why our BALTICDIAG team can offer customized solution according your budget and your technical requirements. TEXA diagnostic tool price depends from various components so it is always useful to get advice from BALTICDIAG sales managers.
First we offer basic package and later on you can expand your possibilities by buying additional cables or software subscriptions. Also we can complete and bundle solution which will have best performance - add full bundle of cables, install software with updates subscription and configure everything with Panasonic ToughBook which runs as fast as possible.
TEXA PRESENTS THE NEW TXT MULTIHUB
The innovative tool is the top of the range in the field of multi-environment vehicle interfaces. It manages different communication protocols, in a versatile, fast and intuitive way, in every situation. Equipped with integrated display and Linux operating system for smart connectivity.

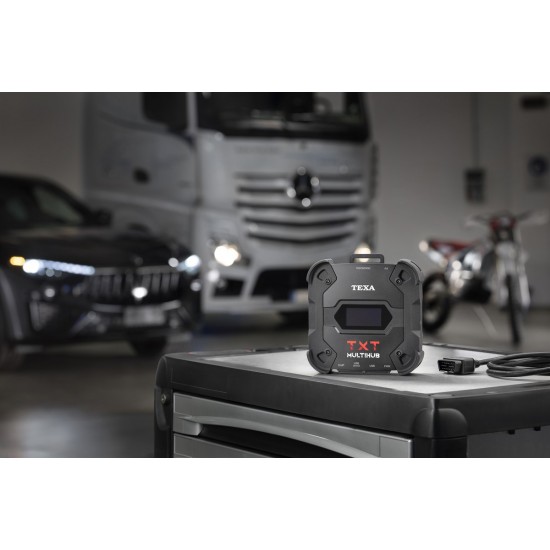

In recent years, the diffusion of electronics on board vehicles has been exponential and has reached a very high level of complexity. Today repair specialists must be capable of working at their best on different types of vehicles, with different diagnostic protocols and multiple connection modes. In such a context, TEXA developed TXT MULTIHUB, an extremely versatile vehicle interface that easily adapts to maintenance activities making them quick and intuitive, in any situation. It is a technologically advanced solution, rich in unique technical and constructive features, such as: the presence of a built-in display, the IP53 certified rugged design, an intelligent connectivity guaranteed by the Linux operating system, the management of CAN FD, DoIP, Pass-Thru protocols. TXT MULTIHUB is the only diagnostic tool capable of intervening on cars, heavy-duty vehicles, motorcycles, boats, agricultural and construction vehicles.
TXT MULTIHUB is equipped with a practical backlit display that gives it great usability and the possibility to view the information based on three types of messages: communication mode with the display unit, charging voltage of the battery in the vehicle it is connected to, operating status that can be standard diagnosis, DoIP Wi-Fi, DoIP Ethernet, Pass-Thru.
Furthermore, it allows having constant control on the tool’s operation: it reproduces more than 40 messages that provide technicians with all the information they need during diagnostic operations.
TXT MULTIHUB is equipped with a special reinforced body with anti-shock corners. Its certified protection level is IP53, therefore it resists splashes of water and dust. Furthermore, the military standard MIL-STD 810G transit drop test allows it to absorb impacts and falls. All these features allow the tool to give its best in any operating situation.
TXT MULTIHUB is also very handy and nice to see thanks to its special “rugged design” and to the aesthetic care it was built with.
A true MULTIHUB connectivity
The interface uses an advanced connectivity; it allows mechanics to work on any type of vehicle that enters the workshop with great flexibility and rapidity. The tool communicates with the display unit through: a Wi-Fi module for the diagnostic operations that use standard CAN, CAN FD and DoIP; a network cable (Ethernet) reserved for DoIP operations (ISO 13400); a Bluetooth module for conventional diagnoses; a USB socket for all types of diagnosis, including the Pass-Thru (SAE J2534-1 and SAE J2534-2).
TXT MULTIHUB is equipped with the Linux operating system that gives it great usability and the possibility to evolve, adapting without problems to new future functions. Furthermore, Linux improves its IT security and efficiency thanks to the communication in Smart mode: the interface automatically switches the channels based on the workshop dynamics and on the types of diagnosis, and always chooses the best connection available without the mechanic having to intervene.
IDC5 SOFTWARE DIAGNOSIS WITHOUT FRONTIERS
IDC5 is the latest generation of TEXA's renewed operating system and another step forward to assist technicians. Thanks to major improvements in code the new system is faster than ever and guarantees virtually instant communication with vehicle's control units.
The graphic interface of IDC5 is designed to resemble the latest consumer applications, simplifying and making the various steps in maintenance and repair procedures more intuitive. On top of this, all diagnostic pages have been redesigned to give a fuller view of the most relevant information. Another new function allows you view and manage vehicle parameters. These can be displayed in graphic form and can be filtered using text searches or by selecting those specifically required. Even the downloading of updates is faster in the new software. IDC5 is constantly evolving and is open to new technologies that appear in the near future.
SOFTWARE IDC5 - MORE OPPORTUNITIES WITH LESS COMPLEXITY
TEXA's SW environment is designed and implemented to be a practical working tool, useful and intuitive.
TEXA, every day more and more.
Every day a new feature, every day a new challenge. TEXA's developers are committed to releasing improvements and updates on a daily basis, because being up-to-date is an essential requirement.
Even more qualified diagnosis, with an even more intuitive tool
TEXA is constantly analyzing vehicle markets worldwide and increasing its diagnostic coverage, therefore providing subscribed vehicle repairers with the possibility to have a tool that can easily manage a great number of makes, models and systems thanks to software releases and continuous updates. Keep in mind to order software subscription - it is worth a price.
On top of that, the diagnostic adjustments are so thoroughly developed that TEXA's solutions can be compared to the official make-specific testers. TEXA is well aware that mechanics need an easy-to-use tool, which is why its team develops wiring diagrams on a daily basis, making them uniform and easy to understand for retained mechanics.
As a forerunner in the world of diagnosis on a futuristic level, TEXA has developed DASHBOARDS that allow mechanics to have an immediate, dynamic view of the selected parameters.
Moreover, TEXA has developed customer management, the software that allows vehicle repairers to manage all customer data in a built-in-solution.
- Truck troubleshooting one-click solution
- Truck wiring diagrams
- Special adjustments
