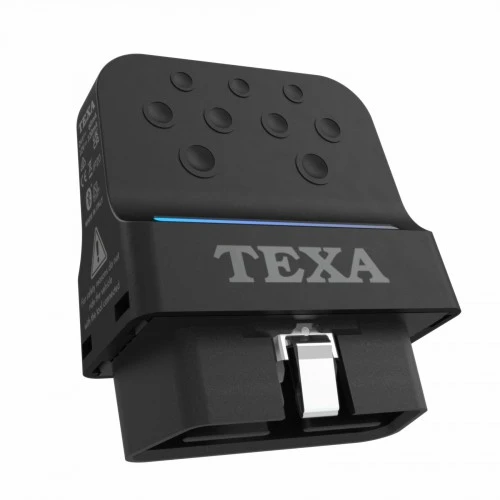

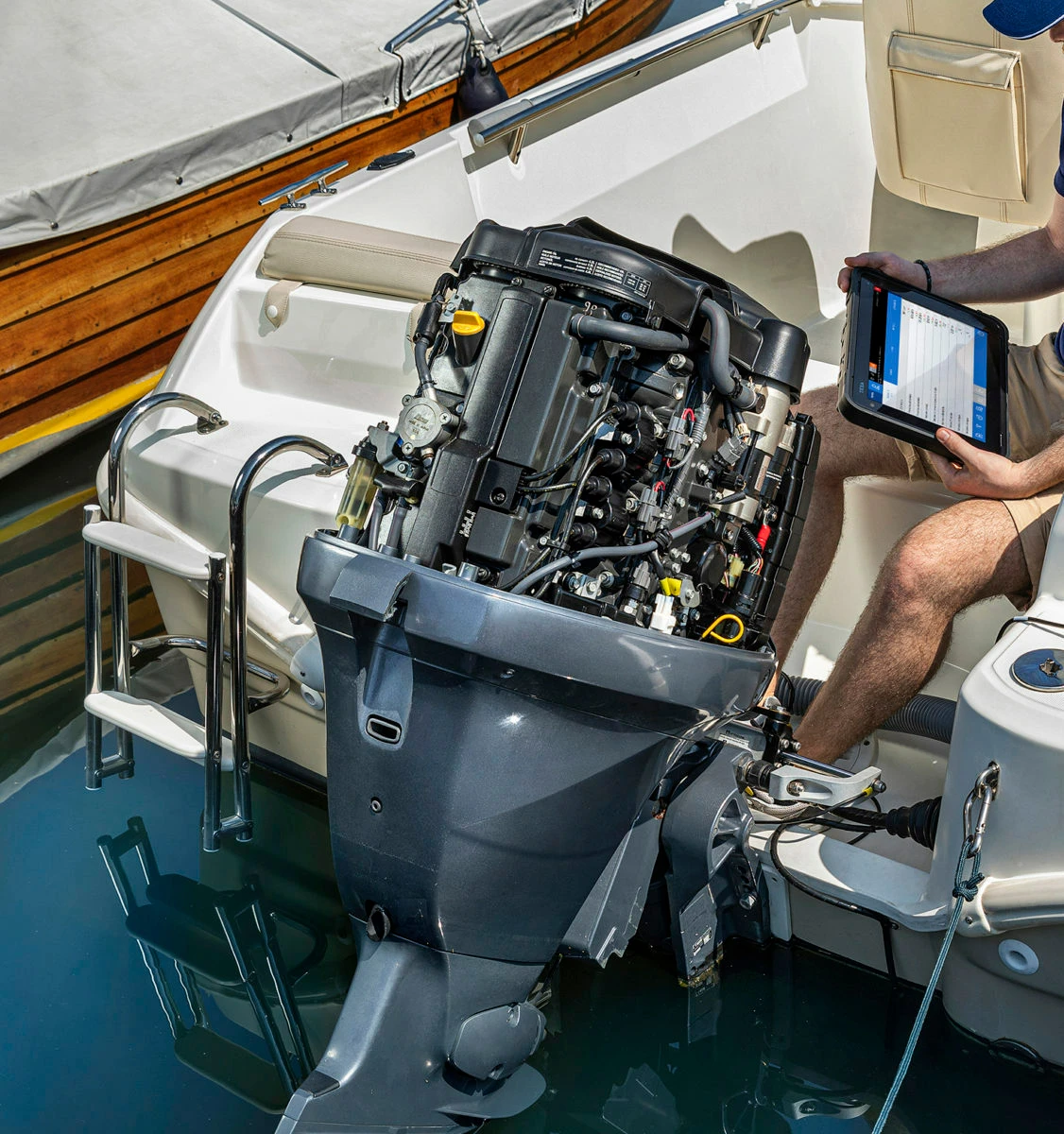

A diagnostic interface dedicated to the diagnosis on outboard engines and personal watercrafts (Jet Skis and Sea-Doos).
Its design aims at ensuring compatibility with a wide range of engines, offering a versatile and flexible solution for the repair and maintenance needs of specialised technicians. Lastly, it integrates an advanced technology that allows recording the diagnostic tests also while moving.

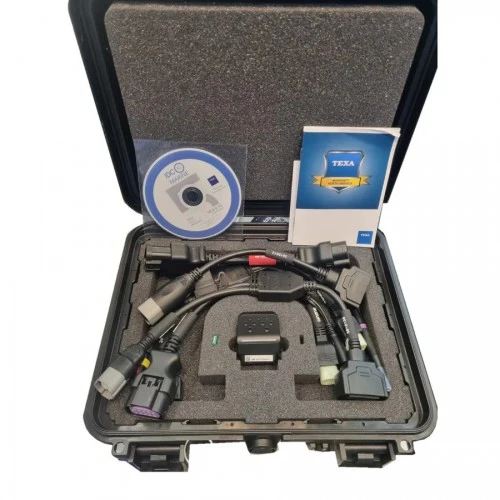

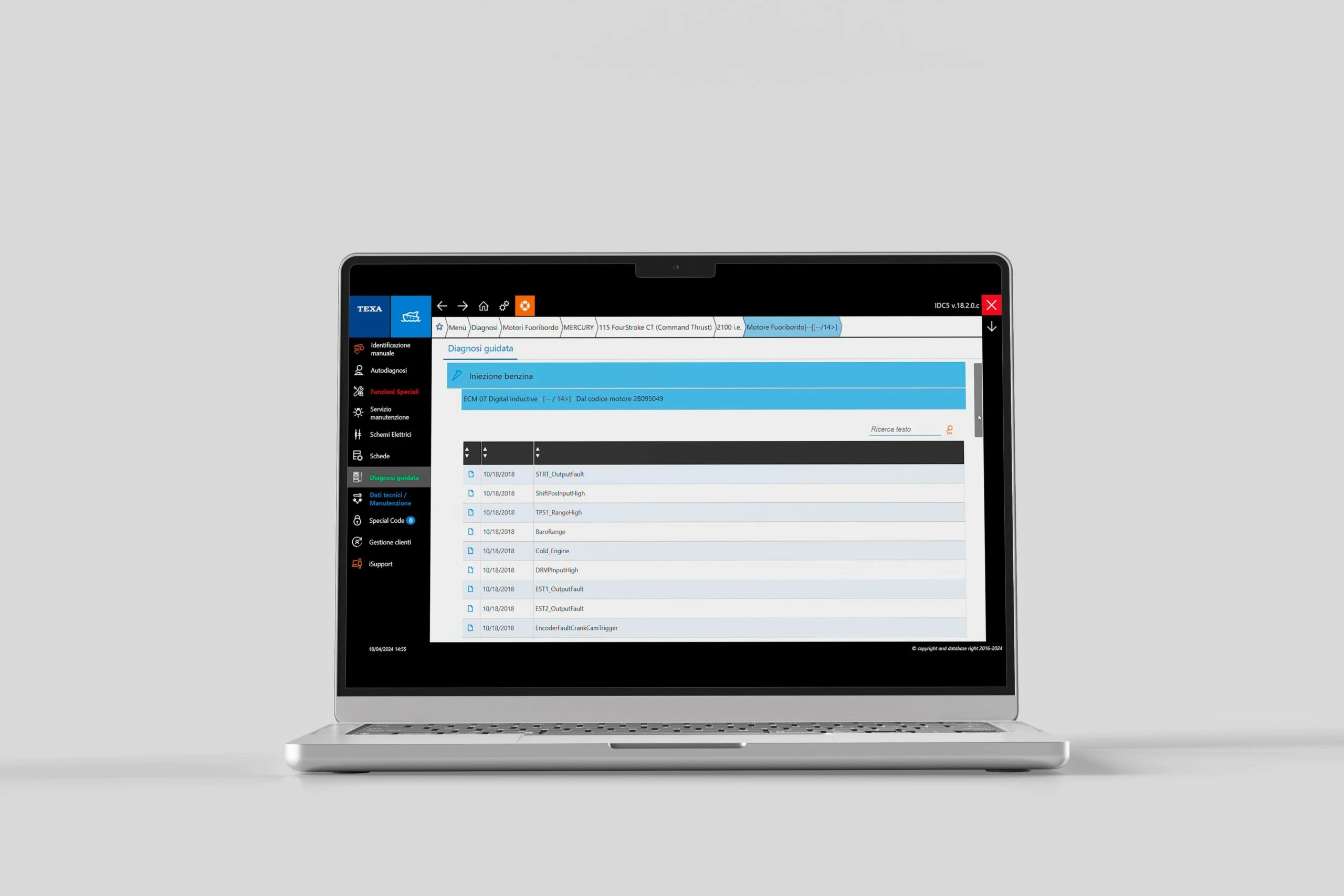

TXB ZERO is supplied in a handy case that contains the necessary cables to operate on the many outboard motors and jet skis present in the IDC5 MARINE diagnostic software, specially developed for this tool and rich in technical data, interactive electrical diagrams, technical sheets, nominal values associated with errors, and much more.
Outboard engine:
PWC Personal Watercraft (Jet Skis and Sea-Doos):
Yes, we offer fast and free international express shipping for all products available at Balticdiag.com. We deliver worldwide — including USA, Europe, North America, South America, Asia, Africa, and Australia — using trusted courier services like DHL, UPS, and FedEx. Every order is shipped with express delivery straight to your door, ensuring quick and secure arrival. Shipping fees are included in the product price, and we provide full tracking information for each shipment so you can follow your package from dispatch to delivery.
We accept a wide range of secure global and local payment methods, including:
MODEL | NAVIGATOR TXB Zero |
MANUFACTURER | TEXA S.p.A. |
PROCESSOR | ARM Cortex M4 (STM32F439ZIY6) |
MEMORY |
|
VEHICLE BATTERY | 12Vdc and 24Vdc system management |
EXTERNAL POWER SUPPLY | 12 / 24 Vdc |
WIRELESS CONNECTION | Bluetooth Classic (2.1) |
OPERATIONAL BAND | 2400 – 2483.5 MHz |
MAXIMUM RADIO FREQUENCY POWER TRANSMITTED | 4 dBm |
DIAGNOSTIC CONNECTOR | OBD ISO15031-03 for 24 V systems |
SUPPORTED AUTOMOTIVE BUS TYPES |
|
VISIBLE WARNINGS |
|
12 V CONSUMPTION | < 120 mA |
24 V CONSUMPTION | < 60 mA |
OPERATING TEMPERATURE | 0 ÷ 50 °C |
STORAGE TEMPERATURE | – 20 ÷ 60 °C |
OPERATING MOISTURE EXERCISE | 10% ÷ 80% without condensation |
WEIGHT | 15 g |

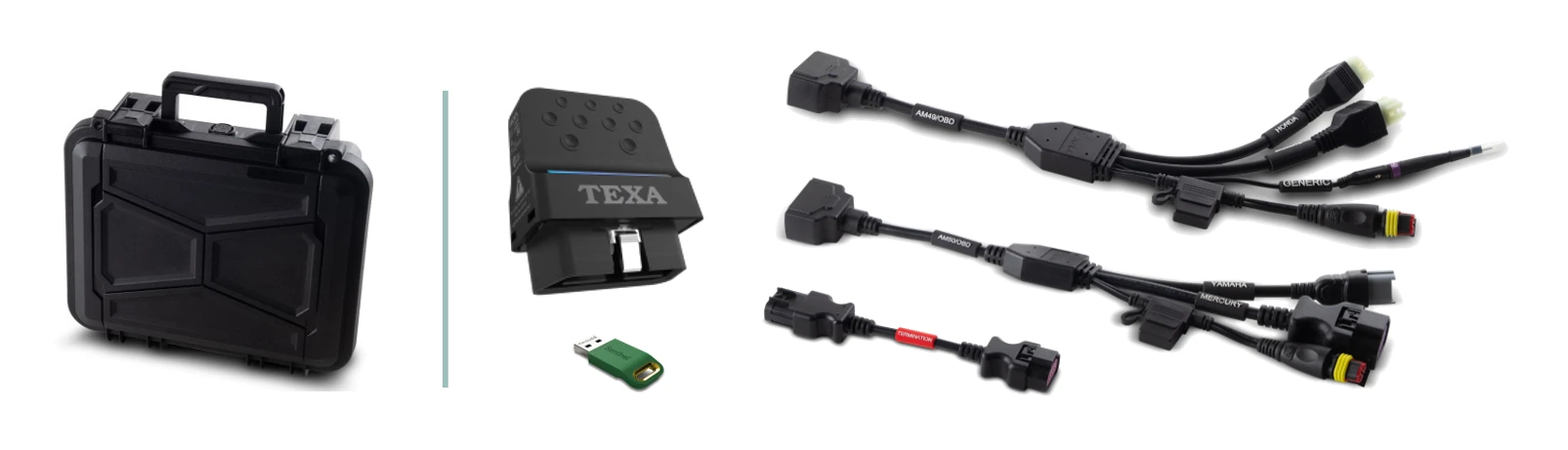

- Navigator TXB Zero interface
- SW IDC5 MARINE
- Case and Cables
