Smoke Leak Detector SML500 | AUTOOL
New
Pre-Order

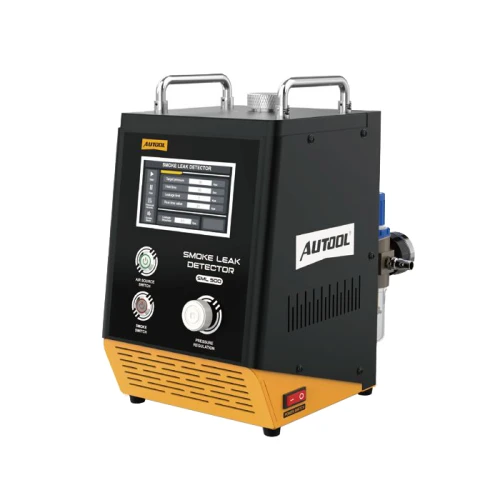

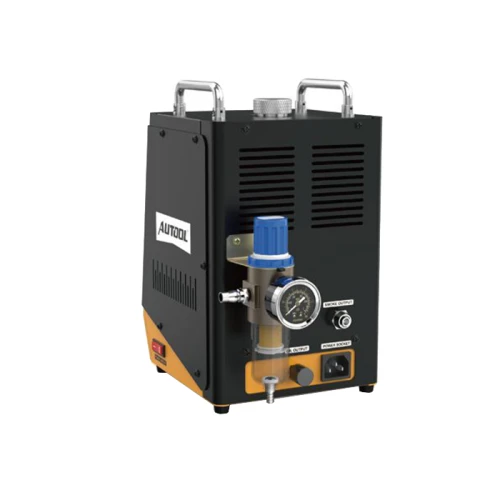

Smoke Leak Detector SML500 | AUTOOL
- The AUTOOL SML500 Automotive Smoke Leak Detector uses intelligent pressure and temperature control to generate consistent smoke for fast, accurate detection of leaks in vehicle pipeline systems.
Price:
0.00€
- : Pre-Order
- Brand: Autool
- Model: SML500
AUTOOL SML500
The AUTOOL SML500 Automotive Smoke Leak Detector is primarily used to inspect the tightness of various parts of a car, providing visual identification of any leakage issues. It features a newly designed intelligent pressure control and temperature protection system, ensuring a continuous output of stronger and more consistent smoke. This saves users time and improves efficiency, serving as a helpful tool and reliable assistant for quickly and accurately determining whether faults are caused by pipe leaks in vehicle pipeline systems.
APPLICATIONS
Features
- Two Testing Modes: Pressure Holding Mode/Smoke Leak Detection Mode, catering to different pipeline system needs.
- Pressure holding leak detection displays the judgment result (Test Passed/Threshold Exceeded) and supports testing the leakage of various pipeline systems, including automotive intake systems, EVAP systems, exhaust systems, crankcase systems, and engines.
- HD LCD display with touchscreen control, providing accurate numerical readings and reliable testing results.
- Supports pressure holding tests up to 500 kPa, with the ability to set the pressure target value within the 0-500 kPa range.
- Operates on a 220V power supply with an external air source, suitable for various working environments.
- Overheat Protection: Prevents dry burning with an alarm indicator light. Automatically stops operation if the temperature exceeds 75°C.
- Large Smoke Output Volume: Generates smoke within 5 seconds; working pressure can exceed 1 bar, with a smoke flow rate ≤6L/min. Can produce a large amount of smoke within 30 seconds to locate leaks.
- Smoke Flow Meter Window: Allows adjustment of the smoke flow rate through a rotary knob.
- Oil Drain Valve: Recovers residual smoke oil after use, promoting environmental friendliness and enabling reuse of test oil.
