SDT101 | Autool | Smoke Leak Detector Machine For EVAP System
-25 %
SDT101 | Autool | Smoke Leak Detector Machine For EVAP System
- Fast smoke output
- Compact and portable design
- Overheat and anti-freeze protection
- Wide Range of Applications
Price:
123.14€
164.46€
- : In Stock! Estimated Delivery Time: 2-4 Days
- Brand: Autool
- Model: SDT101

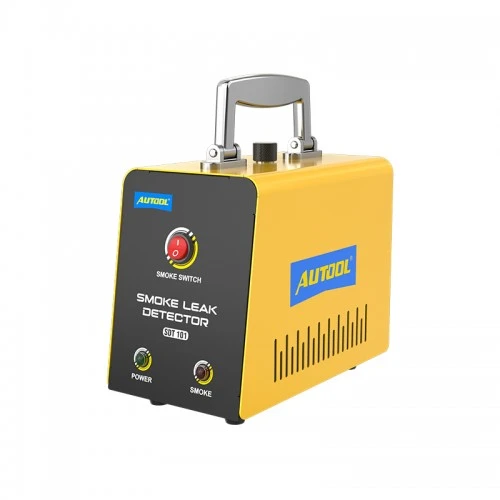

Smoke Leak Detector Machine SDT101
AUTOOL SDT101 Smoke Leak Detector Machine delivers the standard 32-bar test pressure required for automotive EVAP systems by precisely regulating the pressure from an external air source. It can quickly output smoke in less than ten seconds, greatly improving your work efficiency. It is one of the necessary maintenance and inspection tools in your workshop.
Features
- Fast smoke output: smoke output within ten seconds, greatly improving your efficiency in the test.

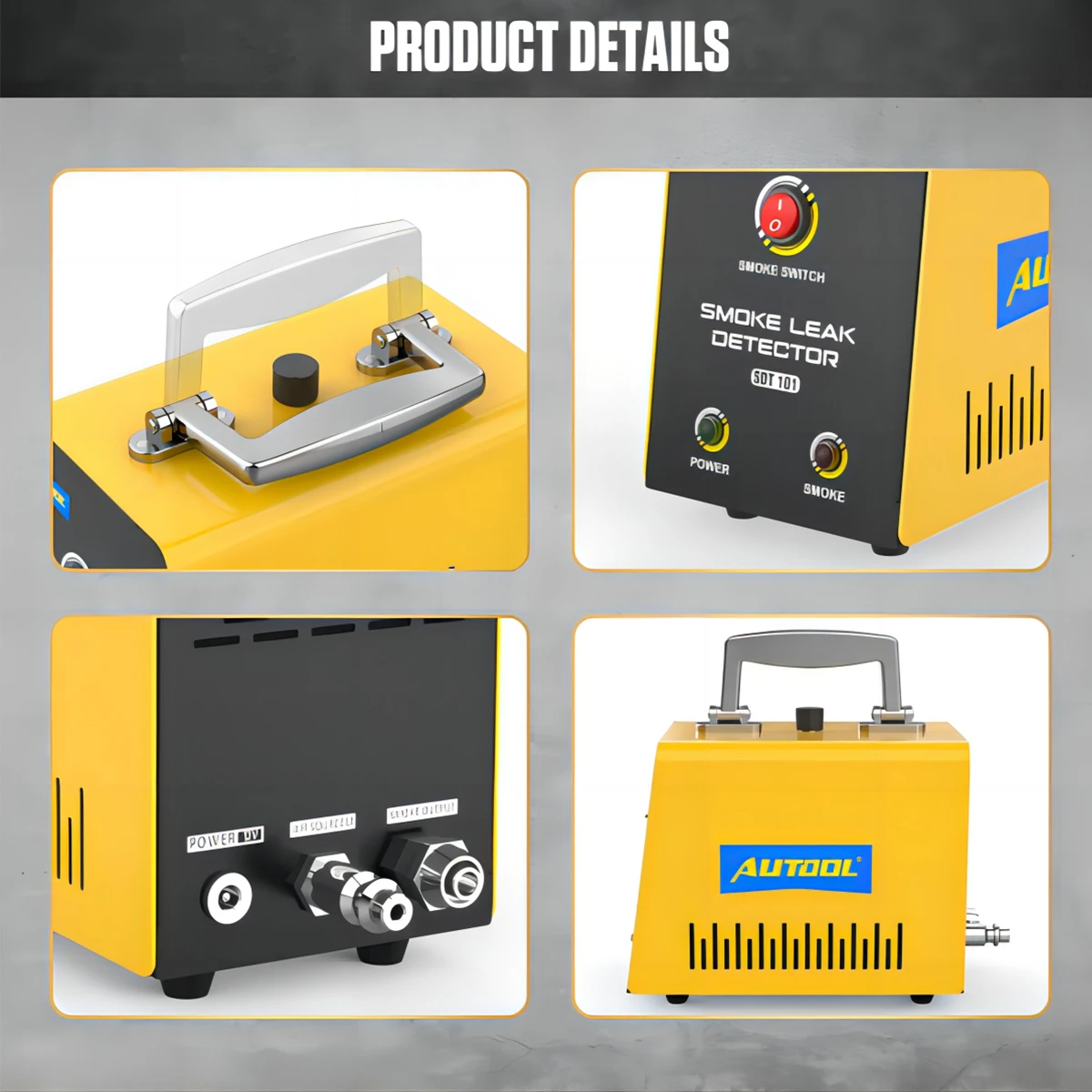

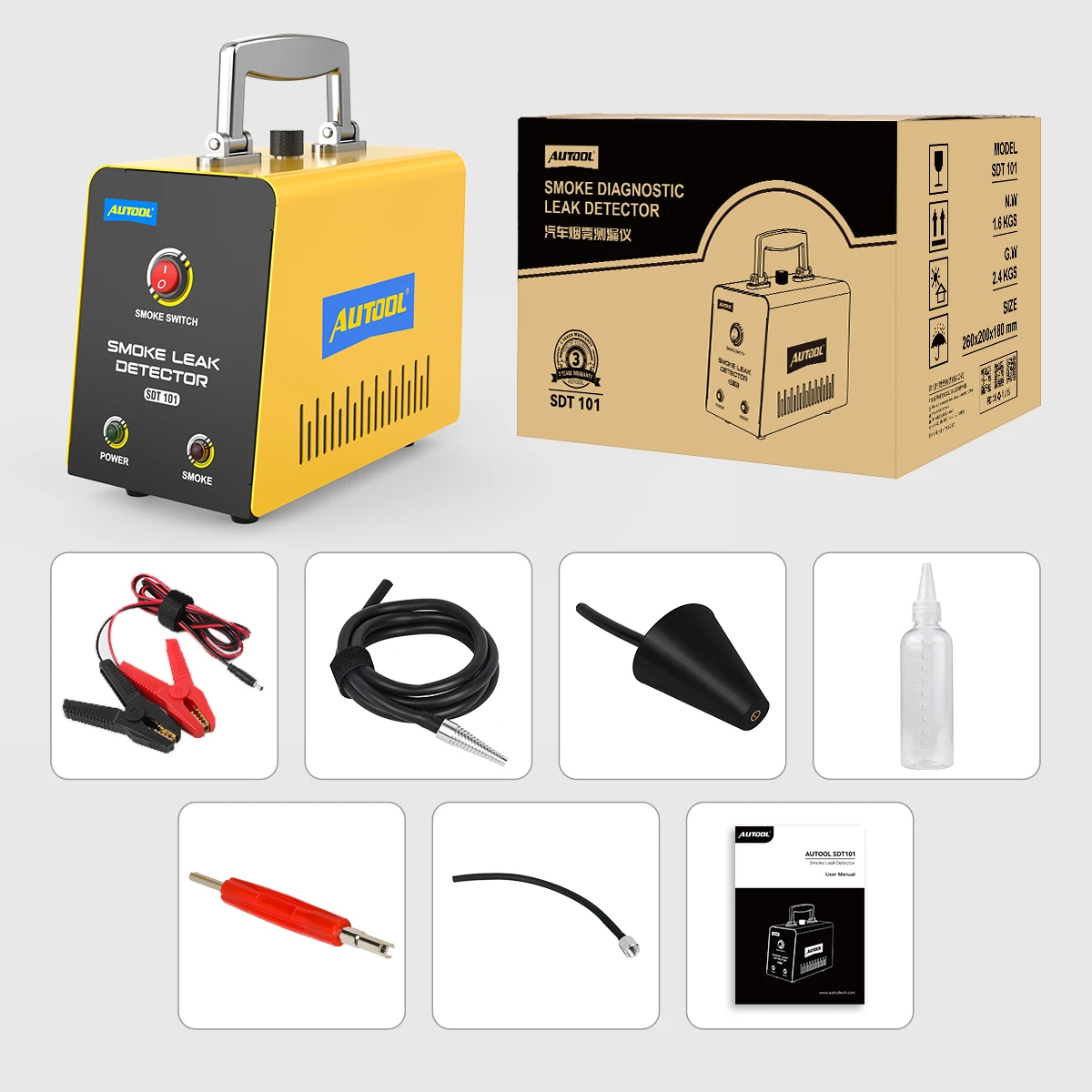

- Compact and portable design: Most of the smoke leak detectors on the market are large in size and not easy to transport and store, Autool designed this smoke leak detector to help you solve this problem, not only is it small in size and light in weight, but also easy to carry. The handle design and cone adapter, airbag adapter, etc. can be adapted to most air inlets, which is an indispensable tool for you.
- Overheat and anti-freeze protection: The Autool SDT101 Smoke Detector Machine is equipped with the latest intelligent protection devices. When the temperature exceeds 75℃ the protection device will only activate and shut down the power supply to protect the operator and the equipment. Not only is it protected against high temperatures, but it is also suitable for low-temperature operation.
- No Air Pump: Connect shop air supply, connect 12V vehicle power, introduce shop air to the AUTOOL SDT103 fuel leak tester, turn the Flow Dial anti-clockwise to open the airflow, switch on the power at the back of the unit, then AUTOOL SDT103 smoke machine automotive will start to generate smoke.
- Wide Range of Applications: The AUTOOL SDT101 Smoke Leak Detector is suitable for detecting leaks in automobiles, motorcycles, snowmobiles, ATVs, ATVs, light trucks, and speed boats, suitable for all models(only for 12v DC).
Tips
- When you use this AUTOOL SDT 101 Car Smoke Leak Detector for the first time, fill it with 20ml oil. Please be careful NOT to beyond this range.
- This smoke machine does not built-in air pump. It needs to connect an extra air compressor.
- The testing liquid: both liquid paraffin and baby oil are OK.
- Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
- Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
- During the process of leak detection, please keep away from smoke-sensitive parts.
- Do not run the detector for over 8 minutes continuously. It needs interval rest.
- The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
- The round part of this detector has temperature, please be careful to avoid burns.
What Is The EVAP SYSTEM?
The EVAP System is responsible for capturing fuel vapors produced in your vehicle’s fuel system, storing them in a charcoal canister, and safely burning them off in the engine. This process helps reduce harmful emissions and improves overall air quality. Enhanced EVAP Systems, found on most vehicles built after 1996, can even perform self-tests for leaks and proper system operation.
How To Use The AUTOOL SDT101
- Step 1: Fill 20ml baby oil into the detector for the first time. Open the engine cover, and hang the detector in the cover.
- Step 2: Disconnect the pipe that needs to be connected to the detector.
- Step 3: Connect the detector with the DC12V battery, turn on the power switch, and the detector starts to work.
- Step 4: In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use a headlamp if necessary.
