Name: Universal 53 & 71 module cable (boot/bench) | For Scanmatik
Brand: Scanmatik
SKU: BD12703
Price: 79.00 EUR
Availability: InStock

Universal 53 & 71 module cable (boot/bench) | For Scanmatik

-11 %

Universal 53 & 71 module cable (boot/bench) | For Scanmatik

Price:

79.00€

89.00€

: In Stock! Estimated Delivery Time: 2-4 Days
Brand: Scanmatik
Model: Boot/bench
SKU: BD12703

Qty

Buy now

Ask Question

Add to Wish List

Description

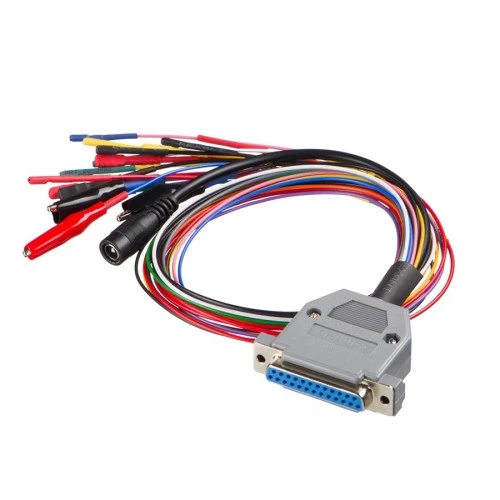

Universal 53 & 71 module cable (boot/bench) , compatible with Scanmatik 3 diagnostic scanner.

Boot cable PINOUT:

red +12V (1 big connector(2.5mm) и 2 small connectors)
black GND (1 big connector (2.5mm) и 1 small connector)
white CAN H (1 small connector)
green CAN L (1 small connector)
yellow + black line (with green shield) K-Line(1 small connector)
yellow GPT1(1 small connector)
orange GPT2(1 small connector)
violet VPP

blue CNF1(for 53)( crocodile terminal, 1KOhm)
grey boot1(for 53)( crocodile terminal, 1kOhm)
brown boot2(for 53 )( crocodile terminal, 1kOhm)

The adapter has reverse polarity protection

Power supply indicator (green),
Power supply for ECU indicator (red),
Boot mode indicator (blue).
Automatic power supply switching for ECU by (L-line)

Automatic generation Boot (2 pc.) and CNF(for 53 module).
