Shipping Notice: Free delivery does not apply to this item. Delivery costs are calculated based on your location. Please contact us for a shipping quote before or after placing your order.

trust-pilot-reviews

BalticDiag-free-worldwide-delivery

Price:
16,445.45€
  • : In Stock! Estimated Delivery Time: 2-4 Days
  • Model: BD71465
  • Weight: 50.00kg
  • Dimensions: 595.00mm x 247.00mm x 547.00mm



500W Air-Cooled Handheld Pulsed Laser Cleaning Machine



Shipping Notice: Free delivery does not apply to this item. Delivery costs are calculated based on your location. Please contact us for a shipping quote before or after placing your order.



The 500W pulsed laser cleaning machine is designed for efficient removal of rust, paint, oxide layers, dirt, and other surface contaminants. Its high-power pulsed laser system provides fast and precise cleaning while minimizing heat accumulation on the treated surface.

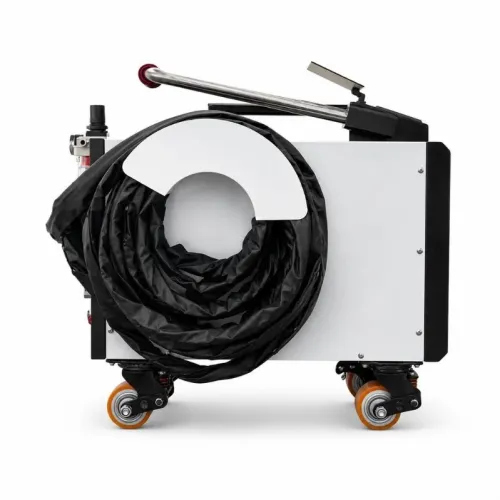

With an air-cooled system, compact design, and handheld cleaning gun, the machine is suitable for both workshop and on-site applications. The wheeled cabinet makes it easy to move between work areas, while the lightweight cleaning gun provides convenient handling during longer cleaning tasks.

Key Features

  • 500W Pulsed Laser: Provides high cleaning power for demanding rust, paint, and surface cleaning applications.
  • Air-Cooled System: Efficient heat management without the need for a water-cooling system.
  • Handheld Cleaning Gun: Lightweight 1.3 kg design for comfortable operation and easy access to different workpiece areas.
  • Precise Cleaning: Pulsed laser operation allows targeted removal of contaminants with low heat accumulation.
  • Wide Range of Applications: Suitable for rust, paint, oxide layers, dirt, and other surface contaminants.
  • Mobile Design: Four dual-swivel wheels and a rotating handle make the machine easy to move around the workshop or job site.
  • Dual Red Light Positioning: Helps identify the target cleaning area for more accurate operation.
  • Multiple Cleaning Modes: The cleaning gun includes 8 built-in cleaning modes for different workpiece shapes and applications.
  • Universal Voltage: Supports 110V and 220V power supply without requiring an additional transformer.
  • Multiple Language Support: The control system supports more than 15 languages.



Applications

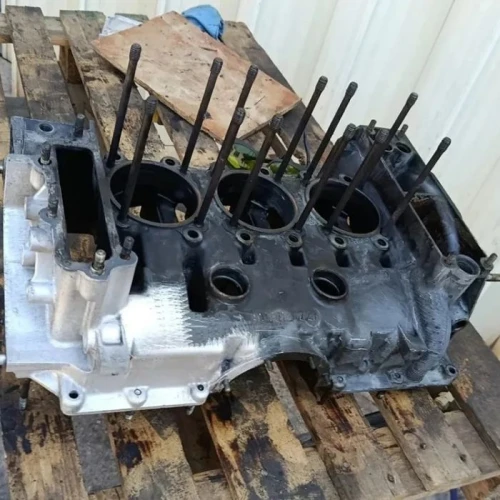

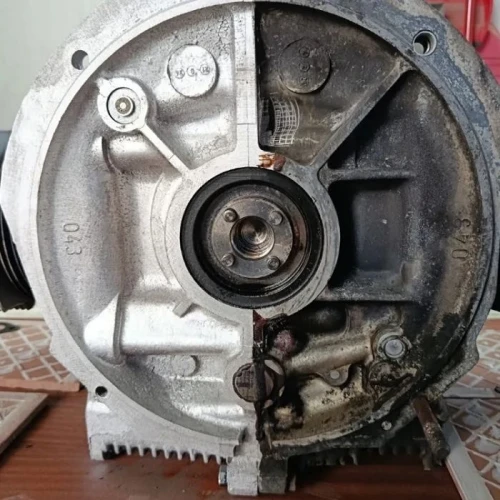

The machine can be used for rust removal, paint stripping, oxide removal, surface preparation, and general industrial cleaning. Its handheld design allows cleaning of large surfaces as well as hard-to-reach areas and components with complex shapes.



Cleaning Gun Features

  • 1.3 kg lightweight handheld cleaning gun
  • Dual red light positioning for accurate target alignment
  • 8 built-in cleaning modes
  • Built-in safety alarm protection
  • IO and Modbus communication interfaces
  • Support for multiple languages
  • Coaxial ring gas nozzle included as standard

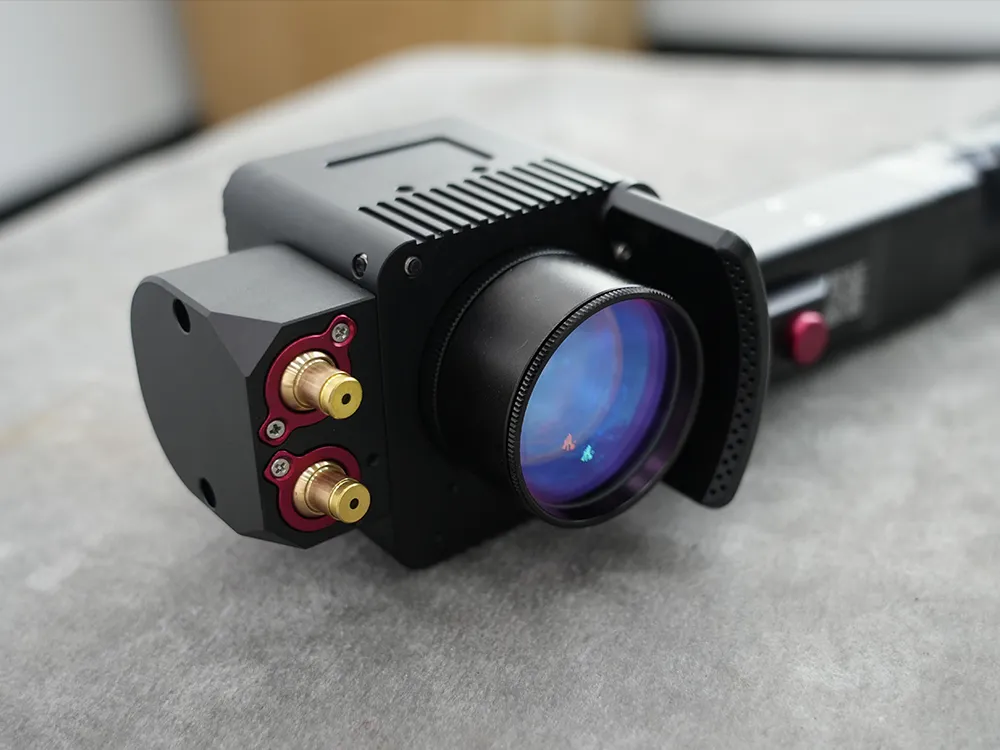

Cleaning Gun



Frequently Asked Questions

Do you offer international shipping for your products?
How can I pay for my order on Balticdiag.com?
Model BD71465
Laser Source JPT
Laser Gun ZBTK
Supply Voltage AC 110V/220V, 50/60Hz
Laser Power 500W
Pulse Frequency Range 1-4000 kHz
Pulse Width 30-500 ns
Maximum Pulse Energy 1.5 mJ / 5 mJ / 15 mJ
Fiber Cable Length 5 m for 1.5 mJ model / 10 m for 5 mJ and 15 mJ models
Laser Wavelength 1064 nm
Operating Temperature 5°C to 40°C
Working Environment Humidity ≤80%
Laser Working Mode Pulse
Cooling System Air Cooling
Scanning Width F160: 65 × 65 mm, F210: 80 × 80 mm, F254: 100 × 100 mm, F300: 120 × 120 mm
Working Distance 180 mm / 240 mm / 280 mm / 330 mm
Machine Dimensions 595 × 248 × 548 mm
Laser Cleaning Gun Weight 1.3 kg
Machine Weight 50 kg
Operation Mode Handheld



Package Contents

The standard package of the Pulsed Laser Cleaning Machine includes the following accessories:

  1. Tool Kit
  2. Laser Safety Goggles
  3. Protective Lens
  4. 5 m Air Hose
  5. Instruction Manual
  6. Oil-Water Separator

Note: The standard accessories may vary depending on the market, safety requirements, application, or order specifications. Please confirm the final package contents with our sales team before ordering.

Pulsed Laser Cleaning Machine Package Contents

Optional Accessories

The following accessories are not included in the standard package and can be added according to your application and working conditions.

Air Compressor

The air compressor supplies compressed air to the laser cleaning gun. A stable air supply helps blow dust and debris away from the protective lens during operation, helping to keep the lens cleaner and reduce maintenance.

Smoke Purifier

The smoke purifier helps remove dust, particles, and fumes generated during laser cleaning. It helps keep the working area cleaner and reduces airborne contaminants around the work surface.

Protective Kit

The protective kit includes an apron, gloves, and shoe covers to provide additional protection for the operator during laser cleaning work.

Recommended Air Supply Setup

For heavy dust, extended operating hours, or continuous cleaning, using an air compressor together with the included oil-water separator is recommended. This helps provide clean and dry compressed air, reduces protective lens contamination, and can help minimize maintenance and downtime.
