Name: MaxiSYS MS909CV | AUTEL | Professional Commercial Vehicle Diagnostic Tool
Brand: AUTEL
Price: 2891.74 EUR
Availability: InStock

MaxiSYS MS909CV | AUTEL | Professional Commercial Vehicle Diagnostic Tool

New -13 %

MaxiSYS MS909CV | AUTEL | Professional Commercial Vehicle Diagnostic Tool

The MS909CV offers Autel’s most comprehensive commercial vehicle diagnostic tablet and service capabilities with all-systems auto scan, network topology, viewing and graphing live data, performing bi-directional controls and tests for Class 1-Class 9 heavy-duty vehicles and off-road construction equipment.
Ideal for professional technicians servicing commercial fleets, construction and agricultural equipment. Covers diagnostics, active testing, ADAS calibration, ECU programming, and electrical system validation—including battery and alternator health.

Price:

2,891.74€

3,304.96€

: In Stock! Estimated Delivery Time: 2-4 Days
Brand: AUTEL
Model: MaxiSYS MS909CV

Qty

Buy now

Ask Question

Add to Wish List

Description
AUTEL NOTICE

AUTEL MaxiSYS MS909CV Professional Commercial Vehicle Diagnostic Tool

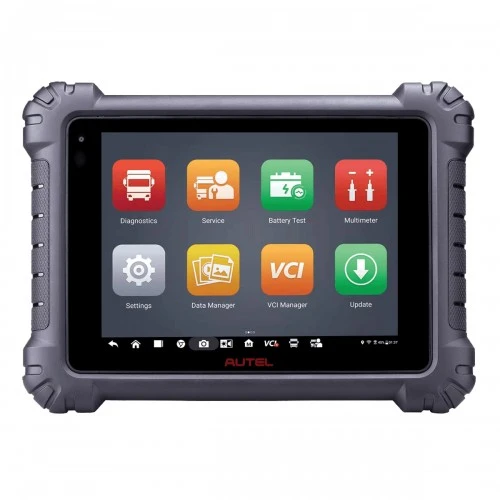

The Autel MaxiSYS MS909CV is a premium all-in-one diagnostic solution engineered for Class 3–8 commercial vehicles, heavy-duty trucks, construction equipment, and agricultural machinery. Designed for professional technicians and fleet maintenance operations, this rugged 9.7" Android-powered tablet combines powerful performance with intelligent diagnostics to streamline every aspect of vehicle service and repair.

Equipped with a Qualcomm Octa-core processor, 128GB storage, and wireless connectivity, the MS909CV enables rapid scanning, bi-directional testing, and real-time data analysis across all major vehicle systems. It supports over 80 manufacturers and industry protocols including SAE J1939, J1708, CAN FD, DoIP, and RP1210.

Key Features

Full-System Diagnostics: Perform system-wide scans, read/clear codes, view live data, and reset modules for all systems.
Topology Mapping: Visualize control modules, DTCs, and network health in a color-coded layout.
Bi-Directional Control: Run active tests on components like fans, valves, and injectors.
ECU Programming & Coding: Includes MaxiFlash VCI for J2534 pass-thru programming and advanced OE-level functions.
ADAS Calibration Support: Supports dynamic and static ADAS calibrations for commercial vehicles.
Battery & Electrical Testing: Comes with MaxiBAS B200, amp clamp, and multimeter for full electrical diagnostics.
Cloud-Based Repair Resources: Access technical bulletins, wiring diagrams, repair guides, and remote tech sessions.
Durable & Shop-Ready: Industrial-grade casing, high-capacity battery, and rugged carry case.

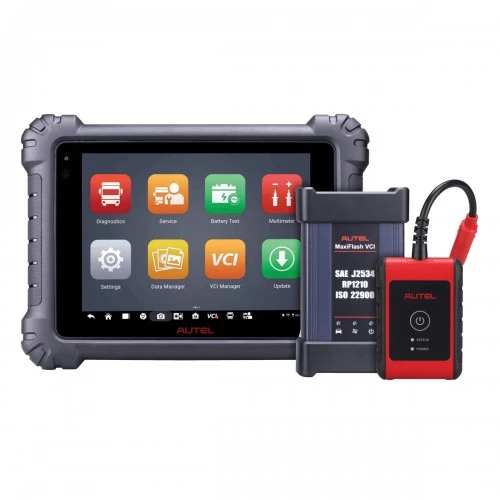

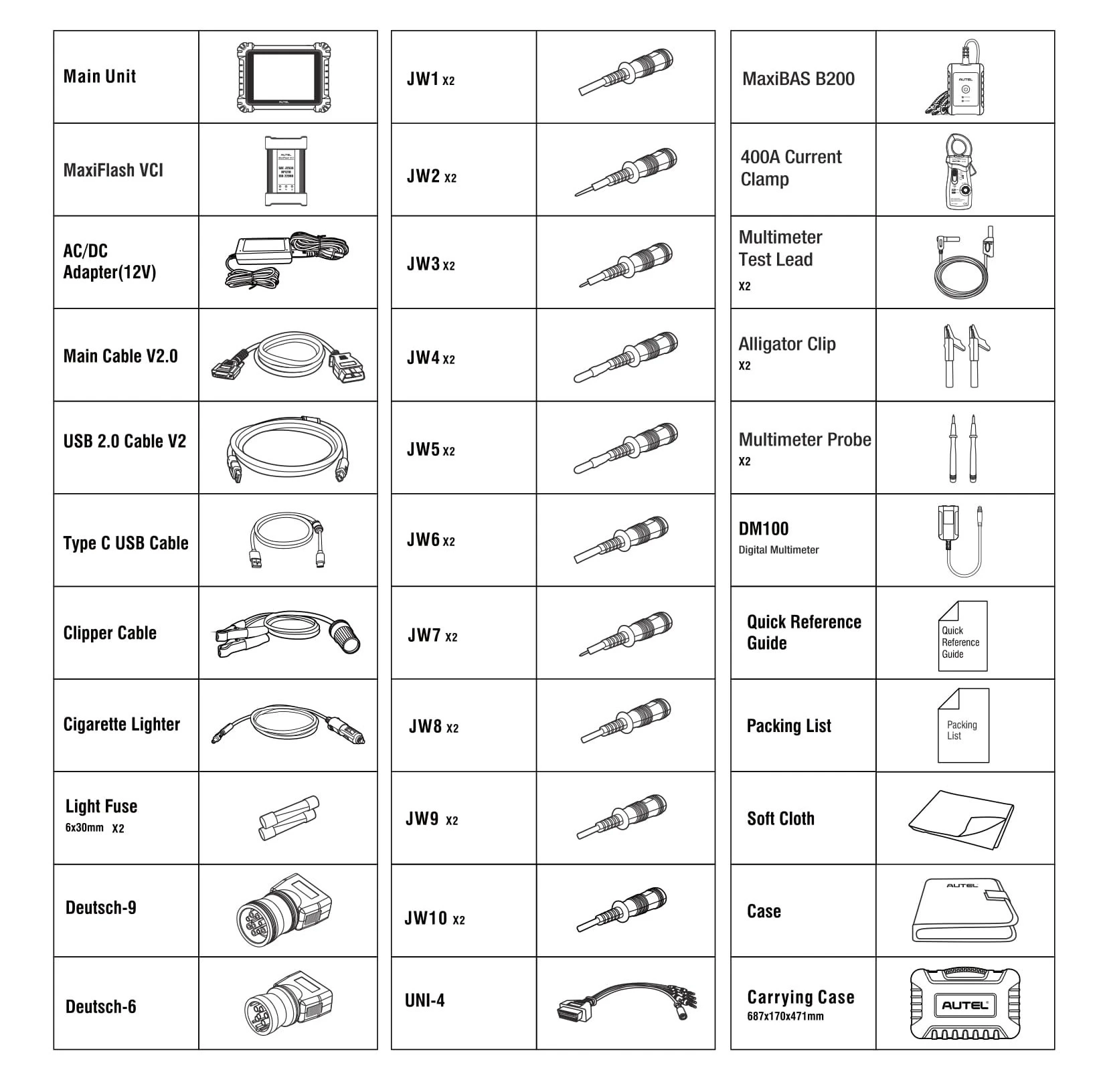

What’s Included

Autel MaxiSYS MS909CV Tablet
MaxiFlash VCI (J2534 pass-thru interface)
MaxiBAS B200 Battery Tester
Heavy-Duty Cable Kit (OBD-I & OBD-II)
Electrical Test Kit (amp clamp, multimeter, probes)
Hard Carrying Case
1-Year Software Updates and Technical Support

Ideal For

Diesel repair facilities, fleet maintenance departments, mobile truck techs, and service centers working with trucks, buses, and off-highway vehicles.

Choose only authorized AUTEL distributors – BALTICDIAG

To have full AUTEL experience and customer support

Frequently Asked Questions

Do you offer international shipping for your products? ❯: Yes, we offer fast and free international express shipping for all products available at Balticdiag.com. We deliver worldwide — including USA, Europe, North America, South America, Asia, Africa, and Australia — using trusted courier services like DHL, UPS, and FedEx. Every order is shipped with express delivery straight to your door, ensuring quick and secure arrival. Shipping fees are included in the product price, and we provide full tracking information for each shipment so you can follow your package from dispatch to delivery.
How can I pay for my order on Balticdiag.com? ❯: We accept a wide range of secure global and local payment methods, including:

Credit & Debit Cards: Visa, Mastercard, American Express, Discover, Diners Club, JCB, China UnionPay, Cartes Bancaires (France)

Digital Wallets: Apple Pay, Google Pay, PayPal, Alipay, Revolut Pay, MobilePay (Denmark & Finland), Link with Instant Bank Payments (USA)

Local Payment Methods: Bancontact (Belgium), BLIK & Przelewy24 (Poland), iDEAL (Netherlands), giropay (Germany), EPS (Austria), Klarna (buy now, pay later), SEPA Direct Debit (EU), Kakao Pay, Naver Pay, PAYCO (South Korea)

Bank Transfers: We also support traditional wire transfers.

Operating System	Android 10
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)
	BT V5.0 + BR/EDR
	GPS
	USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
	HDMI 2.0
	SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight
Camera	Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone
	Dual Speakers
	3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15000mAH 3.8V lithium-polymer battery
Power and Battery	Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/1.3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Operating System	Android 10
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)
	BT V5.0 + BR/EDR
	GPS
	USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
	HDMI 2.0
	SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight
Camera	Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone
	Dual Speakers
	3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15000mAH 3.8V lithium-polymer battery
Power and Battery	Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/1.3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
