Name: MaxiEV ALT100L | Autel | Battery Leakage Tester (Low Pressure)
Brand: AUTEL
Price: 2477.10 USD
Availability: InStock

MaxiEV ALT100L | Autel | Battery Leakage Tester (Low Pressure)

ELECTRIC VEHICLES

MaxiEV ALT100L | Autel | Battery Leakage Tester (Low Pressure)

Used for sealing test for the entire battery pack before disassembly and after assembly of the battery pack (requires connection to an air pump)

Price:

2,154.00€

: In Stock! Estimated Delivery Time: 2-4 Days
Brand: AUTEL
Model: MaxiEV-ALT100L

Qty

Buy now

Ask Question

Add to Wish List

Description
AUTEL NOTICE

MaxiEV ALT100L

The MaxiEV ALT100L is an EV battery leakage and airtightness tester. The unit tests high voltage battery enclosures and high voltage thermodynamics systems for leaks. Offers real-time, dual pressure display of current pressure and leakage fluctuation with high-sensitive pressure sensing that significantly improves test accuracy and stability. The ALT100L offers customizable presets: Pack ID and volume, target pressure, testing phase time, alarm settings, and save and print reports. Offers onscreen test monitoring, and automatically saves test parameters for easy retest adjustments.

High sensitivity

High-sensitive pressure sensing significantly improves test accuracy and stability.

Pressure dual display

Pressure dial and test curve are displayed on the same screen in real-time.

Intelligent alerts

Tester will provide audible and visual alerts to ensure safety when the test is abnormal or failed.

Auto screenshot

Screenshots of test data can be automatically saved and downloaded to USB disk.

Visualized process

Display the progress time of each stage during the test.

Parameter settings

Users can preset test parameters
such as pack ID, pack volume, target pressure, time for each phase, leakage alarm, and more.

Barcode scanner

Supports barcode scanner access, directly scans code, and displays the battery pack ID.

Parameter management

The system auto remembers the last test parameters, enabling future test modification and improving efficiency.

Remote management

The device supports online system upgrades and the optional cloud platform adds remote data transmission and management capability.

Choose only authorized AUTEL distributors – BALTICDIAG

To have full AUTEL experience and customer support

Frequently Asked Questions

Do you offer international shipping for your products? ❯: Yes, we offer fast and free international express shipping for all products available at Balticdiag.com. We deliver worldwide — including USA, Europe, North America, South America, Asia, Africa, and Australia — using trusted courier services like DHL, UPS, and FedEx. Every order is shipped with express delivery straight to your door, ensuring quick and secure arrival. Shipping fees are included in the product price, and we provide full tracking information for each shipment so you can follow your package from dispatch to delivery.
How can I pay for my order on Balticdiag.com? ❯: We accept a wide range of secure global and local payment methods, including:

Credit & Debit Cards: Visa, Mastercard, American Express, Discover, Diners Club, JCB, China UnionPay, Cartes Bancaires (France)

Digital Wallets: Apple Pay, Google Pay, PayPal, Alipay, Revolut Pay, MobilePay (Denmark & Finland), Link with Instant Bank Payments (USA)

Local Payment Methods: Bancontact (Belgium), BLIK & Przelewy24 (Poland), iDEAL (Netherlands), giropay (Germany), EPS (Austria), Klarna (buy now, pay later), SEPA Direct Debit (EU), Kakao Pay, Naver Pay, PAYCO (South Korea)

Bank Transfers: We also support traditional wire transfers.

Test Power	20W (Max)
Test Pressure Range	0-30KPa
Sensor Resolution	1 Pa
Test Accuracy	±5pa
Communication Port	RS-232 / USB
Data Storage	Internal memory / download via USB disk
Power Supply	AC220V
Air Supply	0.1-1.0 MPa dry compressed air
Air Inlet Port / Test Port	¢6mm air pipe/¢6mm air pipe
Work Temperature / Humidity	10%-90% @25°C, without condensation
Dimensions (Weight)	280300200 mm (3.5kg)

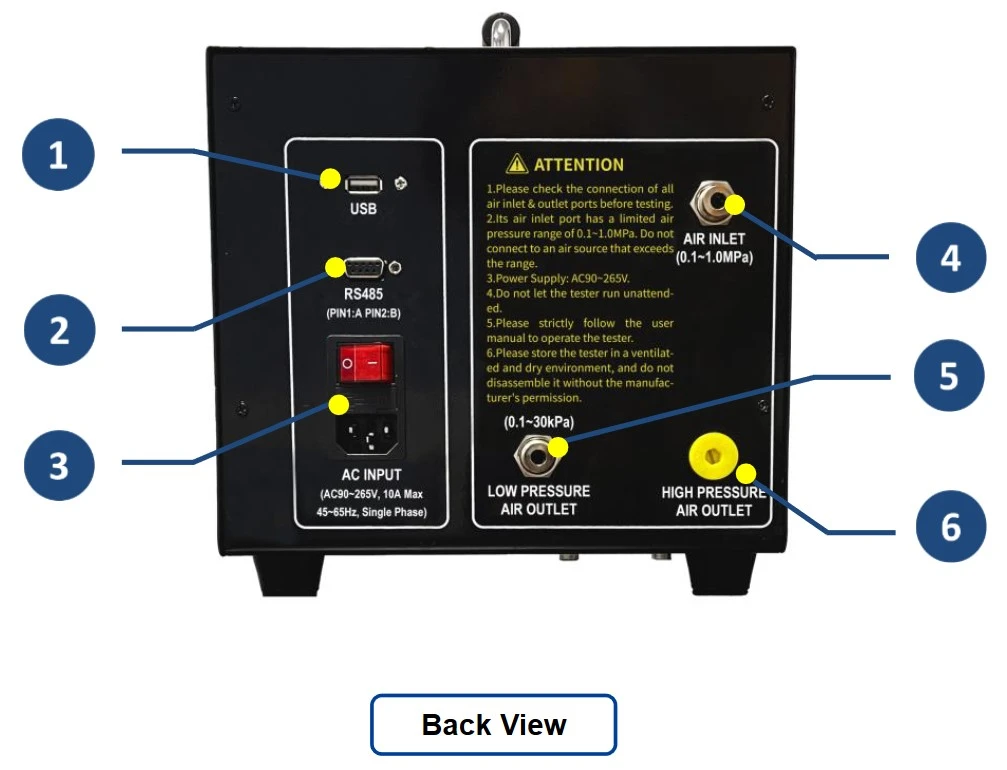

1	USB Port	for test data export and system local update
2	RS485 Port	for data copy and transmit
3	AC Power Supply	AC90~265V input and power switch
4	Air Inlet Port	air supply inlet
5	LP Air Outlet Port	low-pressure output
6	HP Air Outlet Port	not currently supported

Test Power	20W (Max)
Test Pressure Range	0-30KPa
Sensor Resolution	1 Pa
Test Accuracy	±5pa
Communication Port	RS-232 / USB
Data Storage	Internal memory / download via USB disk
Power Supply	AC220V
Air Supply	0.1-1.0 MPa dry compressed air
Air Inlet Port / Test Port	¢6mm air pipe/¢6mm air pipe
Work Temperature / Humidity	10%-90% @25°C, without condensation
Dimensions (Weight)	280300200 mm (3.5kg)

1	USB Port	for test data export and system local update
2	RS485 Port	for data copy and transmit
3	AC Power Supply	AC90~265V input and power switch
4	Air Inlet Port	air supply inlet
5	LP Air Outlet Port	low-pressure output
6	HP Air Outlet Port	not currently supported
