Marine Diagnostic Tool | AXONE NEMO LIGHT | NAVIGATOR TXB 2

Name: Marine Diagnostic Tool | AXONE NEMO LIGHT | NAVIGATOR TXB 2
Brand: TEXA
Price: 4957.00 EUR
Availability: InStock

New FOR MARINE

Marine Diagnostic Tool | AXONE NEMO LIGHT | NAVIGATOR TXB 2

texa marine diagnostic tool

Powerful TEXA diagnostic interface combined with TEXA's software for the MARINE environments with dedicated AXONE NEMO LIGHT diagnostic rugged tablet

Price:

4,957.00€

: In Stock! Estimated Delivery Time: 2-4 Days
Brand: TEXA
Model: D189D0/P16990/D192X0

Available Options

TEXA SERVICES AND UPDATES MARINE (read more)

TEXPACK MARINE (12 months) (+310.00€)

TEX@INFO MARINE - TECHNICAL BULLETINS (12 months) (+50.00€)

TEXA SECURITY ACCESS (12 months) (+140.00€)

Qty

Buy now

Ask Question

Add to Wish List

Description

The evolution of the MARINE diagnosis

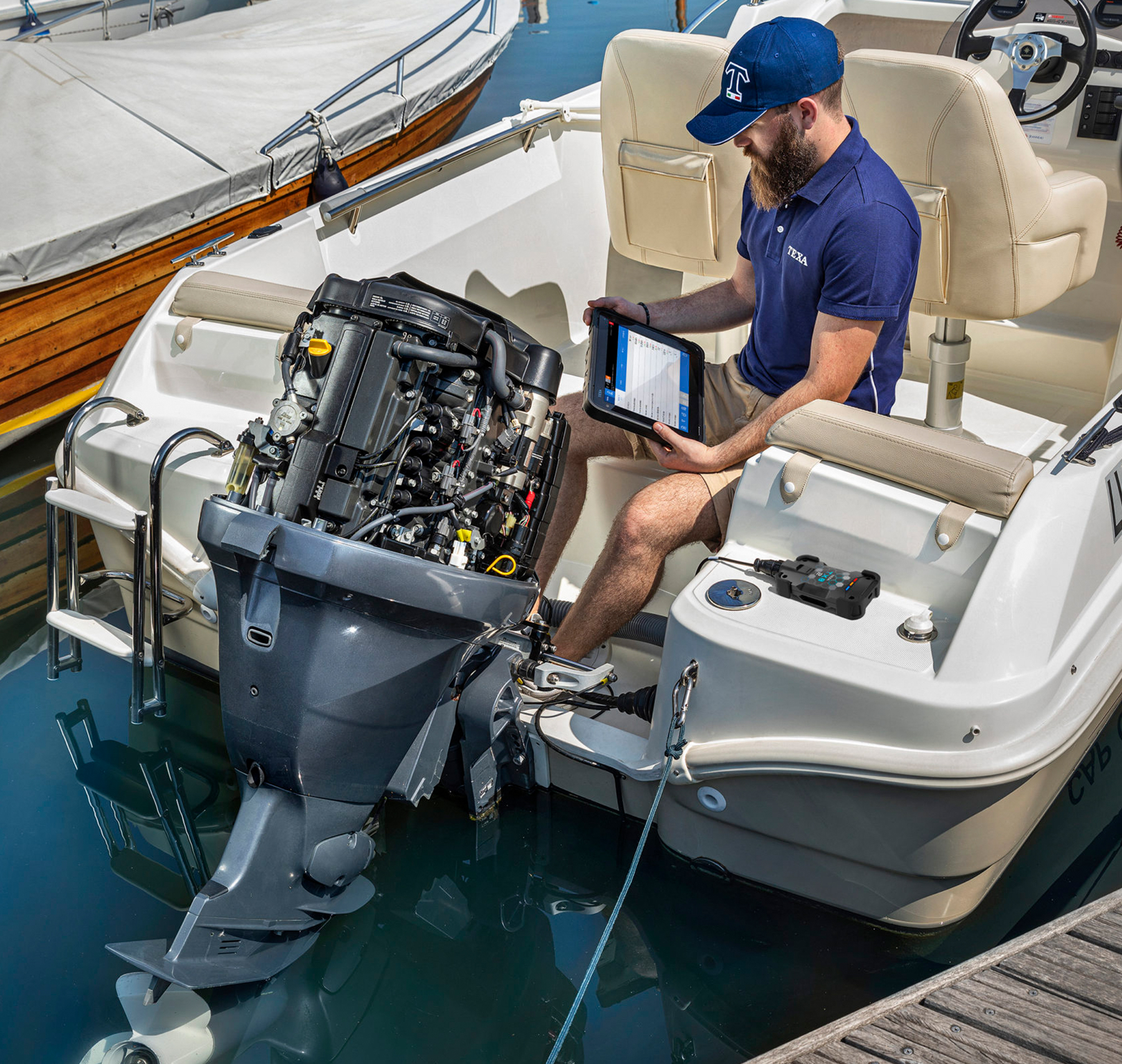

NAVIGATOR TXB 2 is the new tool that TEXA designed and developed specifically for the MARINE diagnosis environments.

Its hardware features make it compatible with all the current protocols for both environments and its integrated 16-pin CPC connector allows the use of all the diagnostic cables. It is extremely powerful, equipped with a 16 MBit SRAM and an 8 GBit NAND FLASH storage memory; these are very important features as they allow the mechanic to manage the map files easily.

The supported CAN standards include the CAN single wire management and an extra CAN controller for the diagnosis on more than one network.

The IDC5 MARINE software is complete, practical and intuitive, extremely quick to access communication with motorcycles and rapid in all diagnostic phases, from the error identification to its solution.

Nominal values associated with the error, technical data sheets, interactive wiring diagrams contain an extraordinary experience in the world of marine engines and thousands of successfully solved problems.

Special adjustments

The IDC5 software offers a wide range of special adjustments that go beyond the ordinary vehicle servicing, such as:

Injector configuration
Idle speed adaptation
Oil type setting
Winterization MAN MARINE
Cylinder compression and cut-out test
Ignition advance adjustment
Lever configuration
Lever configuration
Instrumentation configuration
Key registration
Vehicle configuration change
Key registration with Key Adapter
CAN network alignment
99 HP limitation
Service reset

Errors

This page instantly displays all the errors in the vehicle, with the related codes and descriptions.

From this page, the error reading and clearing can be carried out in a single click, as well as a self-diagnosis test on the selected system.

Nominal values

Useful to solve a fault associated with an error code detected in self-diagnosis. They provide a tree diagram to solve the fault.

Data sheets

Very accurate information on the selected vehicle, including instructions for performing a manual service reset, overviews of specific mechatronic systems and much more.

Technical data

These sheets provide technical information on the engine and indications on the maintenance plan. Very important to dig into the details of each vehicle: Mechanical Data, Wheel Alignment, Timing Belt, Scheduled Maintenance, Component Locations.

Interactive wiring diagrams

The animations of the relevant devices create an interactive map with the flow of input and output signals to/from the control units.

Useful for enhanced troubleshooting, through interaction with the various components shown in them.

You can select specific components to identify their cables and their electrical and logical connections to other components on the wiring diagram.

Specialists in multi-brand diagnostics

Electronic injection, engine and helm management, electronic throttle, drivetrain, electronic systems for galvanic corrosion control, engine compartment.

It is unthinkable for a multi-brand workshop to carry out repair interventions on modern marine engines without the support of valid electronic diagnostics to detect errors, adapt control units, activate components, perform adjustments, reset values.

Having an adequate diagnostic tool is essential in order to remain competitive in the marine engines repair market.

TEXA’s diagnostic tool allows mechanics to solve more faults in less time and with certainty. To improve their service to customers and the workshop’s accounts.

TEXA is constantly studying vehicles in circulation all over the world and continuously increasing its diagnostic coverage; through continuous updates and software releases, it allows subscribed vehicle repairers to have a tool that covers a very large number of makes, models and systems of inboard motors, outboard motors, industrial engines/generator sets, PWC (Personal Watercrafts).

Tags: texa , txb 2 , navigator txb 2 , marine diagnostic tool , marine engine scanner , texa diagnostic tool , axone nemo light , axone nemo

Frequently Asked Questions

Do you offer international shipping for your products? ❯: Yes, we offer fast and free international express shipping for all products available at Balticdiag.com. We deliver worldwide — including USA, Europe, North America, South America, Asia, Africa, and Australia — using trusted courier services like DHL, UPS, and FedEx. Every order is shipped with express delivery straight to your door, ensuring quick and secure arrival. Shipping fees are included in the product price, and we provide full tracking information for each shipment so you can follow your package from dispatch to delivery.
How can I pay for my order on Balticdiag.com? ❯: We accept a wide range of secure global and local payment methods, including:
Credit & Debit Cards: Visa, Mastercard, American Express, Discover, Diners Club, JCB, China UnionPay, Cartes Bancaires (France)
Digital Wallets: Apple Pay, Google Pay, PayPal, Alipay, Revolut Pay, MobilePay (Denmark & Finland), Link with Instant Bank Payments (USA)
Local Payment Methods: Bancontact (Belgium), BLIK & Przelewy24 (Poland), iDEAL (Netherlands), giropay (Germany), EPS (Austria), Klarna (buy now, pay later), SEPA Direct Debit (EU), Kakao Pay, Naver Pay, PAYCO (South Korea)
Bank Transfers: We also support traditional wire transfers.

TEXA NAVIGATOR TXB 2 Specifications

PROCESSOR	CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB FLASH, 564KB RAM	SRAM MEMORY	16 MBits organized in 1024K x 16 bits
SRAM	256 MBits organized in 4096K x 4 banks x 16 bits	eMMC MEMORY	eMMC MEMORY 8 GByte on an 8-bit bus
VEHICLE BATTERY	VEHICLE BATTERY System management at 12 V and 24 V	EXTERNAL POWER SUPPLY	EXTERNAL POWER SUPPLY 12 ÷ 24 V
USB COMMUNICATION	USB COMMUNICATION 2.0 high speed 5 V / 500 mA	WIRELESS CONNECTION	WIRELESS CONNECTION Bluetooth 5.0 class1
OPERATIONAL BAND	2402 ÷ 2480 MHz	MAXIMUN RADIO FREQUENCY POWER TRANSMITTED	10 dBm
ELECTRONIC SWITCH	2-way, 13 independent positions	DIAGNOSTIC CONNECTOR	16-pin CPC
SUPPORTED PROTOCOLS	Blink codes K, L (with current protection 100 mA) ISO9141-2, ISO14230 FD CAN 11898-2:2016 2 channels CAN ISO 11898-3 LOW Speed CAN SAE J2411 Single Wire SAE J1850 PWM SAE J1850 VPW SAE J1708 RS232	VISIBLE WARNINGS	LED: RGB x3
12 V CONSUMPTION	300 mA	24 V CONSUMPTION	100 mA
OPERATING TEMPERATURE	0 ÷ 50 °C	STORAGE TEMPERATURE	– 20 ÷ 60 °C
OPERATING MOISTURE	10 ÷ 80 % without condensation	DIRECTIVES	RED 2014/53/EU RoHS 2011/65/EU and Delegated Directive 2015/863/EU
SAFETY	EN 62368-1 EN 62311	ELECTROMAGNETIC COMPATIBILITY	EN 301 489-1 EN 301 489-17
RADIO SYSTEMS	EN 300 328	WEIGHT	215 g

AXONE NEMO LIGHT Specifications

PROCESSOR	Intel© N100 with standard dissipation	RAM	8 GB DDR5
HARD DISK	250 GB with eMMC technology	BIOS	64 Mbit Flash ROM, AMI BIOS
OPERATING SYSTEM	Windows™ 11 IoT Enterprise	VIDEO PERIPHERAL DEVICES (built-in)	High-contrast ultra-wide view angle display; Dimensions: 10.1”; Resolution: 1920×1200 pixel; High-sensitivity touch controller; Fully laminated capacitive display.
AUDIO PERIPHERAL DEVICES (built-in)	2 speakers	WIRELESS PERIPHERAL DEVICES (built-in)	Wi-Fi: 6 (802.11ax) Bluetooth: 5.2
I/O PERIPHERAL DEVICES	1 USB Type A 2.0 1 USB Type A 3.0 1 micro HDMI	CAMERAS	Front: 2 Mpixel Rear: 5 Mpixel
LEDs	1 green LED (system status) 1 red LED (charging / power supply status)	ROBUSTNESS	Rugged design
INTERNAL BATTERY	Rechargeable Li-ion 7,4 Vdc; 44,4 Wh; 6000 mAh	EXTERNAL POWER SUPPLY	From external power adapter: Input: 100-240 Vac; 0.8 A; 50-60 Hz Output: 12 V – 3.0 A
ABSORPTION	12 Vdc (2Adc)	OPERATING TEMPERATURE	0 ÷ 40 °C

Our prepared TEXA package contains

D189D0 – NAVIGATOR TXB 2 - Diagnostic interface
D192X0 – AXONE NEMO LIGHT - Diagnostic tablet
P16990 – IDC5m PLUS MARINE - Diagnostic software
S04994 – MARINE BASIC - Cable case (contents listed below):

3910306	Empty rugged case for BIKE and MARINE with inner room for NAVIGATOR TXB Evolution and diagnostic cables, with pocket holding AXONE NEMO 2 or AXONE NEMO LIGHT or a laptop
3902358	Marine main cable (AM01)
3902407	Marine HONDA/TOHATSU (PGM-FI) cable (AM02)*
3902247	Marine MERCURY and MARINER Group 2 pin cable (AM04)*
3902250	Marine MERCURY and MARINER Group 4 pin cable (AM05)*
3902413	Marine YAMAHA/SELVA MARINE cable (AM06)*
3902467	Marine VOLVO PENTA KAD-TAMD cable (AM09)*
3902865	Marine EVINRUDE cable (AM13)
3902907	Marine 10 pin VOLVO, MERCRUISER, CRUSADER, PCM (MEFI-1,2,3,4,4B) cable (AM14)*
3903560	Marine 4 pin SUZUKI cable (AM22)*
3909234	Marine VOLVO PENTA cable (AM40)
3910120	Marine OBDM cable (AM43)
3910127	Marine MERCURY cable (AM44)
NOTE	* To be used with 3902358 (AM01)

SPECIFICATIONS

TEXA NAVIGATOR TXB 2 Specifications

PROCESSOR	CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB FLASH, 564KB RAM	SRAM MEMORY	16 MBits organized in 1024K x 16 bits
SRAM	256 MBits organized in 4096K x 4 banks x 16 bits	eMMC MEMORY	eMMC MEMORY 8 GByte on an 8-bit bus
VEHICLE BATTERY	VEHICLE BATTERY System management at 12 V and 24 V	EXTERNAL POWER SUPPLY	EXTERNAL POWER SUPPLY 12 ÷ 24 V
USB COMMUNICATION	USB COMMUNICATION 2.0 high speed 5 V / 500 mA	WIRELESS CONNECTION	WIRELESS CONNECTION Bluetooth 5.0 class1
OPERATIONAL BAND	2402 ÷ 2480 MHz	MAXIMUN RADIO FREQUENCY POWER TRANSMITTED	10 dBm
ELECTRONIC SWITCH	2-way, 13 independent positions	DIAGNOSTIC CONNECTOR	16-pin CPC
SUPPORTED PROTOCOLS	Blink codes K, L (with current protection 100 mA) ISO9141-2, ISO14230 FD CAN 11898-2:2016 2 channels CAN ISO 11898-3 LOW Speed CAN SAE J2411 Single Wire SAE J1850 PWM SAE J1850 VPW SAE J1708 RS232	VISIBLE WARNINGS	LED: RGB x3
12 V CONSUMPTION	300 mA	24 V CONSUMPTION	100 mA
OPERATING TEMPERATURE	0 ÷ 50 °C	STORAGE TEMPERATURE	– 20 ÷ 60 °C
OPERATING MOISTURE	10 ÷ 80 % without condensation	DIRECTIVES	RED 2014/53/EU RoHS 2011/65/EU and Delegated Directive 2015/863/EU
SAFETY	EN 62368-1 EN 62311	ELECTROMAGNETIC COMPATIBILITY	EN 301 489-1 EN 301 489-17
RADIO SYSTEMS	EN 300 328	WEIGHT	215 g

AXONE NEMO LIGHT Specifications

PROCESSOR	Intel© N100 with standard dissipation	RAM	8 GB DDR5
HARD DISK	250 GB with eMMC technology	BIOS	64 Mbit Flash ROM, AMI BIOS
OPERATING SYSTEM	Windows™ 11 IoT Enterprise	VIDEO PERIPHERAL DEVICES (built-in)	High-contrast ultra-wide view angle display; Dimensions: 10.1”; Resolution: 1920×1200 pixel; High-sensitivity touch controller; Fully laminated capacitive display.
AUDIO PERIPHERAL DEVICES (built-in)	2 speakers	WIRELESS PERIPHERAL DEVICES (built-in)	Wi-Fi: 6 (802.11ax) Bluetooth: 5.2
I/O PERIPHERAL DEVICES	1 USB Type A 2.0 1 USB Type A 3.0 1 micro HDMI	CAMERAS	Front: 2 Mpixel Rear: 5 Mpixel
LEDs	1 green LED (system status) 1 red LED (charging / power supply status)	ROBUSTNESS	Rugged design
INTERNAL BATTERY	Rechargeable Li-ion 7,4 Vdc; 44,4 Wh; 6000 mAh	EXTERNAL POWER SUPPLY	From external power adapter: Input: 100-240 Vac; 0.8 A; 50-60 Hz Output: 12 V – 3.0 A
ABSORPTION	12 Vdc (2Adc)	OPERATING TEMPERATURE	0 ÷ 40 °C

PACKAGE LIST

Our prepared TEXA package contains

D189D0 – NAVIGATOR TXB 2 - Diagnostic interface
D192X0 – AXONE NEMO LIGHT - Diagnostic tablet
P16990 – IDC5m PLUS MARINE - Diagnostic software
S04994 – MARINE BASIC - Cable case (contents listed below):

3910306	Empty rugged case for BIKE and MARINE with inner room for NAVIGATOR TXB Evolution and diagnostic cables, with pocket holding AXONE NEMO 2 or AXONE NEMO LIGHT or a laptop
3902358	Marine main cable (AM01)
3902407	Marine HONDA/TOHATSU (PGM-FI) cable (AM02)*
3902247	Marine MERCURY and MARINER Group 2 pin cable (AM04)*
3902250	Marine MERCURY and MARINER Group 4 pin cable (AM05)*
3902413	Marine YAMAHA/SELVA MARINE cable (AM06)*
3902467	Marine VOLVO PENTA KAD-TAMD cable (AM09)*
3902865	Marine EVINRUDE cable (AM13)
3902907	Marine 10 pin VOLVO, MERCRUISER, CRUSADER, PCM (MEFI-1,2,3,4,4B) cable (AM14)*
3903560	Marine 4 pin SUZUKI cable (AM22)*
3909234	Marine VOLVO PENTA cable (AM40)
3910120	Marine OBDM cable (AM43)
3910127	Marine MERCURY cable (AM44)
NOTE	* To be used with 3902358 (AM01)
