texa marine diagnostic tool

  • Powerful TEXA diagnostic interface combined with TEXA's software for the MARINE environments and BALTICDIAG diagnostic laptop.

 FREE EXPRESS WORLDWIDE DELIVERY

Price:
2,658.00€
  • Stock: In Stock
  • Model: D117D0/P12990

Available Options



The evolution of the MARINE diagnosis

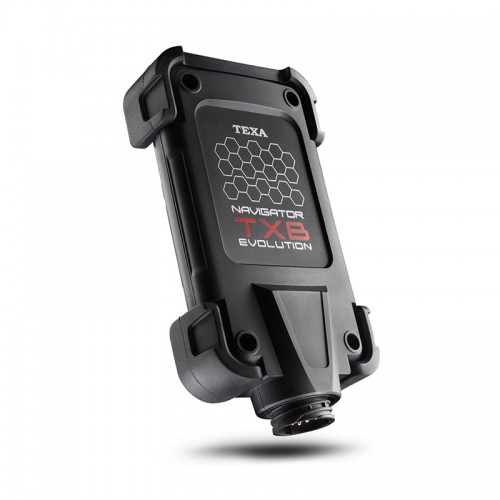

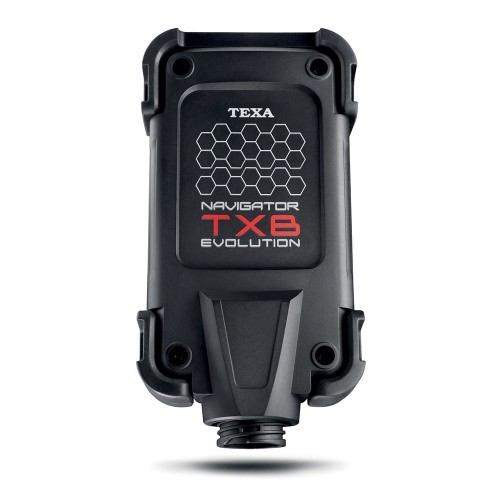

NAVIGATOR TXB Evolution is the new tool that TEXA designed and developed specifically for the MARINE diagnosis environments.

Its hardware features make it compatible with all the current protocols for both environments and its integrated 16-pin CPC connector allows the use of all the diagnostic cables. It is extremely powerful, equipped with a 16 MBit SRAM and an 8 GBit NAND FLASH storage memory; these are very important features as they allow the mechanic to manage the map files easily.

The supported CAN standards include the CAN single wire management and an extra CAN controller for the diagnosis on more than one network.







The IDC5 MARINE software is complete, practical and intuitive, extremely quick to access communication with motorcycles and rapid in all diagnostic phases, from the error identification to its solution.

Nominal values associated with the error, technical data sheets, interactive wiring diagrams contain an extraordinary experience in the world of marine engines and thousands of successfully solved problems.



Special adjustments





The IDC5 software offers a wide range of special adjustments that go beyond the ordinary vehicle servicing, such as:

Injector configuration
Idle speed adaptation
Oil type setting
Winterization MAN MARINE
Cylinder compression and cut-out test
Ignition advance adjustment
Lever configuration
Lever configuration
Instrumentation configuration
Key registration
Vehicle configuration change
Key registration with Key Adapter
CAN network alignment
99 HP limitation
Service reset







Errors





This page instantly displays all the errors in the vehicle, with the related codes and descriptions.

From this page, the error reading and clearing can be carried out in a single click, as well as a self-diagnosis test on the selected system.



Nominal values



Useful to solve a fault associated with an error code detected in self-diagnosis. They provide a tree diagram to solve the fault.



Data sheets



Very accurate information on the selected vehicle, including instructions for performing a manual service reset, overviews of specific mechatronic systems and much more.



Technical data





These sheets provide technical information on the engine and indications on the maintenance plan. Very important to dig into the details of each vehicle: Mechanical Data, Wheel Alignment,  Timing Belt, Scheduled Maintenance, Component Locations.



Interactive wiring diagrams





The animations of the relevant devices create an interactive map with the flow of input and output signals to/from the control units.

Useful for enhanced troubleshooting, through interaction with the various components shown in them.

You can select specific components to identify their cables and their electrical and logical connections to other components on the wiring diagram.





Specialists in multi-brand diagnostics




Electronic injection, engine and helm management, electronic throttle, drivetrain, electronic systems for galvanic corrosion control, engine compartment.

It is unthinkable for a multi-brand workshop to carry out repair interventions on modern marine engines without the support of valid electronic diagnostics to detect errors, adapt control units, activate components, perform adjustments, reset values.

Having an adequate diagnostic tool is essential in order to remain competitive in the marine engines repair market.

TEXA’s diagnostic tool allows mechanics to solve more faults in less time and with certainty. To improve their service to customers and the workshop’s accounts.

TEXA is constantly studying vehicles in circulation all over the world and continuously increasing its diagnostic coverage; through continuous updates and software releases, it allows subscribed vehicle repairers to have a tool that covers a very large number of makes, models and systems of inboard motors, outboard motors, industrial engines/generator sets, PWC (Personal Watercrafts).

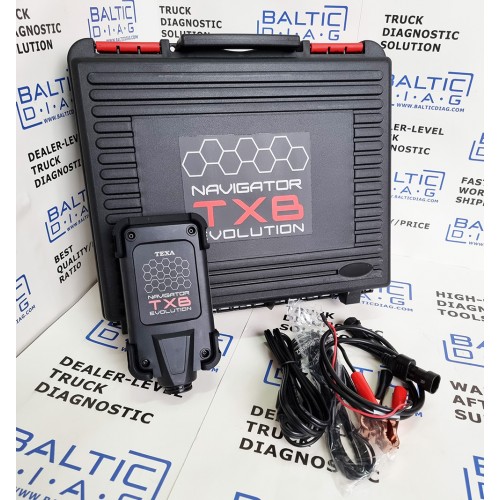

Marine Engine Diagnostic Tool includes Marine Cabe Case

3910306 Empty rugged case for BIKE and MARINE with inner room for NAVIGATOR TXB Evolution and diagnostic cables, with pocket holding AXONE NEMO 2 or AXONE NEMO MINI or a laptop
3902358 Marine main cable (AM01)
3902407 Marine HONDA/TOHATSU (PGM-FI) cable (AM02)*
3902247 Marine MERCURY and MARINER Group 2 pin cable (AM04)*
3902413 Marine YAMAHA/SELVA MARINE cable (AM06)*
3902467 Marine VOLVO PENTA KAD-TAMD cable (AM09)*
3902865 Marine EVINRUDE cable (AM13)
3902907 Marine 10 pin VOLVO, MERCRUISER, CRUSADER, PCM (MEFI-1,2,3,4,4B) cable (AM14)*
3903560 Marine 4 pin SUZUKI cable (AM22)*
3909234 Marine VOLVO PENTA cable (AM40)
3910120 Marine OBDM cable (AM43)
3910127 Marine MERCURY cable (AM44)
NOTE * To be used with 3902358 (AM01)

PROCESSOR

CORTEX M3 STM32F103ZG 72 MHz, FLASH 1024 KBytes, SRAM 96 KBytes



SRAM MEMORY

16 MBits organized in 1024K x 16 bits



NAND FLASH MEMORY

8 GBit on an 8-bit bus



VEHICLE BATTERY

12VDC and 24VDC system management



EXTERNAL POWER SUPPLY

8 ÷ 32 V



USB COMMUNICATION

virtual RS232 via USB 2.0 Device



WIRELESS CONNECTION

Bluetooth class1 (30 m)



ELECTRONIC SWITCH

2-way, 13 independent positions



DIAGNOSTIC CONNECTOR

16-pin CPC



SUPPORTED PROTOCOLS

• Blink codes

• K, L (with current protection 100 mA), ISO9141-2, ISO14230

• CAN ISO11898-2 High Speed

• Second ISO11898-2 CAN Channel

• CAN ISO 11898-3 LOW Speed

• CAN SAE J2411 Single Wire

• SAE J1850 PWM

• SAE J1850 VPW

• SAE J1708

• RS232



VISIBLE WARNING

1 green/red LED, 1 blue LED



12 V CONSUMPTION

< 200 mA



24 V CONSUMPTION

< 100 mA



OPERATING TEMPERATURE

0 ÷ 50 °C



STORAGE TEMPERATURE

– 20 ÷ 60 °C



OPERATING MOISTURE

10 ÷ 80 % without condensation



REGULATIONS

Directive: 1999/5/CE



SAFETY

EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 + A2:2013



ELECTROMAGNETIC COMPATIBILITY

EN 55022, EN 55024, EN 301 489-1



RADIO SYSTEMS

EN 301 489-17, EN 300 328-2



WEIGHT

215 g
