Description

Double Scissor Lift 3500 KG, BD-S4DE

Shipping Notice: Free delivery does not apply to this item. Delivery costs are calculated based on your location. Please contact us for a shipping quote before or after placing your order.

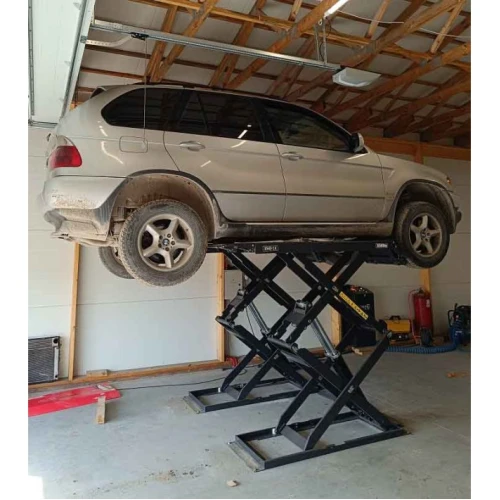

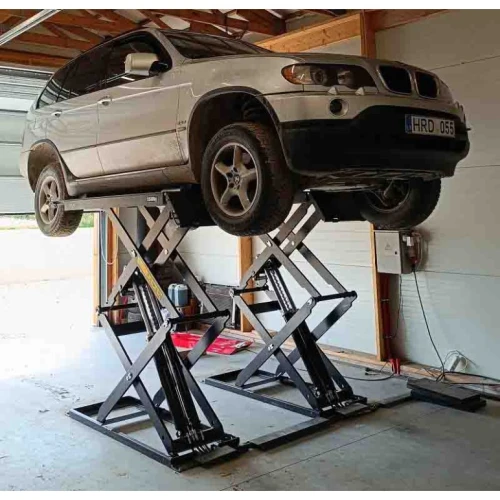

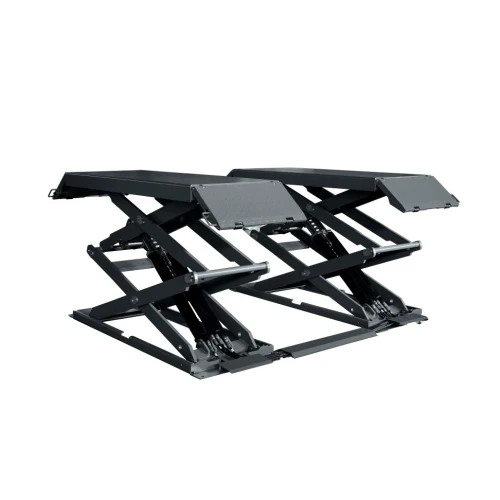

The BD-S4DE double scissor lift is a reliable and space-efficient car lift 3500 kg designed for professional use in automotive workshops, garages, and service centers. It provides safe and stable lifting for a wide range of vehicles, making it ideal for everything from routine maintenance to more complex repair work. Thanks to its compact scissor lift design, this unit is perfect for workshops where space is limited but performance cannot be compromised. The electro-hydraulic system ensures smooth and synchronized lifting, even under intensive daily use. With a low minimum height and extendable platforms, this automotive scissor lift offers flexibility for different vehicle types while maintaining operator safety and comfort. Its durable construction and intuitive controls make it a dependable solution for busy workshops.

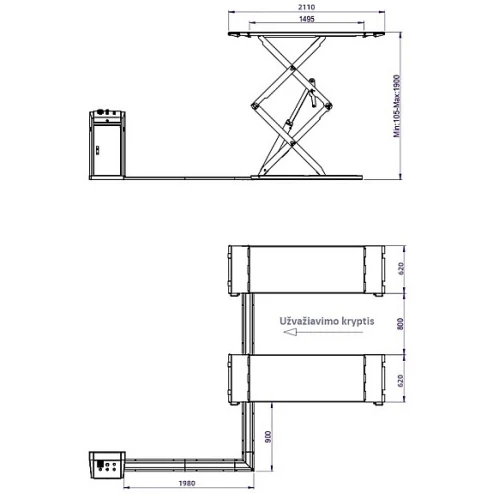

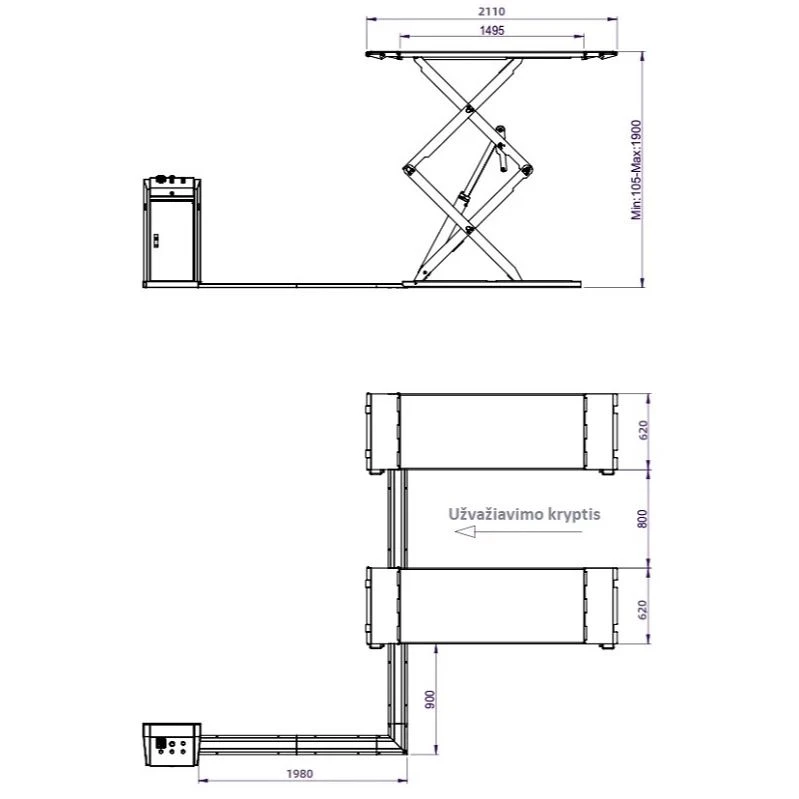

Technical specifications:

Operating principle: electro-hydraulic
Lifting capacity: 3500 kg
Maximum lifting height: 1900 mm
Minimum platform height: 105 mm
Platform length: 1495–2110 mm
Platform width: 620 mm
Lifting / lowering time: approx. 50 / 60 sec
Overall lift length: 2110 mm
Overall lift width: 2035 mm
Total weight: 817 kg
Power supply: 400 V / 50 Hz / 3-phase or 230 V / 50 Hz / 1-phase
Electric motor power: 2.2 kW
Hydraulic oil capacity: 18 l
Required compressed air pressure: 4–6 kg/cm²
Operating temperature: 5 °C – 40 °C
Ambient operating humidity: 30–95 %

Functions:

Platforms with additional drive-on ramps / platform extensions
Folding scissor mechanism that significantly reduces the space required
Independent control unit with low 24 V control voltage for increased operational safety
Hydraulic cylinder synchronization maintaining platform levelness throughout the lifting process
Double mechanical safety system protecting the platforms from falling
Protective hydraulic valves against overload and hydraulic system failures
Mechanical emergency lowering in the event of power supply failure
Option to install the unit base on a concrete or cement foundation
Robust steel construction with sliding tracks, double pneumatic locking mechanisms, and integrated hydraulic oil reservoir
Electronic lift control system installed at the top of the control unit, with the hydraulic oil pump, valves, and other hydraulic system components located at the bottom

The double scissor lift BD-S4DE is a reliable choice for automotive service centers and workshops seeking efficient workflow, a high level of safety, and versatile application. By choosing this lift, you invest in a robust construction, stable performance, and professional equipment designed for intensive daily use.
