CT500 | Autool | Petrol Injectors Testing And Washing Device
CT500 | Autool | Petrol Injectors Testing And Washing Device
- Wide Range of Injectors Supported
- Injector Cleaning and Testing Function
- Multiple Voltage Selection
- Upgrade Ultrasonic Cleaning
- 6-cylinder and 2-drain design
- Equipped with multiple parts and portable drawer
Price:
743.80€
- : In Stock! Estimated Delivery Time: 2-4 Days
- Brand: Autool
- Model: CT500
- SKU: BD25669

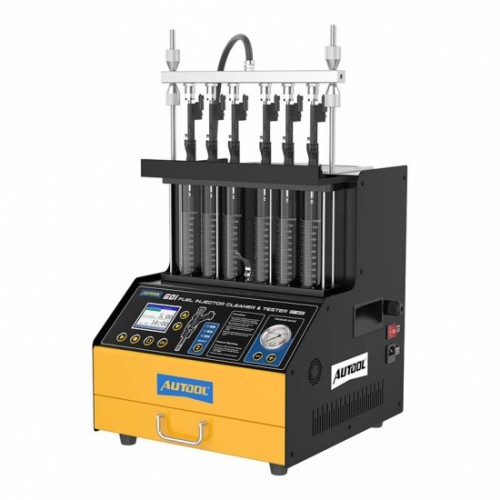

CT500 Petrol Injectors Testing And Washing Device
AUTOOL CT500 Fuel injector diagnostic and cleaning machine is a mechatronics product that combines ultrasonic cleaning technology and micro-computer oil pressure closed-loop control cleaning and detection technology. Fuel injector Diagnostic And Cleaning Machine simulates various operating conditions of the engine and cleans and inspects the fuel injectors of various automobiles and motorcycles. This equipment is the necessary and preferred equipment for the automobile and motorcycle repair and maintenance industry, research teaching, and training departments.
Features
- Wide Range of Injectors Supported: CT500 not only supports GDI, EFI, FSI, and other types of injectors but also compatible with common standard injectors. 12V, 70V, and 120V voltages are available to drive GDI injectors, which basically cover most of the injectors of European, American, and Asian car brands.
- Injector Cleaning and Testing Function: Not only can you clean and test standard injectors, but you can also clean and test GDI injectors, such as those of Mercedes-Benz, BMW, Audi, Porsche, Ford, and other direct injection engines.
- Multiple Voltage Selection: CT500 6 cylinders cleaner and tester is designed with 3 output voltages for your choice (12V,70V, and 120V), which can better adapt to different types of injector testing.

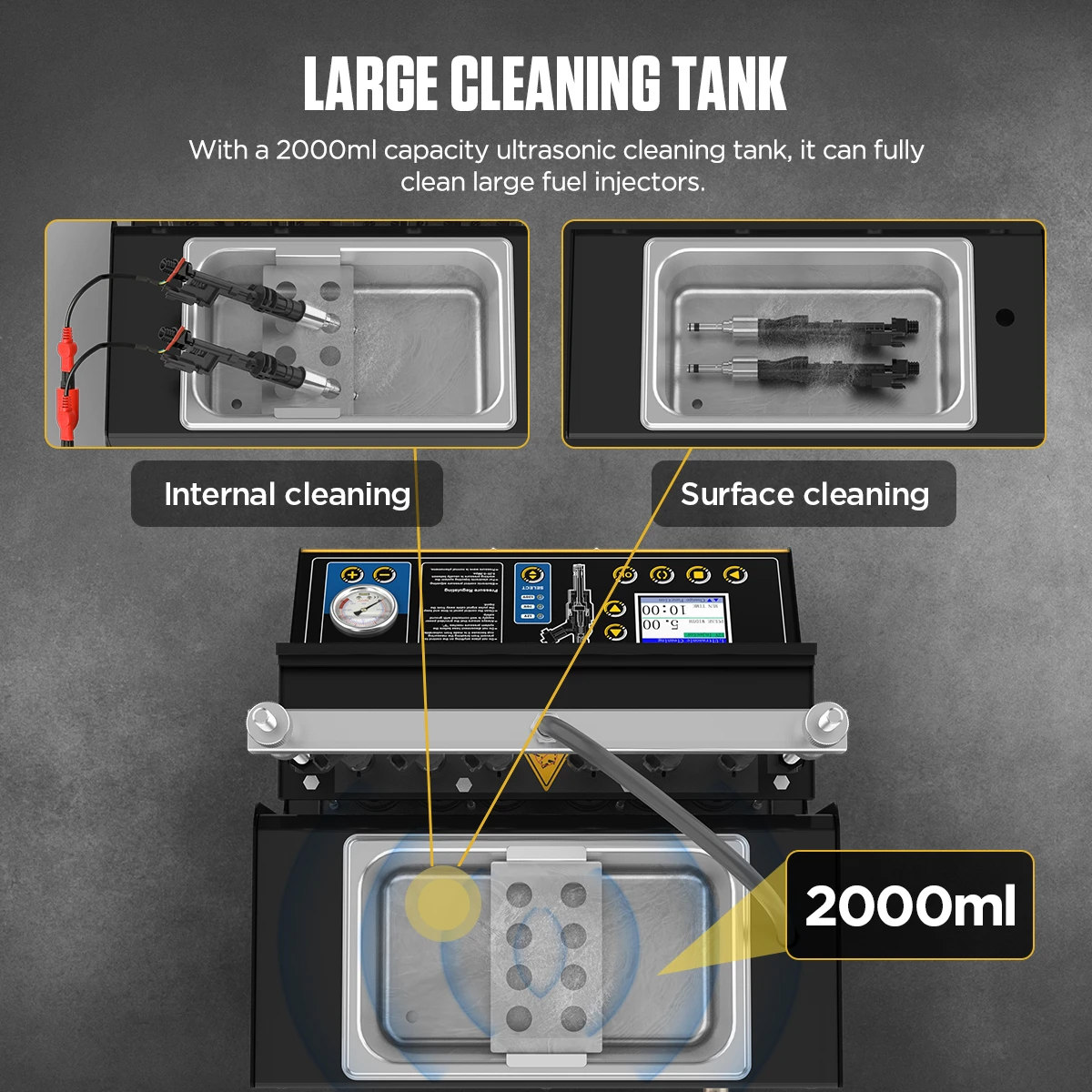

- Upgrade Ultrasonic Cleaning: Unlike other cleaners and testers, AUTOOL CT500 is equipped with a cooling fan and thermal protection device, the power can be up to 70W, which greatly provides ultrasonic cleaning capacity.

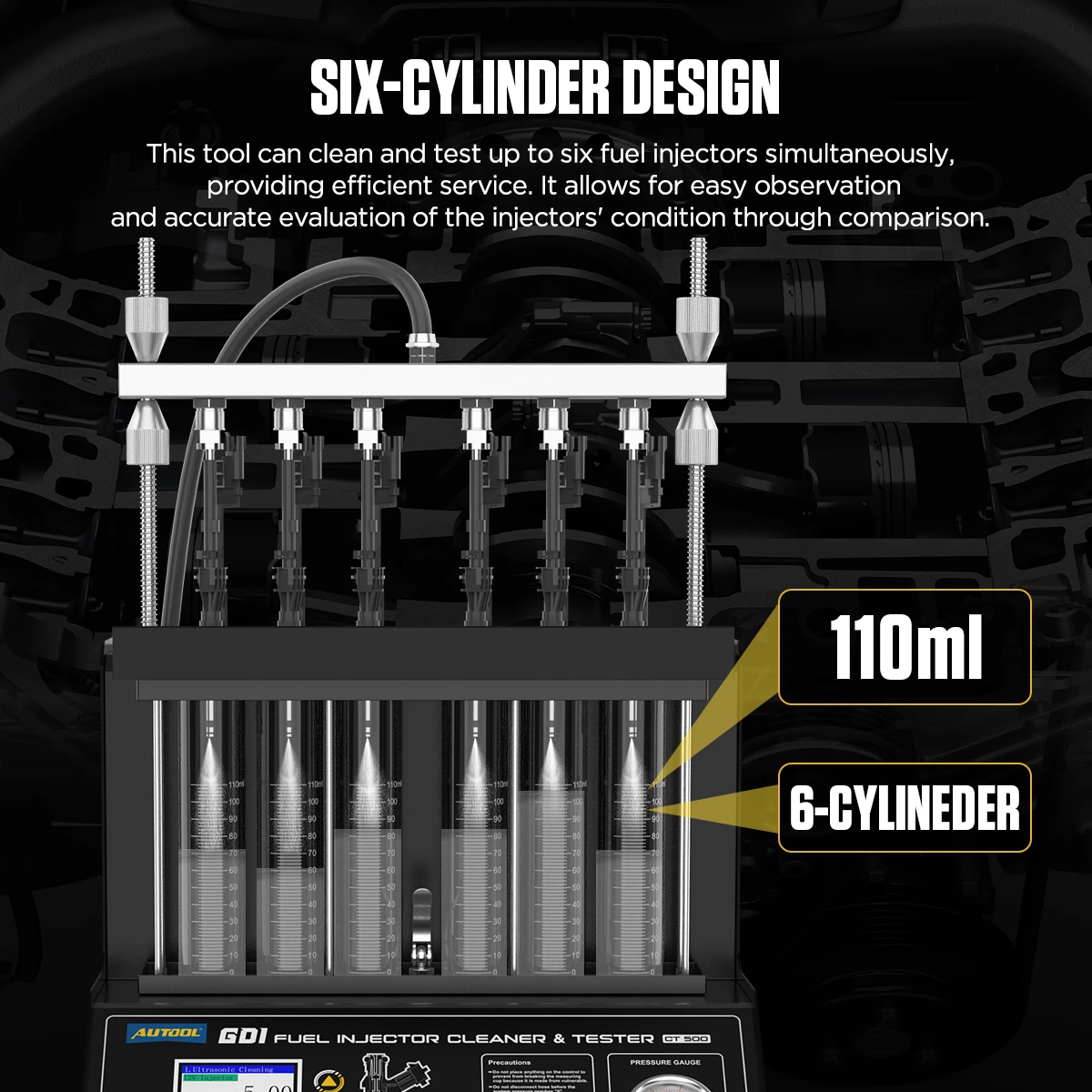

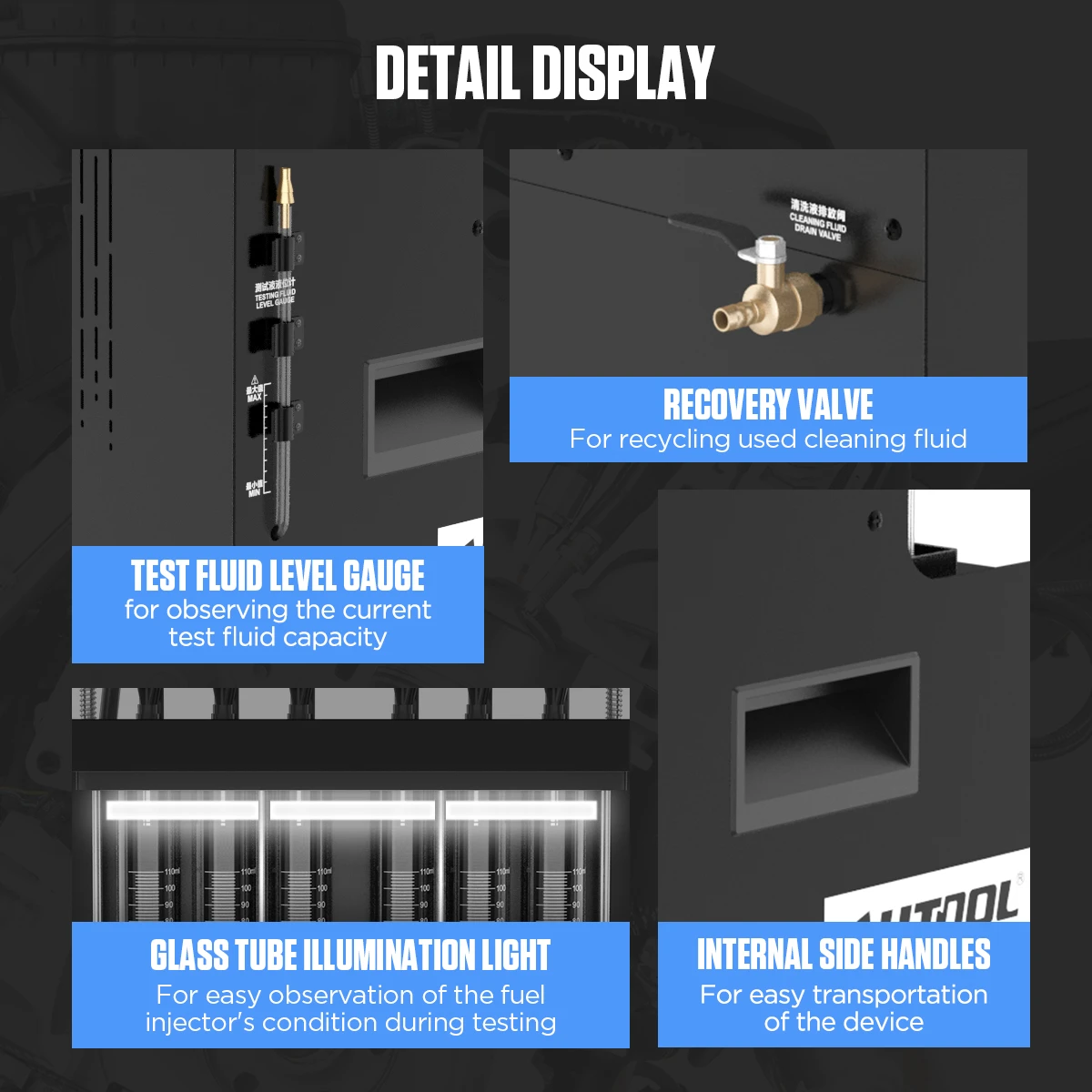

- 6-cylinder and 2-drain design: it can test and clean 6 nozzles at the same time, mailbox level is visualized for higher cleaning efficiency; it comes with two control valves for cleaning liquid exclusion and test liquid recycling, which is easy to handle and facilitates the multiple use of test liquid.

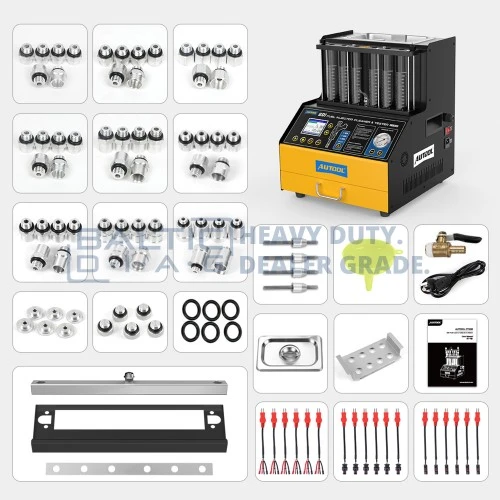

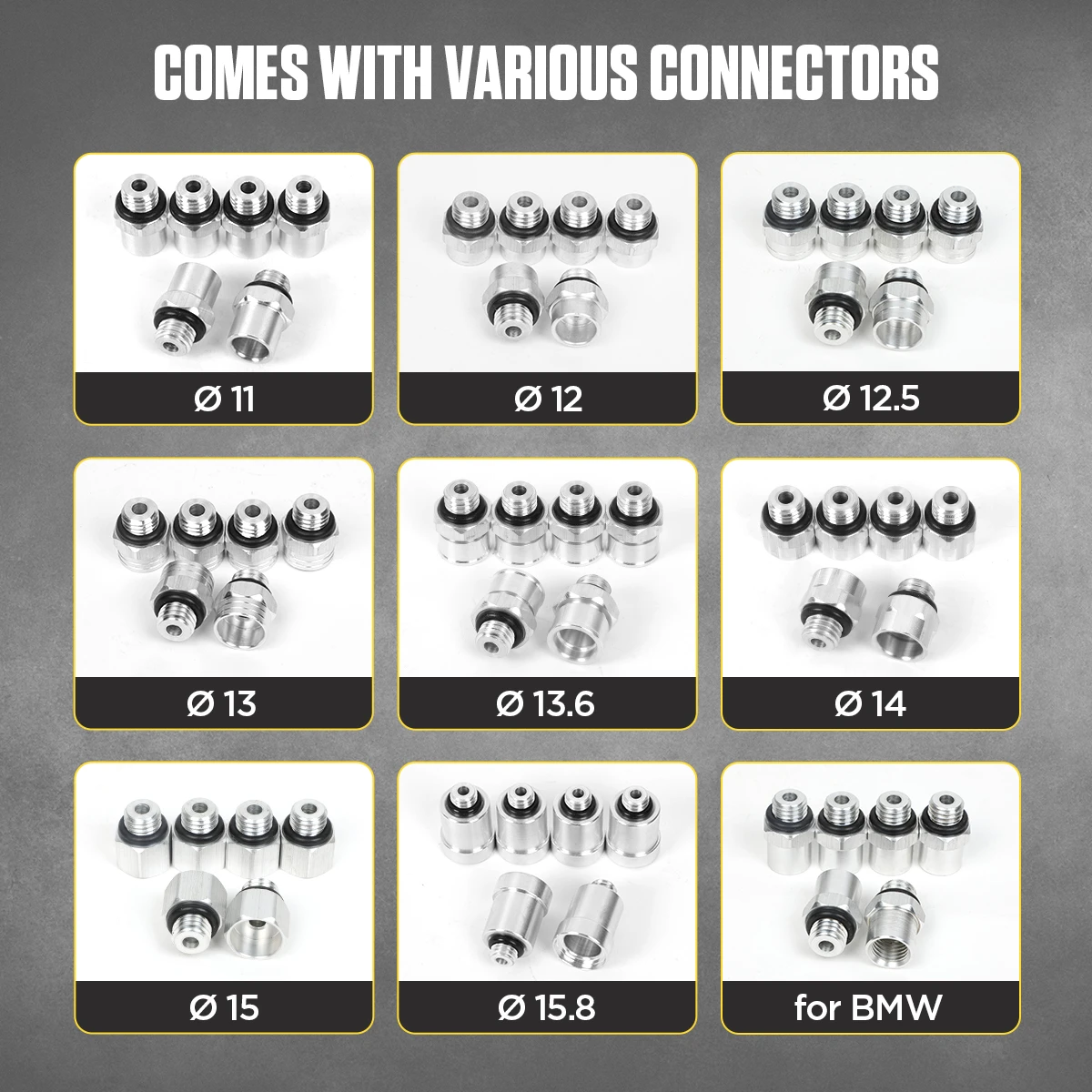

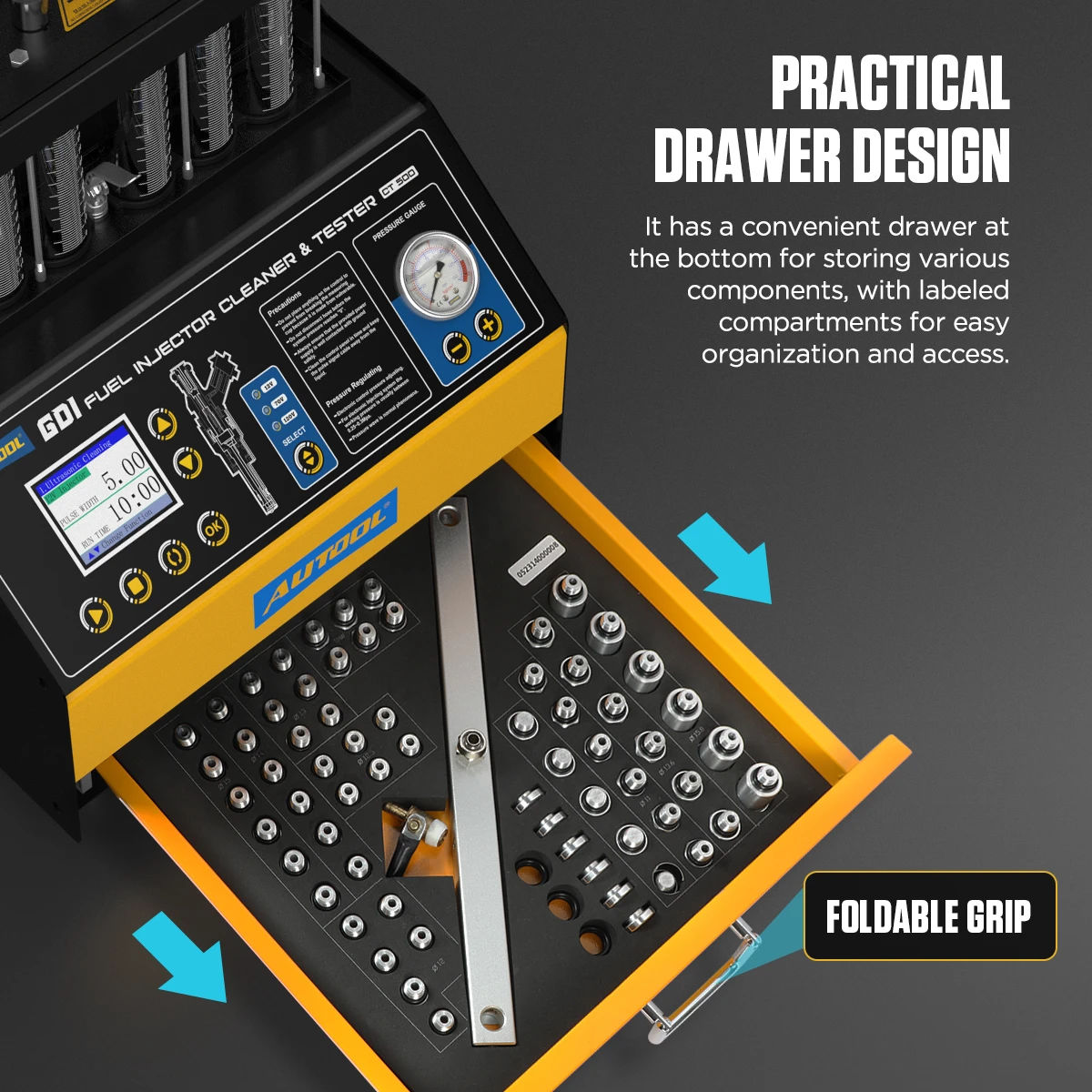

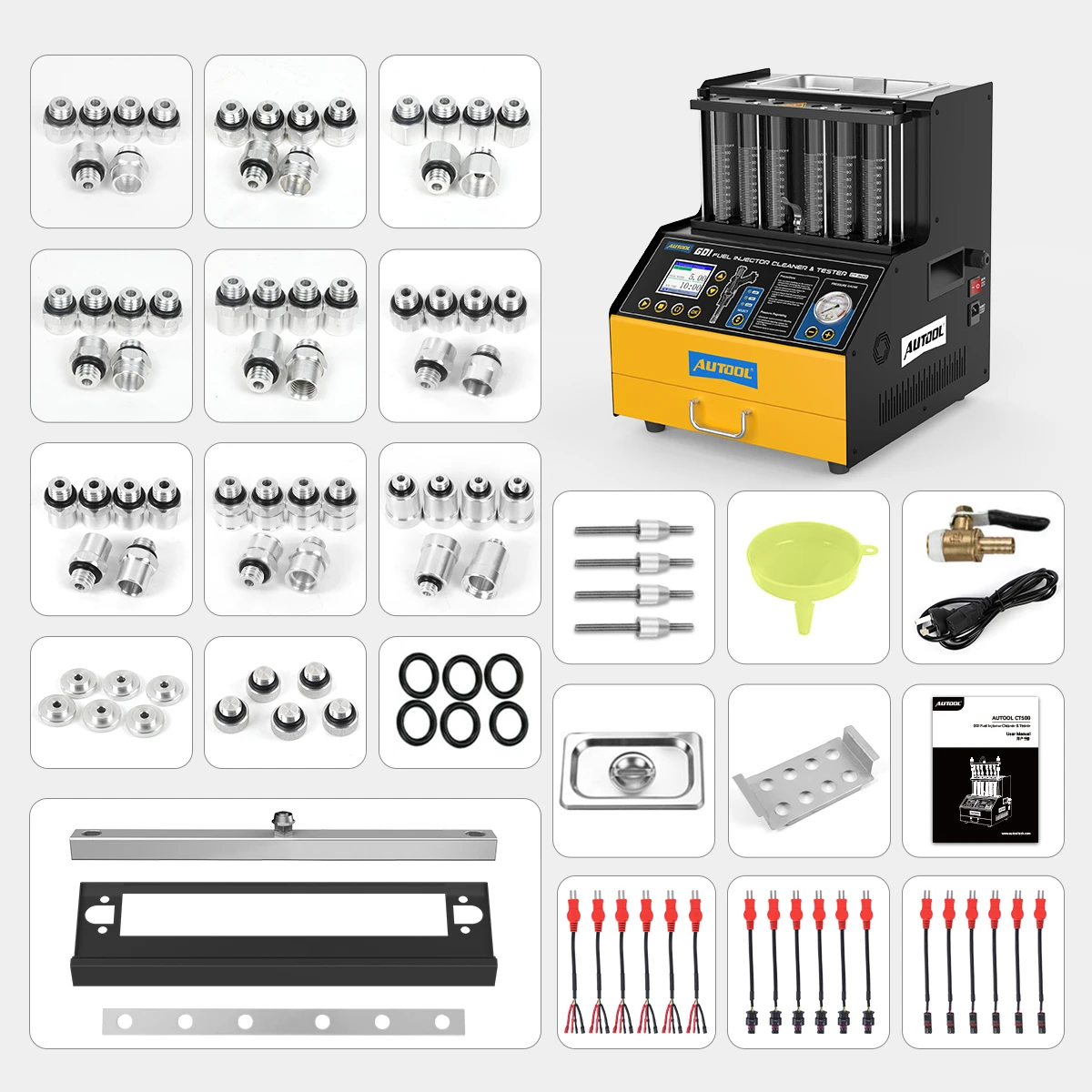

- Equipped with multiple parts and portable drawer: patented and applicable to a variety of models of composite connectors to meet your different needs. The portable drawer at the bottom is convenient for storing and accessing accessories, effectively preventing the loss of parts.

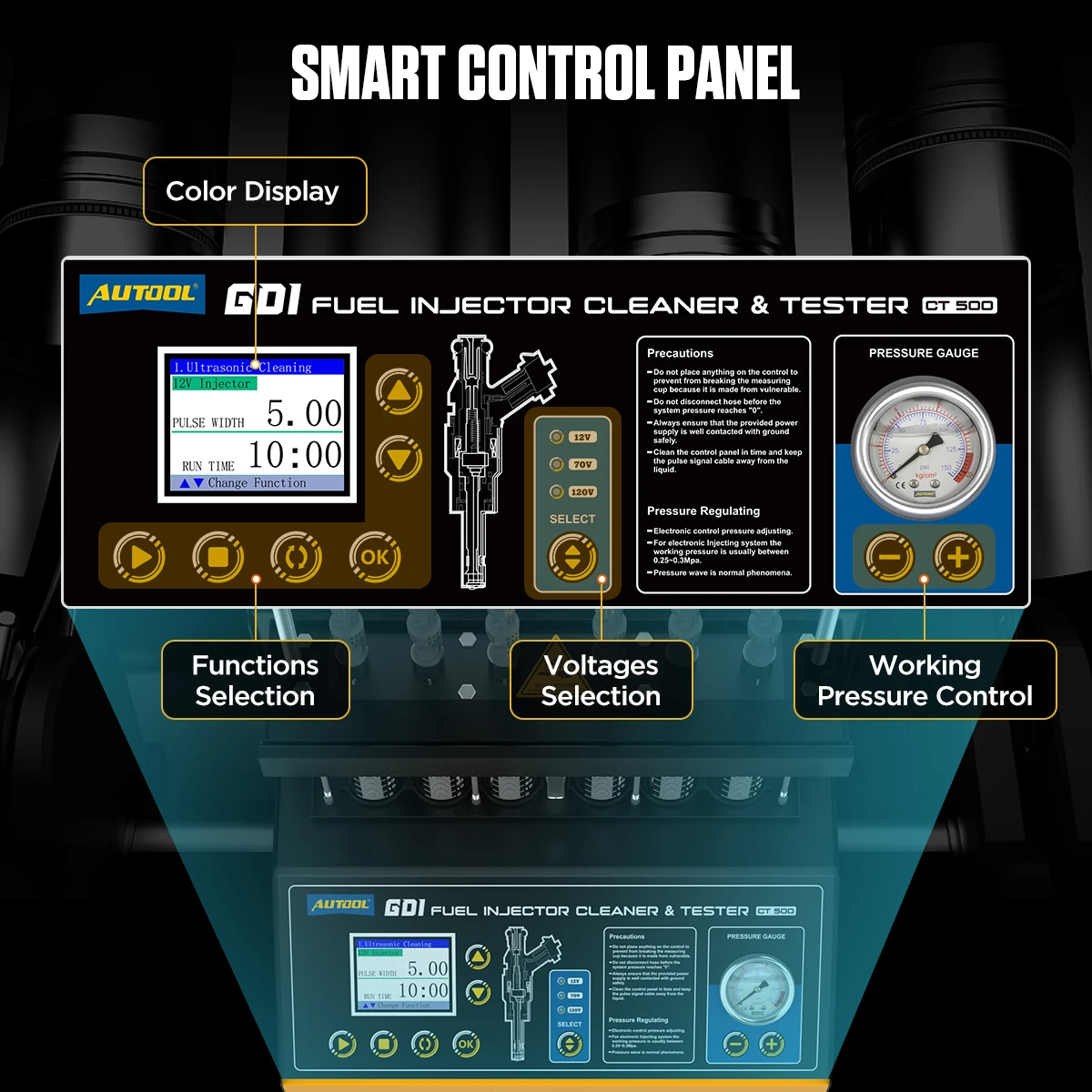

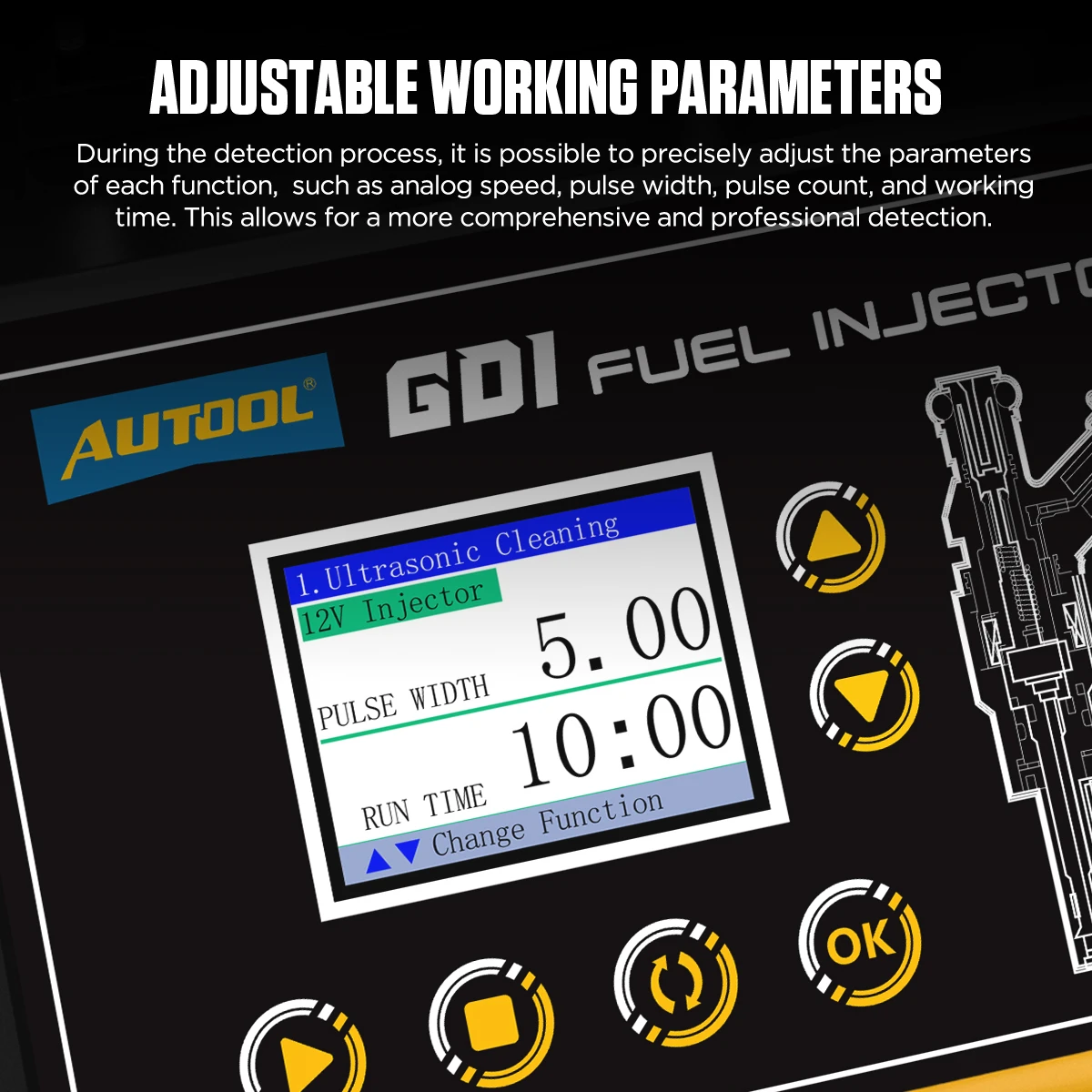

- Unique Design: Adopting a high-definition color display screen, it is clear and easy to operate and learn. Electronic regulator control technology can make the oil pressure stable and wide adjustable range.

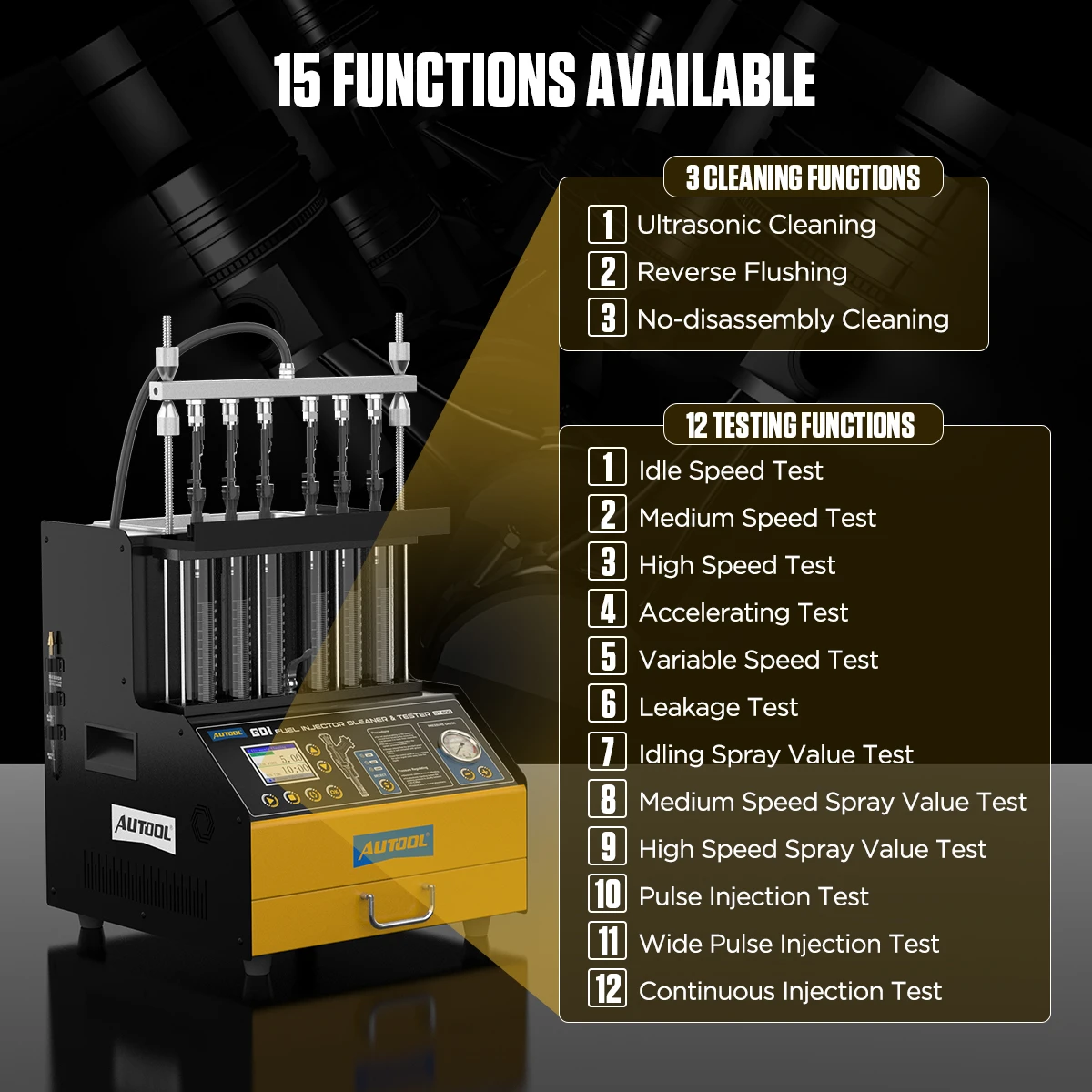

Functions

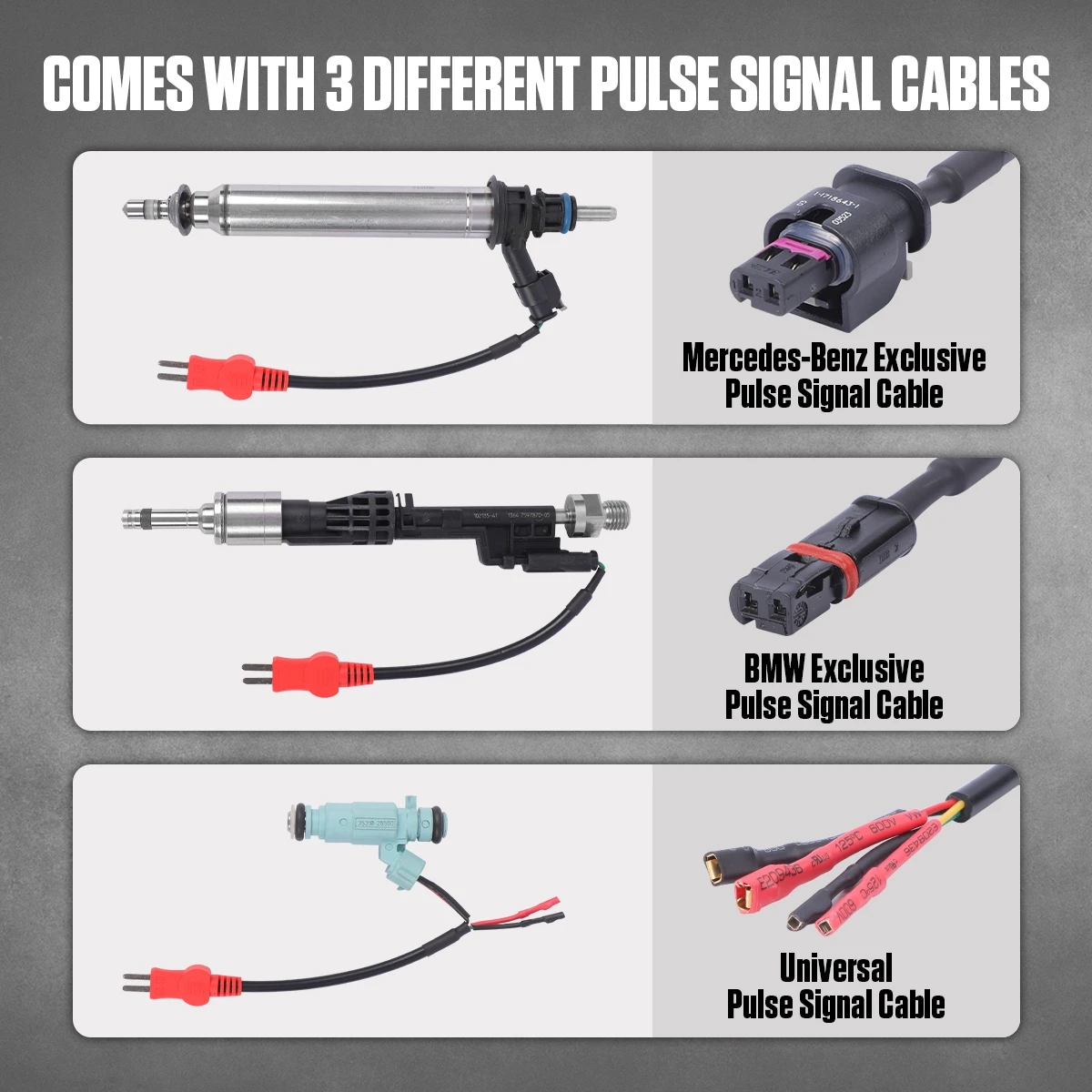

- Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.
- Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.
- Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.
- High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.
- Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.
- Variable Speed Test: Simulate the variable Speed of the car and test the working performance of the fuel injector.
- Leak Test: Test the sealing condition of the fuel injector.
- Idle speed sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.
- Medium-speed sprayability test: Simulate the engine’s medium-speed state and test the spraying performance of the fuel injector.
- High-speed sprayability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.
- Flow Balance Test: The flow balance test shall be carried out at different speeds.
- Observation of Fuel Injection Shape: Observe whether the fuel injection shapes and angles of all fuel injection nozzles on the same car are uniform at various speeds.
- Reverse flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector).
- Leak Detection Test: The leak detection test is to detect the tightness of the injector needle valve under the high pressure of the system.
- No-disassembly cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, that requires special adapters.
How To Choose Test Fluid And Cleaning Fluid?
- Test Fluid: The test fluid is used to test and judge whether the performance of the fuel injector is in good condition. It is a colorless and transparent liquid with no irritating odor, non-corrosive, and not easy to emit. Its function is to simulate various working states of the fuel injector as a medium. In order to achieve the best test effect, it is recommended to use professional automotive injector test fluids. If it is not available locally, as an alternative, it’s recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the test fluid.
- Cleaning Fluid: Cleaning fluid is used to clean deposits (such as carbon deposits) on fuel injectors, and it is usually highly corrosive and flammable. In order to achieve the best test effect, it is recommended to use professional injector ultrasonic cleaning fluid. If it is not available locally, it’s recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the cleaning fluid, but note that the effect may not be good enough.
