Technical Specifications
PROCESSOR
CORTEX M3 STM32F103 72MHz
MEMORY
External SRAM: 8 MBit organised in 512 K x 16 bit
External NAND flash memory: 2 Gbit on 8 bit bus
INTERNAL BATTERY
Lithium polymer, single cell, 3.7 V 250 mA/h
VEHICLE ELECTRICS
12 VDC vehicle systems
EXTERNAL POWER SUPPLY
8 ÷ 16 V
WIRED CONNECTION
Virtual RS232 with
USB
2.0 Device
WIRELESS CONNECTION
Bluetooth Class 1
ELECTRONIC SWITCHING
2 way, 13 independent positions
DIAGNOSTICS CONNECTOR
OBD
ENVIRONMENTAL
Operating temperature: 0 ÷ 50 °C
Storage temperature: -20 ÷ 60 °C
Operating relative humidity: 10% ÷ 80% without condensation
DIMENSIONS
51x23x100 mm
WEIGHT
72 g
PROTOCOLS SUPPORTED
Blink codes, K, L (with 60mA current protection) ISO 9141-2, ISO 14230, CAN ISO 11898-2, CAN ISO 11898-3, SAE J1850 PWM and VPW
REGULATIONS
Directive: 1999/5/EC
Safety: EN 60950-1
Electromagnetic Compatibility: EN 301 489-1, EN 301 489-17
Radio systems: EN 300 328-2

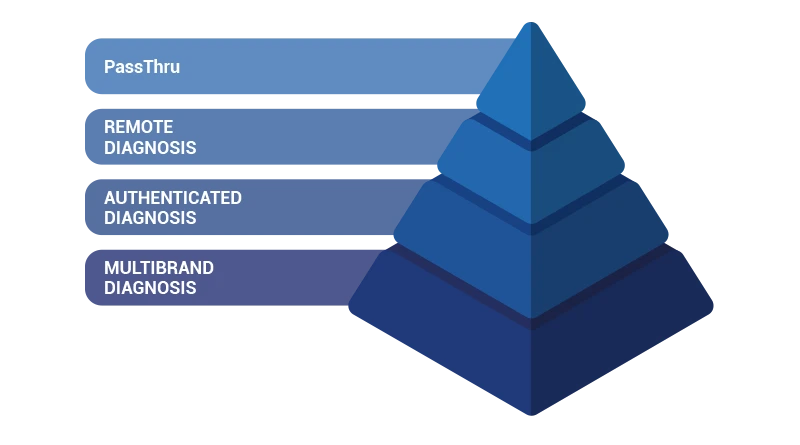

OPERATIVE SOFTWARE IDC5 AND MSS

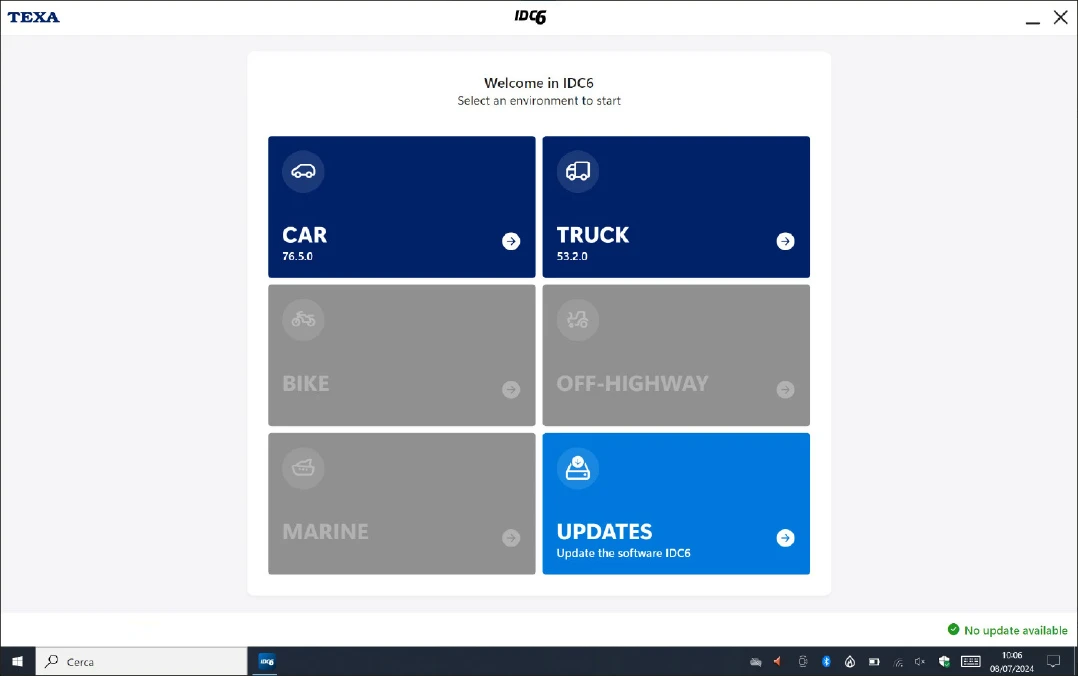

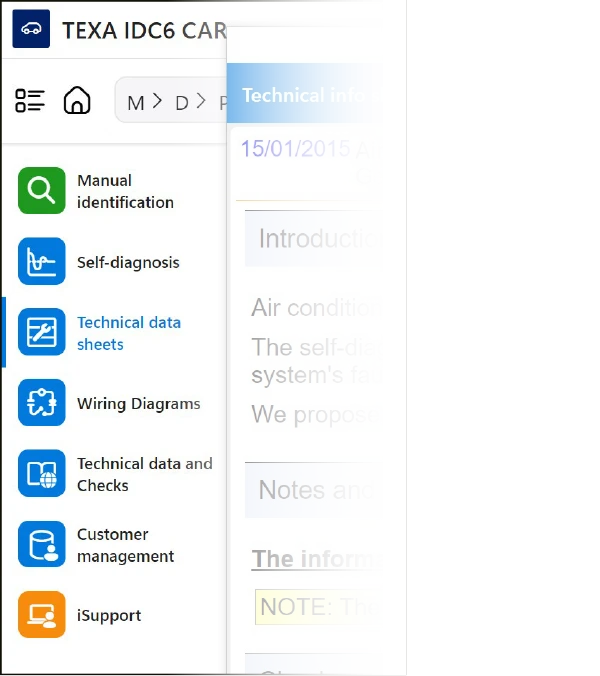

TwinProbe, like all TEXA instruments, use the operative environment IDC5, the diagnosis and self-diagnosis software with built-in databank and exceptional coverage of makes and models.
IDC5 is available both in a standard version for PC, MULTI PEGASO and AXONE 4, as well as in a POCKET version for portable viewing units of the AXONE line, but the software potential is the same in all. The wireless Bluetooth connection or connection via USB cable, allows for the transfer of data from the instrument to the viewing unit.
For those not having and not wishing to acquire the complete operative platform IDC5, MSS (Measurement System Software) is available, specific for TwinProbe, which enables only the functions of oscilloscope, battery probe, TNET, multimeter, pressure test and signal generator in manual mode.
SIV FUNCTION
The oscilloscope test carried out with TwinProbe guarantees excellent detection of values and a precise identification of the measurement; but what the mechanic most needs is an efficient system to help him correctly identify the graphs processed by the instrument. In order to declare if the signal analysed is correct or not, it is, however, necessary to have reference data, values that clearly show which are the critical points to be analysed.
This is why TEXA has developed a support that guides the mechanic throughout the test. The function developed is a software algorithm named S.I.V. (Signal Information Viewing). Thanks to this system, TwinProbe do not simply view the signal; as they take the measurements and acquire the data, they process all information, analyse it and supply an assessment in real time.
They are, in fact, able to process the signals of the various sensors or actuators concerned by the measurement and compare the data acquired with that present in the internal database, thereby immediately showing any signal anomalies. This mode can be used simply and quickly, starting from the wiring diagram of the system to be analysed or the list of components.
By selecting the device to be verified, we automatically activate the oscilloscope, which is already configured to correctly test the component.
A PROFESSIONAL OSCILLOSCOPE
TwinProbe are two instruments offering exceptional performance and extremely high reliability levels. Whilst TwinProbe incorporates a digital oscilloscope with a channel for 40 Msamples/sec or two channels for 20 Msamples/sec with inputs extended up to ± 200 Volts. This performance is distinctly higher than that offered by other solutions available on the market.
SIGNAL GENERATOR
TwinProbe are able to operate as a PWM signal generator for device testing. Tests can be carried out on mechanical components such as actuators, pressure switches of diesel engines, turbine blades or the EGR valve. Thanks to UNIProbe and TwinProbe, it can be assessed whether the anomaly depends on an electronic malfunction or a mechanical breakage. By using UNIProbe and TwinProbe in combination with the software IDC4, adjustments can be made and the effects observed by comparing them with the parameters proposed by the self-diagnosis
