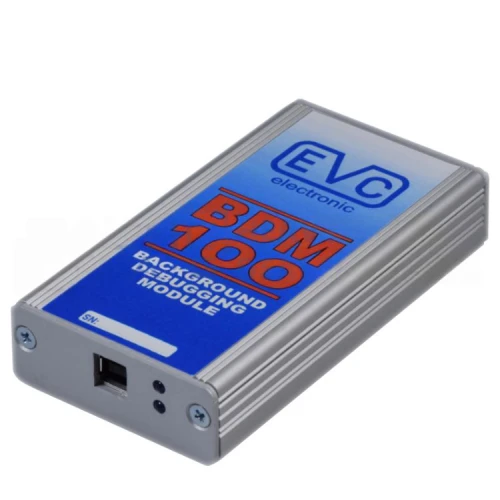

BDM100.K | EVC | Programming Device For ECU Modules

BDM100 - opens the door to tuning almost all generations of engine control modules (ECUs).

Price:

1,015.70€

: In Stock! Estimated Delivery Time: 2-4 Days
Brand: EVC
Model: BDM100
SKU: BD99451

Qty

Buy now

Ask Question

Add to Wish List

Description

Programming device for internal combustion engine control modules BDM100.K

Since manufacturers have introduced new generation control module protection systems, standard programming using the OBD2 connector has become more and more complex. BDM100 - will give you the ability to adjust parameters of engine control modules (ECUs) that use Motorola MPC555-565 microprocessors.

This generation of Motorola microprocessors store about 448 Kb - 1 Mb of data. That stored memory cannot be read or reprogrammed using an EPROM programmer. But, this is possible using a special BDM interface that must be installed on each engine control module (ECU) board. 10 soldering points are usually reserved for this purpose.

Also, there are motor control modules with 12 or 14 soldering points, through which the board can be supplied with working voltage.

With BDM100 you will be able to connect these BDM solder points with WinOLS software on PC. The BDM100 device is supplied with power via a USB cable, and the ECU requires its own 12V power supply.

Currently, the interface with the following ECUs has been successfully tested

Manufacturer	Specification	Vehicles	Processor	EPROM	EEPROM	Probe
Bosch	BMS-K	BMW K1200RS	MPC562	M58BW016	-	BDM143
Bosch	EDC16	VAG, BMW, MB, PSA	MPC556	AM29BL802	ST95320	BDM143
Bosch	EDC16+	PSA, BMW	MPC562	M58BW016	ST95160	BDM143
Bosch	EDC16+	VAG	MPC564	M58BW016	ST95320	BDM143
Bosch	EDC7	MAN, Iveco	MPC556	-	ST95640	BDM141, 143, 144
Bosch	ME9.0C	Volvo, Ford Focus ST	MPC562	M58BW016	ST95080	BDM143
Bosch	ME9 BMW	BMW R4 + V8	MPC555	2 x 28F800F3	ST95160	BDM143
Bosch	ME9-2 BMW	BMW R4 + V8	MPC564	M58BW016	-	BDM143
Bosch	ME9-3 BMW	BMW R4 + V8	MPC564	S29CD016	-	BDM143
Bosch	ME9.7 MB	MB 350, 500	MPC564	M58BW016	ST95160	BDM141*
Bosch	MED9.1 VAG	VAG 2.0L TFSI	MPC562	M58BW016	ST95160	BDM143
Bosch	MED9.5.20 VAG	VAG 1.6 / 2,0L FSI	MPC562	M58BW016	ST95080	BDM143
Bosch	MED9.6.1 MB	Ferrari F12	MPC562	M58BW016	ST95080	BDM143
Bosch	MED9.7 MB	MB C350	MPC564	M58BW32FB	ST95080	BDM150.L*
Caterpillar	PPCCMF	Massey Ferguson	MPC555	-	AT25640	BDM142*
Chrysler	ETC5	Chrysler 300C	MPC565	-	-	BDM149*
Deere	L14	John Deere	MPC564	-	?	BDM149*
Delphi	-	Jaguar, Ford 2.0TDCI	MPC555	-	?	BDM142*
Delphi	DCM3.2	MB, Kia, Ssangyong	MPC564	?	?	BDM147*
Delphi	-	Isuzu Dmax	MPC561	M58BW016	AT25320	BDM149*
Marelli	MJD	Opel, Fiat	MPC555	-	ST95320	BDM144*
Siemens	MS45	BMW 6-cyl.	MPC555	AM29BL802	ST95320	BDM141*
Siemens	MSS60	BMW M3 E92/93	MPC564 x 2	AM29BDD160 x 2	-	BDM141* + BDM144*
Siemens	MSS65	BMW M5 V10	MPC563 x 2	AM29BDD160 x2	-	BDM141* + BDM144*
Siemens	MSV70 / MSS70	BMW 3.0i	MPC563	AM29BDD160	ST95320	BDM141*
Siemens	PPD1.X	VAG 2.0 TDI	MPC561	AM29BDD160	-	BDM144*
Siemens	SID201	Jaguar / Land Rover 2.7D V6	MPC563	M58BW016	ST95320	BDM141*
Siemens	SID202	Ford 1.8TDCI	MPC563	M58BW016	ST95320	BDM141*
Siemens	SID203	Jaguar 2.7D	MPC563	M58BW016	ST95320	BDM141*
Siemens	SID204	Land Rover	MPC563	M58BW016	ST95320	BDM141*
Siemens	SID206	Ford S-Max	MPC563	M58BW016	ST95320	BDM141*
Siemens	SID803	Volvo Diesel	MPC555	AM29BL802	ST95320	BDM141*
Siemens	SIM266	MB A200	MPC561	AM29BDD160	-	BDM145*
Siemens	SIM2K	Hyundai	MPC561	S29CD016	-	BDM144*
Siemens	SIM90E	Dodge Caliber 1.8L	MPC561	AM29BDD160	-	BDM141*
Siemens	SIM90P	Dodge Avenger 2.4L	MPC561	S29CD016	-	BDM141*
Siemens	Simos 6.x	Audi A6 2,4L, V6	MPC561	AM29BDD160	-	BDM146*
TRW	EMS2	Volvo LKW, Renault LKW	MPC565	-	ST95160	BDM143

*- an additional external power supply is required
