Name: Automatic A/C Service Station | BD-90 PRO | R1234yf
Brand: BALTICDIAG
SKU: BD-90 PRO
Price: 1652.00 EUR
Availability: InStock

Automatic A/C Service Station | BD-90 PRO | R1234yf

-17 %

Automatic A/C Service Station | BD-90 PRO | R1234yf

Refrigerant type: R1234yf

Disclaimer: This product does not include free shipping. For delivery pricing and additional information, please contact us directly.

Price:

1,652.00€

1,999.00€

: In Stock! Estimated Delivery Time: 2-4 Days
Brand: BALTICDIAG
Model: BD10002
SKU: BD-90 PRO

Qty

Buy now

Ask Question

Add to Wish List

Description

Disclaimer: This product does not include free shipping. For delivery pricing and additional information, please contact us directly.

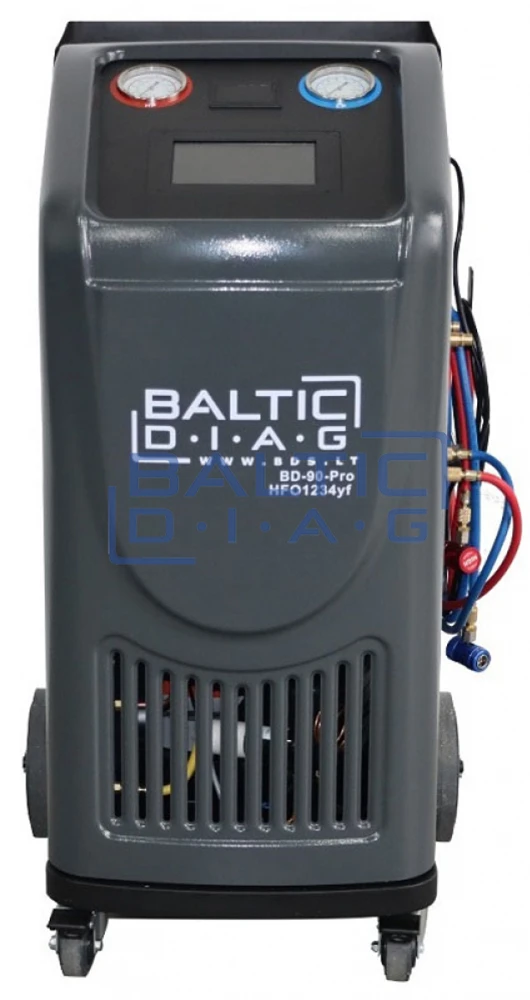

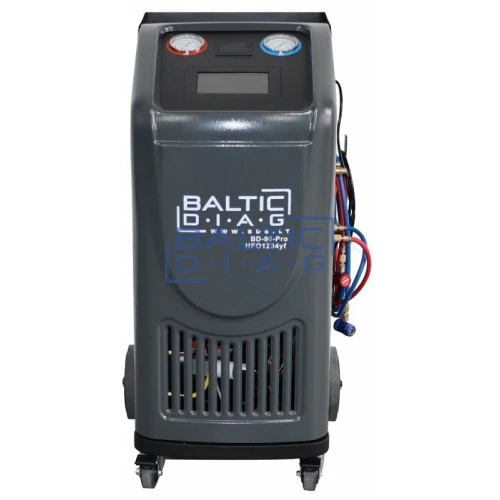

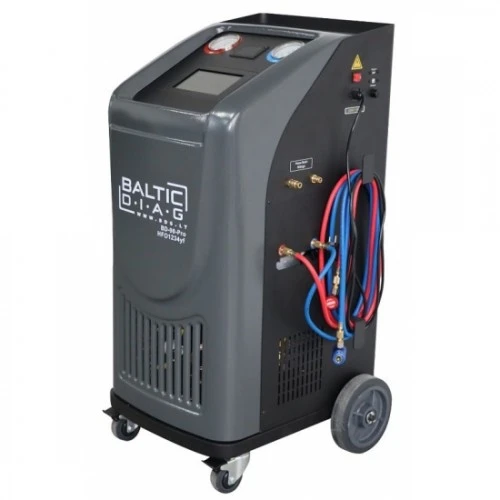

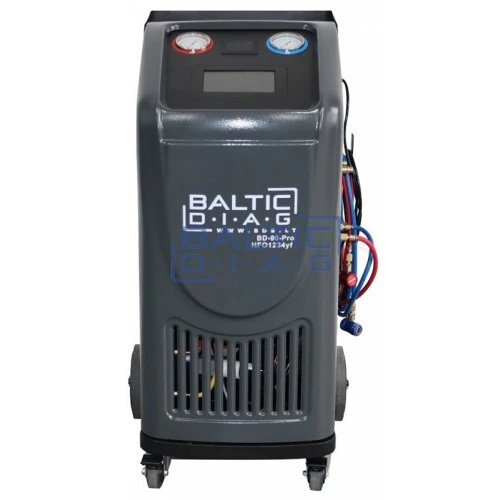

Automatic A/C Service Station BD-90 PRO

The automated station model is designed for professional and fast filling of the air conditioning system. This equipment has all the basic functions and characteristics required for professional work with R1234yf Freon air conditioning systems. The station performs the functions of removal, vacuuming, permeability, filling and oil extraction. There is an integrated database to service the most popular car brands.

More than 20 languages: English, Russian, Polish, Estonian, German, French, Spanish and more.
There are several thousand car models in the database up to 2017.
At AC stations, customers can independently install the database of their desired cars.

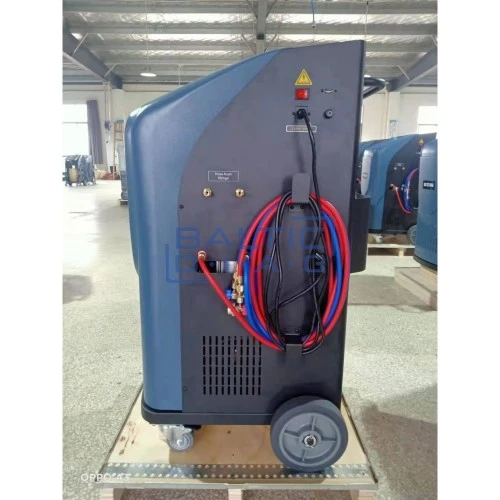

HP and LP hose lengths are 3 meters each, making this station particularly mobile and easy to use.
A simple but high-quality connection system guarantees safe operation in processes such as Freon extraction and recycling; vacuum / leak check; pressure testing.
Conditioner refill with built-in printer so you can print results when you're done.
Oil extraction: automatic extraction of oil, as well as separation and cleaning of the entire system with simple extraction functions.
The station has large casters and two front smaller castors that lock. This will give you mobility and comfort when working on uneven floors.
Easily accessible vacuum pump for easy oil change.
Suitable for use not only for cars, but also for heavy transport.
When used in conjunction with additional equipment, this air conditioning filling station can work with electric cars and hybrid cars

Functions and features

Operating mode: automatic
Freon extraction: automatic
Freon filling: automatic
Oil removal: automatic
Vacuuming: automatic
Leak test: automatic
UV injection: yes
Vacuum leakage test: yes

Condenser and cooling fan: Available
Printer: Available
Flushing function: yes
Support for hybrid A / C systems: None
Touch screen
Filling hose cleaning program
Integrated electronic scales for oil tanks
Simple calibration of electronic scales

Available Languages:

English, Russian, Chinese, Spanish, Polish, Indonesian, Czech, Turkish, Croatian, Serbian, French, Swedish, Bulgarian, Dutch, Finnish, Korean, German, Thai, Lithuanian, Vietnamese, Portuguese, Greek, Danish.

Frequently Asked Questions

Do you offer international shipping for your products? ❯: Yes, we offer fast and free international express shipping for all products available at Balticdiag.com. We deliver worldwide — including USA, Europe, North America, South America, Asia, Africa, and Australia — using trusted courier services like DHL, UPS, and FedEx. Every order is shipped with express delivery straight to your door, ensuring quick and secure arrival. Shipping fees are included in the product price, and we provide full tracking information for each shipment so you can follow your package from dispatch to delivery.
How can I pay for my order on Balticdiag.com? ❯: We accept a wide range of secure global and local payment methods, including:

Credit & Debit Cards: Visa, Mastercard, American Express, Discover, Diners Club, JCB, China UnionPay, Cartes Bancaires (France)

Digital Wallets: Apple Pay, Google Pay, PayPal, Alipay, Revolut Pay, MobilePay (Denmark & Finland), Link with Instant Bank Payments (USA)

Local Payment Methods: Bancontact (Belgium), BLIK & Przelewy24 (Poland), iDEAL (Netherlands), giropay (Germany), EPS (Austria), Klarna (buy now, pay later), SEPA Direct Debit (EU), Kakao Pay, Naver Pay, PAYCO (South Korea)

Bank Transfers: We also support traditional wire transfers.

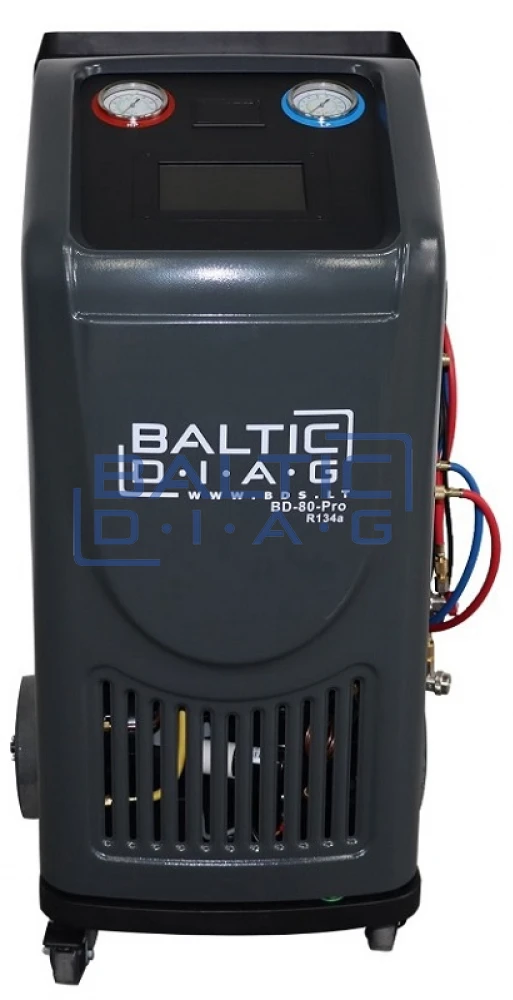

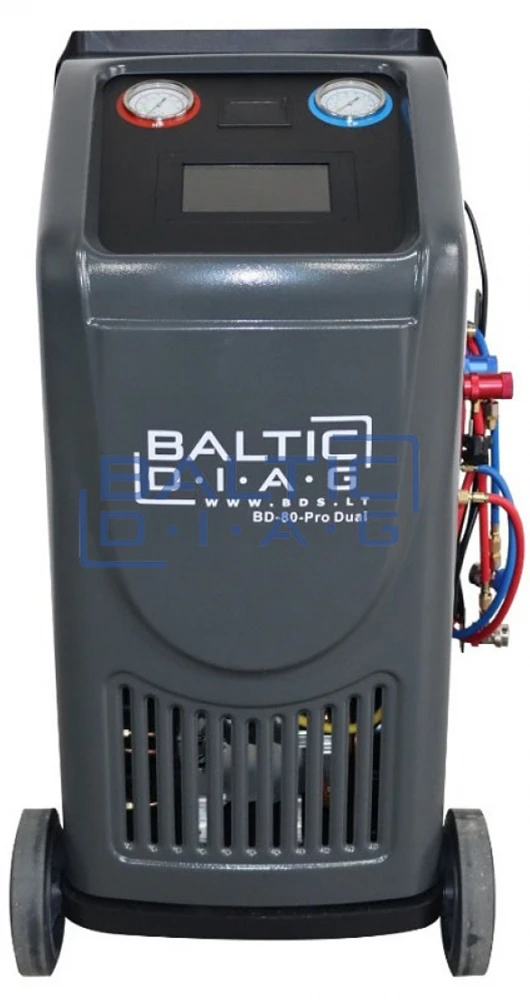

	BD-80 PRO	BD-90 PRO	BD-80 PRO DUAL
Freon	R134a	R1234yf	R134a / R1234yf
Working mode	Automatic	Automatic	Automatic
Freon extraction	Automatic	Automatic	Automatic
Extraction accuracy	>95%	>95%	>95%
Oil extraction	Automatic	Automatic	Automatic
Vacuuming	Automatic	Automatic	Automatic
Vacuum leak test	Automatic	Automatic	Automatic
UV injection	Yes	Yes	Yes
Freon filling	Automatic	Automatic	Automatic
Printer	Yes	Yes	Yes
HP and LP valves on the panel	2	2	2
HP and LP pressure indicators	80 mm	80 mm	80 mm
Length of service hoses	3 meters	3 meters	3 meters
Screen	7” Touchscreen	7” Touchscreen	7” Touchscreen
Compressor	3/8 AG	3/8 AG	3/8 AG
Vacuum pump	120 l/min	120 l/min	120 l/min
Freon tank capacity	13.6 kg	13.6 kg	13.6 kg
New oil capacity	250 ml	250 ml	250 ml
Used oil capacity	400 ml	400 ml	400 ml
Dimensions	560 x 630 x 1070 mm	560 x 630 x 1070 mm	650 x 760 x 1055 mm
Power supply	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz
Car database	Yes	Yes	Yes

Refrigerant type:	R1234yf
Manual control valves:	2
Screen:	7"color, touch
Refrigerant volume:	13.6 kg
Accuracy:	± 10 g
Freon filling speed:	2000 g / min
Recirculation speed:	250 g / min
HP indicator range:	-1 ~ 30 bar
LP indicator range:	-1 ~ 16 bar
Recovery rate:	≥95%
Compressor power:	3/8 hp
Vacuum pump speed:	120 l / min

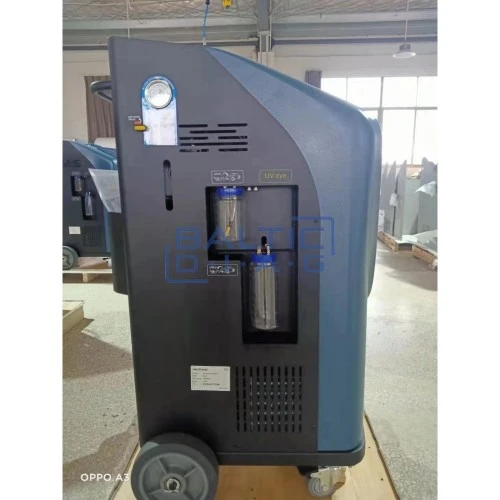

Number of oil bottles:	3 pcs.
New oil bottle capacity:	250ml
Used oil bottle capacity:	400ml
New / used oil / UV measurement accuracy:	± 5 g
Power supply:	AC220V 50 / 60Hz
Power:	280W
Max. pressure:	20 bar
Dimensions:	560x630x1070mm


	BD-80 PRO	BD-90 PRO	BD-80 PRO DUAL
Freon	R134a	R1234yf	R134a / R1234yf
Working mode	Automatic	Automatic	Automatic
Freon extraction	Automatic	Automatic	Automatic
Extraction accuracy	>95%	>95%	>95%
Oil extraction	Automatic	Automatic	Automatic
Vacuuming	Automatic	Automatic	Automatic
Vacuum leak test	Automatic	Automatic	Automatic
UV injection	Yes	Yes	Yes
Freon filling	Automatic	Automatic	Automatic
Printer	Yes	Yes	Yes
HP and LP valves on the panel	2	2	2
HP and LP pressure indicators	80 mm	80 mm	80 mm
Length of service hoses	3 meters	3 meters	3 meters
Screen	7” Touchscreen	7” Touchscreen	7” Touchscreen
Compressor	3/8 AG	3/8 AG	3/8 AG
Vacuum pump	120 l/min	120 l/min	120 l/min
Freon tank capacity	13.6 kg	13.6 kg	13.6 kg
New oil capacity	250 ml	250 ml	250 ml
Used oil capacity	400 ml	400 ml	400 ml
Dimensions	560 x 630 x 1070 mm	560 x 630 x 1070 mm	650 x 760 x 1055 mm
Power supply	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz
Car database	Yes	Yes	Yes

Refrigerant type:	R1234yf
Manual control valves:	2
Screen:	7"color, touch
Refrigerant volume:	13.6 kg
Accuracy:	± 10 g
Freon filling speed:	2000 g / min
Recirculation speed:	250 g / min
HP indicator range:	-1 ~ 30 bar
LP indicator range:	-1 ~ 16 bar
Recovery rate:	≥95%
Compressor power:	3/8 hp
Vacuum pump speed:	120 l / min
Number of oil bottles:	3 pcs.
New oil bottle capacity:	250ml
Used oil bottle capacity:	400ml
New / used oil / UV measurement accuracy:	± 5 g
Power supply:	AC220V 50 / 60Hz
Power:	280W
Max. pressure:	20 bar
Dimensions:	560x630x1070mm
