Professional multi-brand diagnostic equipment for trucks, vans, buses, and trailers. Industrial-type equipment with PC-based software allows one to perform such functions as reading and deleting trouble codes with definitions, reading data stream, test-activation, coding, adaptation, and many others, including ADAS calibration and Flight Recorder function. Autocom TITAN is equipped with a standard OBD-II 16-pin adapter, has Wi-Fi/Bluetooth/USB communication, is compatible with TRUCKS and add-on TRAILER software powered by WABCOWÜRTH and can be used with additional Autocom adapters.
900200650 - 2+2 pin VAG OBD test cable
900200651 - 14 pin OBD test cable
900200652 - 10 pin Opel OBD test cable
900200653 - 2 pin PSA OBD test cable
900200654 - 30 pin PSA OBD test cable
900200656 - 10 pin SAAB OBD test cable
900200657 - 3 pin FIAT OBD test cable
900200658 - 20 pin BMW OBD test cable
900200659 - 38 pin MB OBD test cable
900200660 - F.V.V OBD test cable for older models of Ford, Volvo, VAG
900200673 - 38 pin Iveco OBD test cable
900200917 - power cable
900200279 - case
900200650 - 2+2 pin VAG OBD test cable
900200651 - 14 pin OBD test cable
900200657 - 3 pin FIAT OBD test cable
900200659 - 38 pin MB OBD test cable
900200660 - F.V.V OBD test cable for older models of Ford, Volvo, VAG
900200661 - 8 pin Volvo Truck OBD test cable
900200662 - 16 pin Scania/DAF Truck OBD test cable
900200663 - 12 pin MAN Truck OBD test cable
900200664 - 37 pin MAN Truck OBD test cable
900200665 - 30 pin Iveco Truck OBD test cable
900200666 - 12 pin Renault Truck OBD test cable (rev.2)
900200667 - 4 pin Haldex Trailer OBD test cable
900200669 - 7 pin Knorr/Wabco Trailer OBD test cable
900200671 - 4 pin Haldex (ECU) Trailer OBD test cable
900200693 - 7pin ISO 7638 Trailer OBD test cable (new version)
900200673 - 38 pin Iveco OBD test cable
900200675 - 7 pin Knorr Trailer OBD test cable
900200677 - 9 pin Deutsch OBD test cable
900200679 - 4+4 pin Haldex ABS Trailer OBD test cable
900200681 - 9 pin Bus cable
900200682 - 3+6+9 pin ZF OBD test cable
900200683 - 18 pin Knorr test cable
900200684 - 15 pin WABCO test cable
900200685 - 25 pin WABCO test cable
900200686 - 35 pin WABCO test cable
900200687 - 5 pin Mini USB cable
900200688 - 9 pin Hübner test cable
900200691 - 16 pin power adapter
900200917 - power cable
900200279 - case
The Panasonic Toughbook C2 is a rugged 2-in-1 laptop designed to withstand challenging environments.
MK1 version Processor: Intel Core i5-3427U 1.8GHz
MK2 version Processor: Intel® Core i5-4300U vPro
RAM: 8GB DDR3
Display: 12.5" HD 1366 x 768 + 500nit.
Connections: Intel® Dual Band Wireless-N 7260 802.11a/b/g/n, Bluetooth 4.0, 4G LTE USB 3.0: x2, USB 2.0: x1, LAN Connector: RJ-45, HMDI: x1,
More information: https://www.balticdiag.com/refurbished-diagnostic-laptops-tablets/panasonic-cfc2-refurbished-rugged-diagnostic-laptop
Panasonic CF-54 is a rugged laptop designed to use in challenging environments. That is why we include it free of charge to our diagnostic kit.
MK2 version Processor: Intel Core i5-6300U (2.4GHz with Turbo Boost up to 3.0GHz, 3MB cache, vPro)
RAM: 16GB DDR3
Display: 14" HD 1366 x 768
Dimensions: 6 lbs - 15.5 x 5 x 15.5 inches
Connections: 3 x USB 3.0 (includes 1 high powered 1.5A USB), HDMI, 10/100/1000 Ethernet, Headphones/Mic jack, SD card reader, port replicator connector, Wi-Fi, Bluetooth
More information: https://www.balticdiag.com/panasonic-cf-54-refurbished-diagnostic-laptop
The Panasonic CF-53 from BALTICDIAG is a popular choice for a diagnostic laptop or workshop laptop due to its rugged design and reliability
MK3 version Processor: Intel Core i5-540M 2.53GHz
MK4 version Processor: Intel Processor i5-2540m 2.60Ghz (Boost 3.3Ghz 3MB L2 1066Mhz FSB)
MK5 version Processor: Intel Processor i5-3360M 2.80GHz
RAM: 4GB DDR3
Display: 15.4" Active Matrix (TFT) colour LCD 1920 x 1200 pixels (WUXGA)
Dimensions:355.7mm x 50.7-51.9mm x 286.8mm/14.0" x 2.0" x 11.3" (including carrying handle)
Connections: VGA port Mini Dsub, 15-pin, Headphones Mini-jack, 3.5 DIA, stereo, Microphone Mini-jack, 3.5 DIA, stereo, USB 2.0 x4, 4-pin
More information: https://www.balticdiag.com/refurbished-diagnostic-laptops-tablets/panasonic-cf52-refurbished-rugged-diagnostic-laptop
Processor:Intel® Core™ i5 – 6300U
RAM: 8 GB
Display: 13.3″ IPS 1366 x 768 Touchscreen
Dimensions: 349mm x 46mm x 244mm (13.7″ x 1.8″ x 9.6″)
Connections: Intel® Dual Band Wireless-AC 8260, IEEE 802.11 a/b/g/n/ac compliant, Bluetooth 4.1 + EDR Class 1, USB 3.0 Type A x1, USB 2.0 Type A x2, Audio Headphone and Microphone mini-jacks, 3.5 DIA Stereo x2
More information: https://www.balticdiag.com/refurbished-diagnostic-laptops-tablets/panasonic-cf-d1-refurbished-rugged-tablet
Processor:3rd generation Intel® Core™ i5-3360M (2.80 GHz, 3MB L3, 1600MHz FSB)
3rd generation Intel® Core™ i5-3320M (2.60 GHz, 3MB L3, 1600MHz FSB)
RAM: 4 GB
Display: 14.0” HD (1366 x 768) (200 NITS)
Dimensions: 340.5mm x 232mm x 29.9mm (13.8" x 9.13" x 1.18")
Connections: MiniDisplayPort with audio, VGA, (2) USB 3.0, (1) USB 2.0, 3.5mm Combo Jack Headphone/MIC, Always on USB 2.0,
4-in-1 SD Card Reader (SD/SDHC/SDXC/MMC slot)
More information: https://www.balticdiag.com/refurbished-diagnostic-laptops-tablets/business-class-lenovo-refurbished-diagnostic-laptop
Processor: Intel® Core™ i5-1145G7 processor
RAM: 8GB DDR4
Display: 14.0" HD
Dimensions:4.6 lbs. 10.7 (L), 13.6 (W), 1.3 (H)
Connections: Wi-Fi 6, Bluetooth®, USB-A x 2 ,Thunderbolt™ 4 USB-C (w/PD), MicroSDXC, HDMI, Ethernet, Audio In/Out, Nano-SIM.

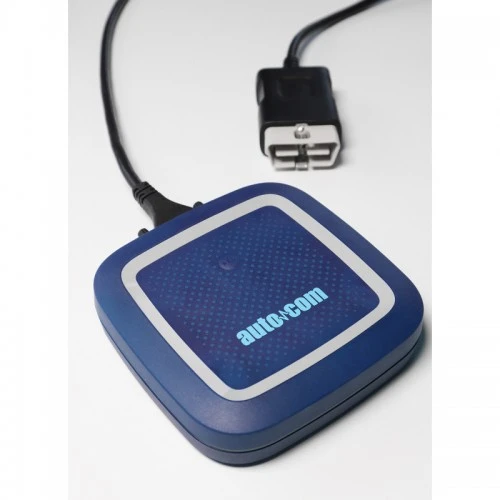

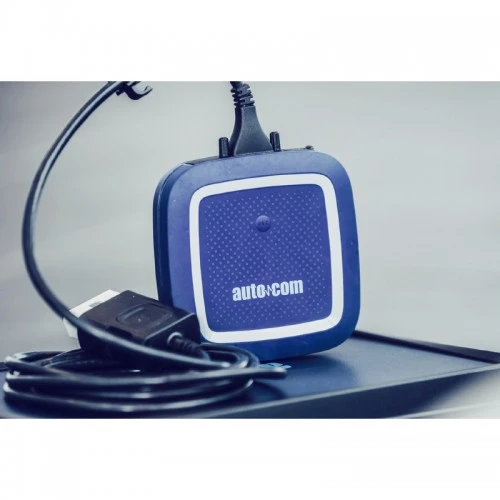

TITAN is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles. Simply connect TITAN to the diagnostic socket in the vehicle and it will communicate wirelessly with the diagnostic software installed on your PC.
The softwares are updated regularly with new vehicle models and added functionalities. TITAN and diagnostic softwares are developed and produced in Trollhättan, Sweden by Autocom.
With TRUCKS software, you are able to perform brand specific diagnostics for
light and heavy commercial vehicles, buses and trailers from 1995 onwards.
GENERIC software is designed for the legislation based diagnostics, specially
targeted for emission related fault codes. GENERIC is included in TRUCKS.
TRAILER software powered by WABCOWÜRTH, you get access
to the original software for diagnosis of WABCO and Haldex systems on trailers.
With TITAN and the add-on TRAILER powered by WABCOWÜRTH, it is possible to use original software from WABCO and Haldex. Program, calibrate, adjust and make settings on a trailer control unit that you otherwise only have the option of in an OEM tool.
TITAN is designed to endure rough conditions in the workshop. It has a protective rubber cover and all connections are covered with protective caps. A small but useful feature is the hook attached to the cable. This makes it possible for TITAN to be hanged on the truck window when in use or on a tools cabinet for storage.
With the multicolour indicator on TITAN, you have full control of the diagnostic process. Different colors and sounds communicate the status and the placement of the indicator allows you to see it from a far. For example, if the indicator turns green TITAN is in communication with the vehicle control unit.
To locate the diagnostic connector in the vehicle with ease, even if it’s located in a dark and inaccessible place, there is a LED on the 16-pin connector to help you along. The location and the design allow the light to function even when using the adaptor cable for vehicles without a 16-pin diagnostic socket.
When TITAN is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjust itself to the vehicle’s voltage level of 12 or 24 volts. If the voltage gets too high or too low, TITAN will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.
In our TRUCKS software, we have a smart function that allow you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically.
System Scan scans through all the systems in the vehicle and display the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the system scan is complete, you can then select a specific control system to analyse the results further on.
In the vehicle selection, when model and system are specified, you will see adjustments and adaptations available for this selection, without having the vehicle connected. For each function there is also a step-by-step guide for easy performance. Available real-time data parameters are also shown in the vehicle selection.
Guided Diagnostics help you to find the most likely root cause to a fault code, how serious the damage is and how to fix the problem. Repair your vehicle faster and easier with vehicle data and information about fault codes.
To gain your customers’ trust it is important that you can show what you have done with their vehicle. With the built-in report function in our software, you can add fault codes from multiple system in a report and show graphs and data from real-time data. Print the final results and you have a professional report for your customers
Perform diagnostics on trucks, buses, vans and trailers. With ability
to read and erase fault codes, set parameters and configurations,
make adjustments and calibrations.
Examples of possible diagnoses:
• Level sensor calibration (air suspension)
• Service light resent
• Clutch calibration
• Brake calibration
• Cylinder analysis
Perform legislated diagnostics during periodical vehicle inspection.
You can use it on all modern trucks and buses. GENERIC gives you
the ability to read and erase fault codes, read freeze frame data and
view vehicle information.
Examples of possible diagnoses:
• ISO 15031
• Read confirmed and pending fault codes
• Read readiness tests
• View emissions related data
• Applies TSFS 2010:78 standards
Perform diagnostics on trailers. With ability to read and erase fault
codes, set parameters and make configurations, adjustments and
calibration on Haldex, Knorr and WABCO systems.
Examples of possible diagnoses:
• EBS, ABS, ECAS parameter setting
• Calibration of distance and pressure sensors
• Verification via end-of-line testing
• Strict security functions with PIN protection
Included in all licence packages |
|||
✔ Read and erase fault codes | ✔ PassThru (J2534) | ✔ Adjustments | ✔ Reports |
✔ Service Light Reset (SLR) | ✔ Real Time Data | ✔ Activations | ✔ ADAS |
✔ System Scan | ✔ VIN decoding | ✔ RegLink (SE and UK only) | ✔ DoIP |
Package specifics |
Standard |
Plus |
Pro |
Electrical vehicles | ✖ | ✔ | ✔ |
Guided Diagnostics | ✖ | ✔ | ✔ |
Secure Gateway * | ✖ | ✔ | ✔ |
Secure Gateway ** | ✖ | ✖ | ✔ |
Flight Recorder | ✖ | ✖ | ✔ |
Add-ons (extra cost) |
|||
Info System by HaynesPro | ✔ | ✔ | ✔ |
Secure Gateway IVECO | ✖ | ✔ | ✔ |
* Alfa Romeo, Audi, Cupra, Fiat, Jeep, Lancia, Polestar, SEAT, Škoda, Volkswagen and Volvo
** Dacia, Ford, Mercedes and Renault
TRUCKS Coverage (light and heavy commercial vehicles, trailers and buses):
Agrale Bus, Agrale Trucks, Alexander Dennis, Allison, Autosan, Chevrolet, Citroen, Dacia, Daf, Dennis Eagle, EvoBus Chasis, Fiat, Ford, Ford Cargo, Gaz, Gaz Trucks, Generic Bus Systems, Generic Truck Systems, Heuliez Bus, Hino, Hyundai, Irisbus Chassis, Isuzu, Isuzu Truck, Iveco, Iveco Bus, Iveco Trucks, Iveco Trucks South America, Kamaz, KIA, King Long, Ladog, Mahindra/Renault, MAN, MAN Bus Chassis, MAN LCV, Maz, Maz Bus Chassis, Mazda, Mercedes, Mercedes bus / Setra, Mercedes Truck, Mercedes Truck South America, Mitsubishi, Mitsubishi Fuso, Multicar, Nissan, Nissan Trucks, Opel, Optare, Otokar, Peugeot, Plaxton, Renault, Renault Trucks, Scania, Scania Bus Chassis, Seat, Skoda, Solaris, Toyota, Trailers (Haldex, Knorr, Wabco), UAZ, Vauxhall, VDL Berkhof, VDL Bova, VDL Bus & Coach, VDL Jonckheere, Volare, Volksbus, Volkswagen, Volkswagen Truck, Volvo Bus Chassis, Volvo Truck South America, Volvo Trucks, Yutong and others.
Add-on TRAILER software coverage powered by WABCOWÜRTH:
Knorr, Wabco and Haldex
Yes, we offer fast and free international express shipping for all products available at Balticdiag.com. We deliver worldwide — including USA, Europe, North America, South America, Asia, Africa, and Australia — using trusted courier services like DHL, UPS, and FedEx. Every order is shipped with express delivery straight to your door, ensuring quick and secure arrival. Shipping fees are included in the product price, and we provide full tracking information for each shipment so you can follow your package from dispatch to delivery.
We accept a wide range of secure global and local payment methods, including:
Autocom TITAN specification:
- Dimensions: 124 x 124 x 30 mm
- Operating temperature: -20 – 40° C
- Voltage: 6-36 V
- Max current: 500 mA
- Weight: 560 g
System requirements:
- Intel Core i5 or better
- Windows 10 or Windows 8
- 4 GB Ram (depending on the OS)
- 12 GB free space on the hard drive
- Screen resolution of 1440 x 900 or higher
- Connection to the Internet
- Bluetooth (SPP) or USB
- Adobe Acrobat Reader 8.0 or higher

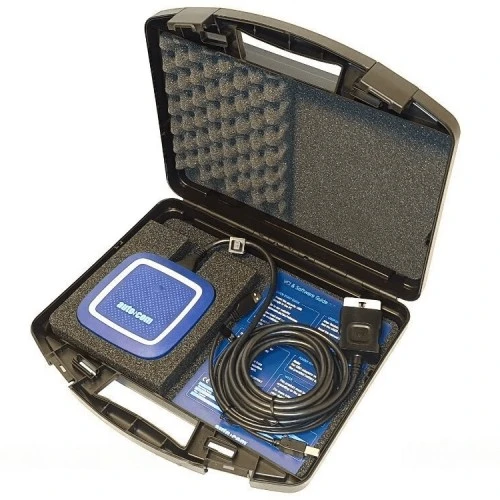

Standard OBD set:
- Autocom TITAN with OBD 16-pin cable
- USB cable
- USB dongle
- Case
* License subscription with 1 year software updates for TRUCKS + TRAILER
Autocom TITAN specification:
- Dimensions: 124 x 124 x 30 mm
- Operating temperature: -20 – 40° C
- Voltage: 6-36 V
- Max current: 500 mA
- Weight: 560 g
System requirements:
- Intel Core i5 or better
- Windows 10 or Windows 8
- 4 GB Ram (depending on the OS)
- 12 GB free space on the hard drive
- Screen resolution of 1440 x 900 or higher
- Connection to the Internet
- Bluetooth (SPP) or USB
- Adobe Acrobat Reader 8.0 or higher
Standard OBD set:
- Autocom TITAN with OBD 16-pin cable
- USB cable
- USB dongle
- Case
* License subscription with 1 year software updates for TRUCKS + TRAILER
