TRUCK EXPLORER STANDARD KIT | BALTICDIAG EDITION

The unique tool on the market for special operations on Mercedes-Benz, MAN, MAZ, CLASS (SCANIA, VOLVO will be soon), trucks and buses. It allows to read/write FLASH and EEPROMs from MR (PLD/FFR/PTM) control unit, program new keys, calculate VeDoc (X1, X2, X8...) and FDOK (XT, XN) access codes. All operations are done via OBD and offline, no internet connection required.

Truck Explorer it is a universal device for MERCEDES and MAN trucks. Also known as old name MB Truck Explorer.

License MB MEMO

The license allows to Read/Write FLASH and EEPROMs of MR (PLD) control unit.

It is possible to connect to the unit via:

- OBD (MR is mounted inside truck) or

- direct connection with DirectConnect 2 tool (MR is placed on your table).

This function is especially useful for chip-tuning works and recovering unit after the broken update. All operations are done via OBD, there is no need to decapsulate/open the unit, so unit stays in factory condition and therefore no warranty is voided.

This function allows cloning MR. You read one MR, save to *.bin file, and write it to another MR.

License MB KEYS

MB Keys learn - allows to add new keys for the MERCEDES truck over OBD. No additional equipment is used, all operations are done offline, the only connection to the truck required.

It is possible to make new key while connected to the unit via:

- OBD (MR is mounted inside truck) or

- direct connection with DirectConnect2 tool (MR is placed on your table).

IMMO OFF. Disable immobilizer in FR and MR.

License MB CALC

MB VeDoc and FDOK calculators - calculates access codes for VeDoc (X1, X2, X8.) and FDOK ( XT, XN, XA, XS) algorithms.

Must be used together with XENTRY (DAS) software and compatible diagnostic tool where these codes are asked. All operations are done offline, the only connection to the truck required for VEDOC.

For FDOK calculations not needed connection to the truck. FDOK code for new and old DAS.

DAS password generator - calculates password asked by DAS to access some special functions (MR downgrade from Euro 4, 5 to Euro 3 etc.)

License 2011+

The license allows accessing firmware 22B, 23E, 24B from 2011 year.

Continental Euro5 PLD: (MCU XC2287 (flash 768kB), 1 EEPROM M95640).

License 2014+

For PLD memory read and write operation (category memo) PLD with XC2287 secured microprocessor.

Open access Read & Write memory for PLD, made on 2011 and later, with microprocessor Infineon XC2287.

Software module support PLD with firmware versions: 21x, 23F, 24C, 25x, 26x.

License CRV

The license allows to Read/Write FLASH & EEPROMs of CRV1 & CRV2 engine control unit of Mercedes S, ML, GL class via OBD2.

License CR (CDI)

The license allows to Read/Write FLASH & EEPROMs of CDI engine control unit used in MB V-class, Sprinter and Vito thru the diagnostic port. CDI<>WSP pairing.

License DIAG

The license allows to Read DTC with the error description.

Clear DTC. Read and Erase fault codes.

VAN's on this moment not supported.

License EXTRA

Set a speed limit. Applicable for CPC drive control modules.

NOx torque limit. FR and CPC.

Erase exhaust faults (AdBlue system fault source repair must be done firstly).

Update/support subscription.

Update/support subscription for 12+1 months is included in a kit.

 Supported Mercedes PLD (MR):

1. Temic Euro2 PLD 1: (MCU C167CR, FLASH AM29F200AB, 1 EEPROM NM93C56)

2. Temic Euro2 PLD 2: (MCU C167CR, FLASH AM29F200BB, 1 EEPROM NM93C66)

3. Temic Euro3 PLD 1: (MCU C167CR, FLASH AM29F200BB, 1 EEPROM NM93C86)

4. Temic Euro3 PLD2: (MCU C167CR, FLASH AM29F400BB, 1 EEPROM NM93C86)

5. Temic Euro4-5 PLD: (MCU C167CR, FLASH AM29F400BB, 2 EEPROM NM93C86)

6. Continental Euro4-5 PLD: (MCU C167CR, FLASH AM29F400BB, 2 EEPROM NM93C86)

7. Continental Euro5 PLD: (MCU XC2287 (flash 768kB), 1 EEPROM M95640).

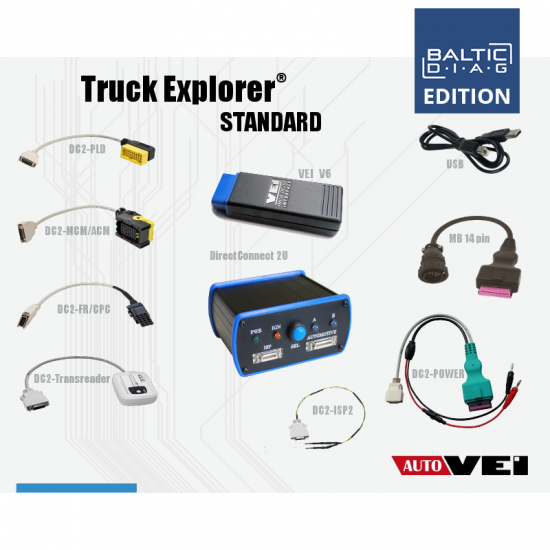

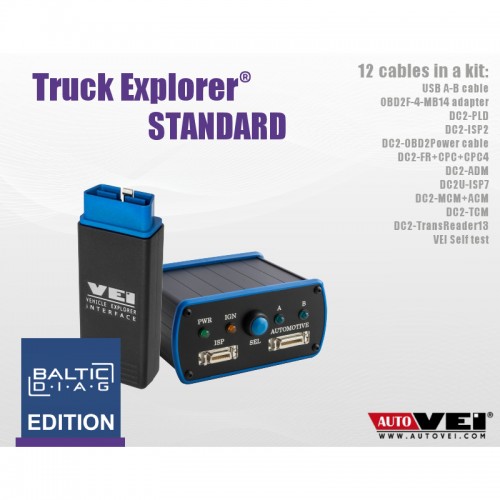

• VEI V6 WiFi device
• USB A to USB B
• OBD2F-4-MB14 (MB)
• DirectConnect 2U tool with ISP port
• PLD16 cable for DC2
• DC2-ISP1 cable for BSL mode
• DC2-OBD2-Power cable
• DC2-FR+CPC+CPC4 cable
• DC2 cable for MCM, MCM2, MCM2.1, ACM2, ACM2.1
• DC2-TransReader13 for transponder ID12, ID13

OBD2F-4-MN12 (MAN) adapter for MAN trucks not included.

• Support and updates for 13 months are included.
• Software version from v6.12 and later.
