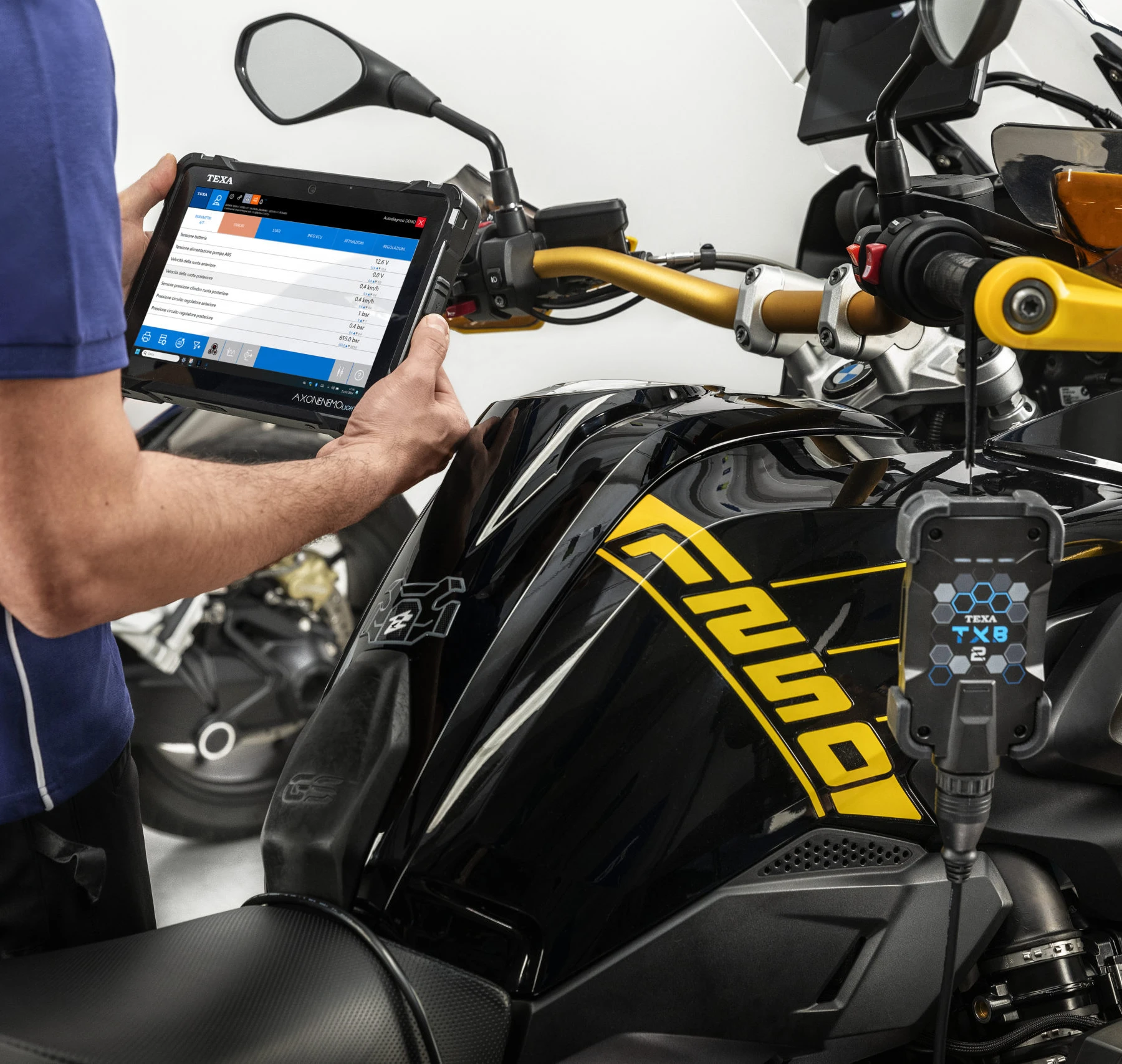

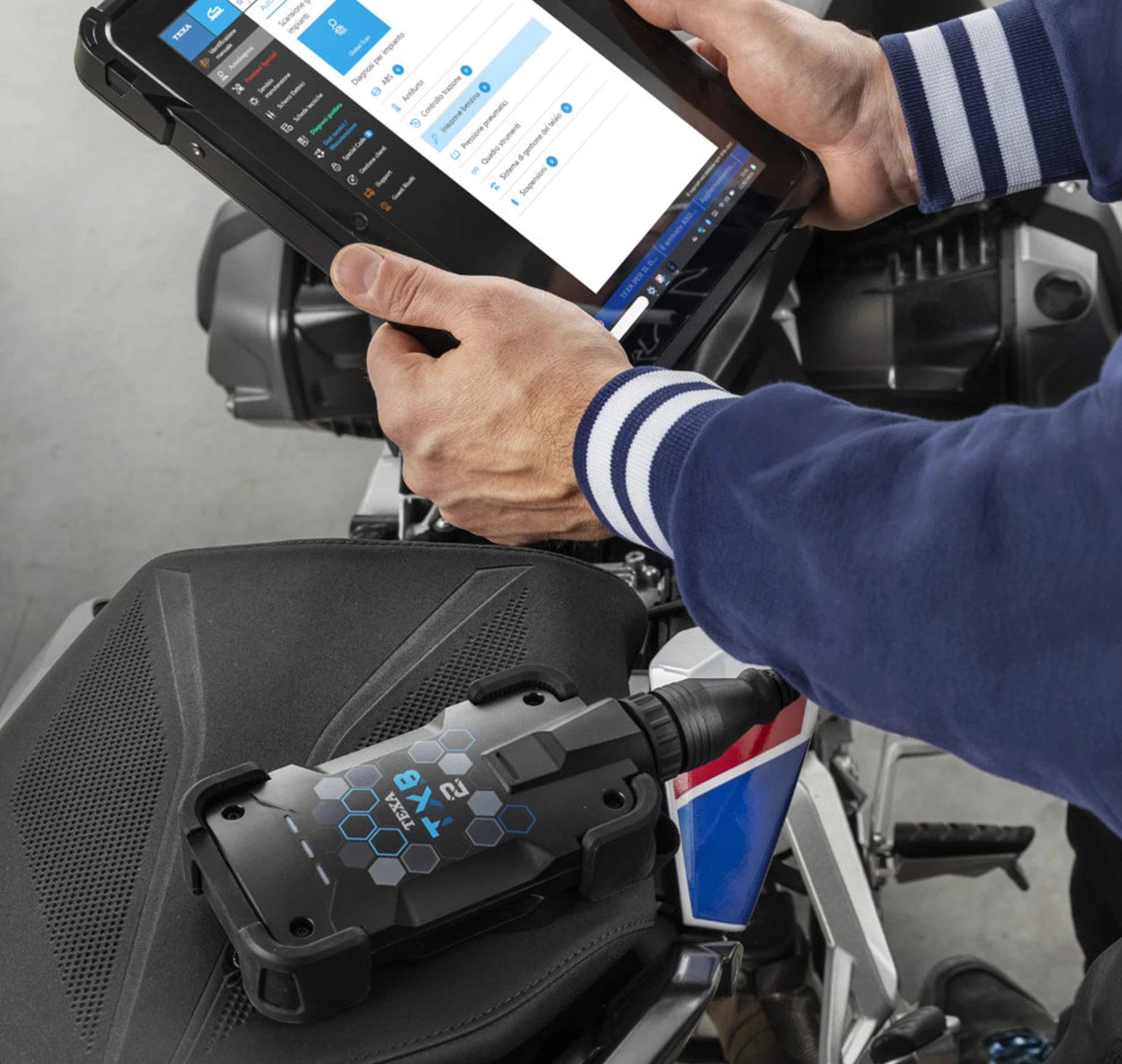

NAVIGATOR TXB 2 is a latest-generation vehicle interface specifically developed for the bike and marine environments.
The processor used makes it even more fast and powerful and allows a quick and precise processing of the data from the control units, in PassThru mode also.
The latest-generation Bluetooth technology and a new USB C socket guarantee faster connection and an optimised data download, other than better useability thanks to the new RGB LEDs. Its hardware features make it compatible with all current protocols and its integrated 16-pin CPC connector allows the use of all the BIKE diagnostic cables. Other than the “classic” diagnosis, it also allows recording the diagnostic session while moving.
IDC5 is TEXA’s extraordinary diagnostic software for managing all the operations that are normally carried out in a workshop.
Designed for the BIKE and MARINE environments, in which TEXA is a leader, it allows repair technicians to carry out all the essential operations, among which the self-diagnosis for error reading and clearing, the display of the engineering parameters and of the statuses of the control unit, activations, adjustments and configurations of the devices installed on the vehicle, deactivation of the warning lights, configuration of the control units, fuel trim and injection timing, key programming.
Thanks to a worldwide network created in more than 20 years in the market, IDC5 is able to guarantee an extraordinary coverage of the vehicles in circulation.
Yes, we offer fast and free international express shipping for all products available at Balticdiag.com. We deliver worldwide — including USA, Europe, North America, South America, Asia, Africa, and Australia — using trusted courier services like DHL, UPS, and FedEx. Every order is shipped with express delivery straight to your door, ensuring quick and secure arrival. Shipping fees are included in the product price, and we provide full tracking information for each shipment so you can follow your package from dispatch to delivery.
We accept a wide range of secure global and local payment methods, including:
PROCESSOR | CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB FLASH, 564KB RAM | SRAM MEMORY | 16 MBits organized in 1024K x 16 bits |
SRAM | 256 MBits organized in 4096K x 4 banks x 16 bits | eMMC MEMORY | eMMC MEMORY 8 GByte on an 8-bit bus |
VEHICLE BATTERY | VEHICLE BATTERY System management at 12 V and 24 V | EXTERNAL POWER SUPPLY | EXTERNAL POWER SUPPLY 12 ÷ 24 V |
USB COMMUNICATION | USB COMMUNICATION 2.0 high speed 5 V / 500 mA | WIRELESS CONNECTION | WIRELESS CONNECTION Bluetooth 5.0 class1 |
OPERATIONAL BAND | 2402 ÷ 2480 MHz | MAXIMUN RADIO FREQUENCY POWER TRANSMITTED | 10 dBm |
ELECTRONIC SWITCH | 2-way, 13 independent positions | DIAGNOSTIC CONNECTOR | 16-pin CPC |
SUPPORTED PROTOCOLS | Blink codes K, L (with current protection 100 mA) ISO9141-2, ISO14230 FD CAN 11898-2:2016 2 channels CAN ISO 11898-3 LOW Speed CAN SAE J2411 Single Wire SAE J1850 PWM SAE J1850 VPW SAE J1708 RS232 |
VISIBLE WARNINGS | LED: RGB x3 |
12 V CONSUMPTION | 300 mA | 24 V CONSUMPTION | 100 mA |
OPERATING TEMPERATURE | 0 ÷ 50 °C | STORAGE TEMPERATURE | – 20 ÷ 60 °C |
OPERATING MOISTURE | 10 ÷ 80 % without condensation | DIRECTIVES | RED 2014/53/EU RoHS 2011/65/EU and Delegated Directive 2015/863/EU |
SAFETY | EN 62368-1 EN 62311 |
ELECTROMAGNETIC COMPATIBILITY | EN 301 489-1 EN 301 489-17 |
RADIO SYSTEMS | EN 300 328 | WEIGHT | 215 g |
PROCESSOR | CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB FLASH, 564KB RAM | SRAM MEMORY | 16 MBits organized in 1024K x 16 bits |
SRAM | 256 MBits organized in 4096K x 4 banks x 16 bits | eMMC MEMORY | eMMC MEMORY 8 GByte on an 8-bit bus |
VEHICLE BATTERY | VEHICLE BATTERY System management at 12 V and 24 V | EXTERNAL POWER SUPPLY | EXTERNAL POWER SUPPLY 12 ÷ 24 V |
USB COMMUNICATION | USB COMMUNICATION 2.0 high speed 5 V / 500 mA | WIRELESS CONNECTION | WIRELESS CONNECTION Bluetooth 5.0 class1 |
OPERATIONAL BAND | 2402 ÷ 2480 MHz | MAXIMUN RADIO FREQUENCY POWER TRANSMITTED | 10 dBm |
ELECTRONIC SWITCH | 2-way, 13 independent positions | DIAGNOSTIC CONNECTOR | 16-pin CPC |
SUPPORTED PROTOCOLS | Blink codes K, L (with current protection 100 mA) ISO9141-2, ISO14230 FD CAN 11898-2:2016 2 channels CAN ISO 11898-3 LOW Speed CAN SAE J2411 Single Wire SAE J1850 PWM SAE J1850 VPW SAE J1708 RS232 |
VISIBLE WARNINGS | LED: RGB x3 |
12 V CONSUMPTION | 300 mA | 24 V CONSUMPTION | 100 mA |
OPERATING TEMPERATURE | 0 ÷ 50 °C | STORAGE TEMPERATURE | – 20 ÷ 60 °C |
OPERATING MOISTURE | 10 ÷ 80 % without condensation | DIRECTIVES | RED 2014/53/EU RoHS 2011/65/EU and Delegated Directive 2015/863/EU |
SAFETY | EN 62368-1 EN 62311 |
ELECTROMAGNETIC COMPATIBILITY | EN 301 489-1 EN 301 489-17 |
RADIO SYSTEMS | EN 300 328 | WEIGHT | 215 g |
