MaxiTPMS TS508WF | Autel | TPMS Diagnostic & Service Tool

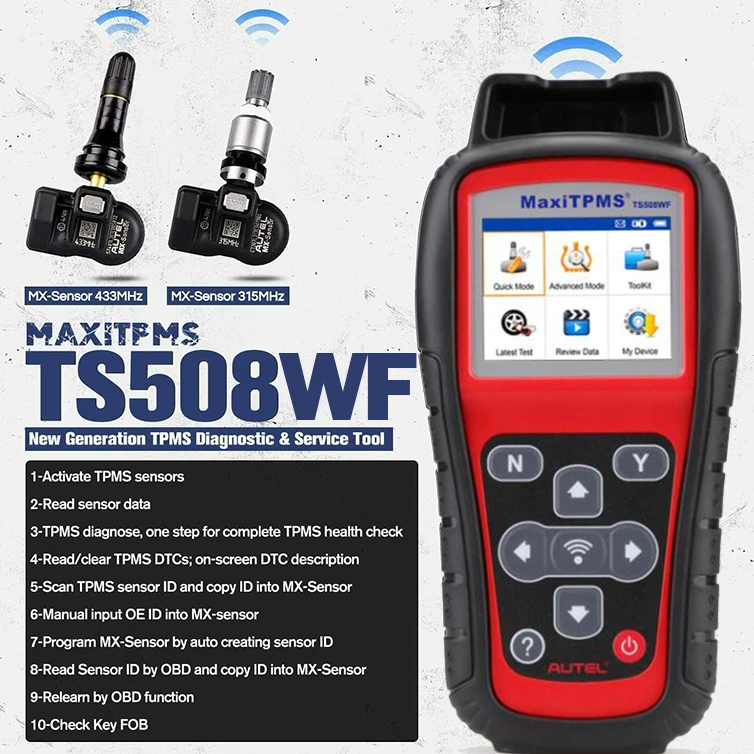

  • The MaxiTPMS TS508WF is a new generation TPMS diagnostic & service tool

  • Specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn.

UPS-FEDEX-EXPRESS DELIVERY

trust-pilot-reviews

Price:
288.43€
499.00€
  • : In Stock! Estimated Delivery Time: 2-4 Days
  • Brand: AUTEL
  • Model: MaxiTPMS-TS508WF
Buy now
Ask Question
Add to Wish List

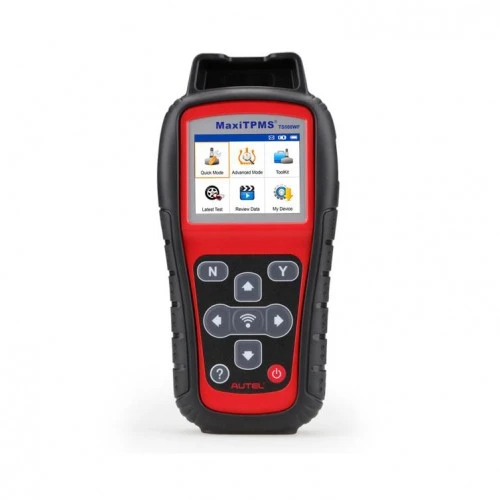

MaxiTPMS TS508WF

The MaxiTPMS TS508WF is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. TS508K, the starting TPMS kit can be your right choice to experience AUTEL TPMS lines.

Choose only authorized AUTEL distributors – BALTICDIAG

To have full AUTEL experience and customer support

AUTEL ORIGINAL AUTHORIZED SELLER





Tags: MaxiTPMS TS508 , Autel diagnostic , Autel , TPMS , MaxiTPMS , TS508 , MaxiTPMS TS508WF , TS508WF

Frequently Asked Questions

Do you offer international shipping for your products? ❯
How can I pay for my order on Balticdiag.com? ❯

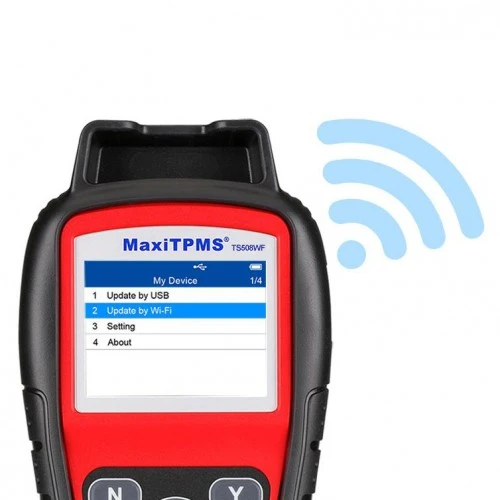

Wi-Fi UPDATE



The TS508WF provides two methods for updating: Update by Wi-Fi and Update by USB. The two methods bring customers faster and more convenient updating experience, disencumbering the worries that update must be done with computer. From now on, you only need to be in a Wi-Fi environment.

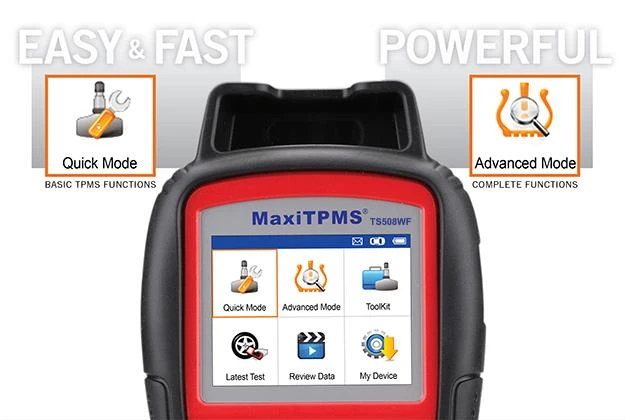

TWO TPMS SERVICE MODES



The TS508WF is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.

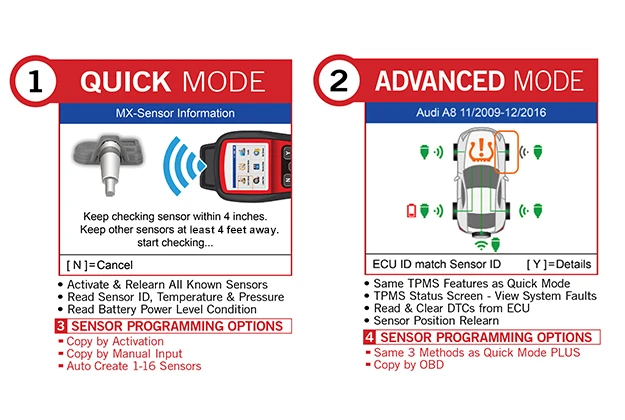

QUICK MODE / ADVANCED MODE COMPARISON

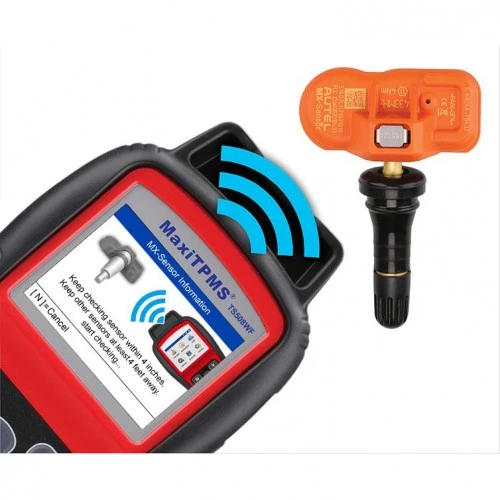

TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;

TPMS Advanced Mode: complete TPMS functions to perform sensor check , TPMS diagnose, MX-Sensor program and sensor position relearn.

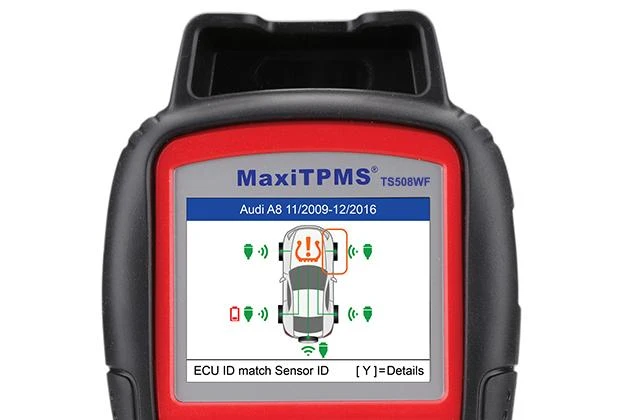

EXCLUSIVE TPMS STATUS SCREEN



  1. Read ECU sensor ID;
  2. Check sensor ID and ECU ID matching condition;
  3. Read DTCs from ECU and erase DTCs;
  4. View DTCs detail description;

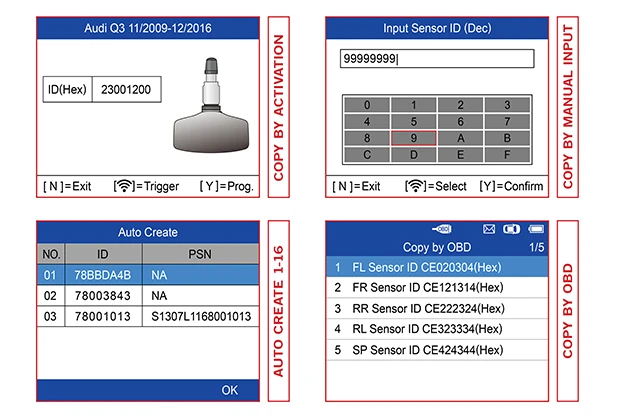

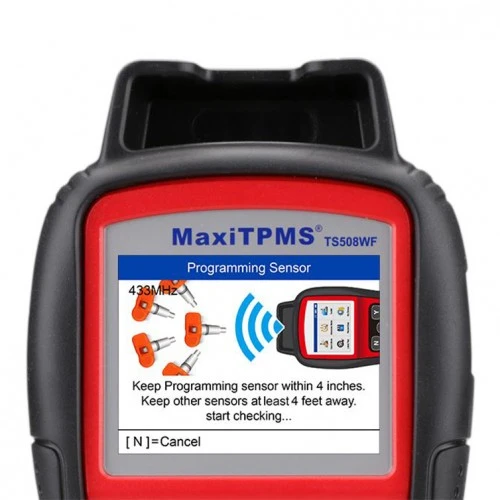

FOUR MX-SENSOR PROGRAMMING OPTIONS



  1. Copy By Activation;
  2. Copy By Manual Input;
  3. Auto Create 1-16;
  4. Copy By OBD;
Display TFT color display (320 x 240 dpi)
Power 3.7 V Li-polymer battery; 3200 mAh
Operating Temp. 0°C to 50°C (32°F to 122°F)
Storage Temp. -20°C to 70°C (-4°F to 158°F)
Dimensions 215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
Weight 0.39 kg (0.86 lb.)



Comparison TS408 TS508 TS508WF TS608 TS401 TS501 TS601 TPMS PAD MS906 TS
TPMS function
Quick Mode & Advance Mode   ✔ ✔
Activate TPMS sensors ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Read sensor data ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
TPMS diagnose, one step for complete TPMS health check   ✔ ✔ ✔   ✔ ✔   ✔
Read/clear TPMS DTCs; on-screen DTC description   ✔ ✔ ✔   ✔ ✔   ✔
Scan TPMS sensor ID and copy ID into MX-Sensor ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Program MX-Sensor by auto creating sensor ID ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Read Sensor ID by OBD and copy ID into MX-Sensor   ✔ ✔ ✔   ✔ ✔   ✔
Relearn by OBD function   ✔ ✔ ✔   ✔ ✔   ✔
Relearn procedure guide on the tool ✔ ✔ ✔ ✔ ✔ ✔ ✔   ✔
Check Key FOB ✔ ✔ ✔ ✔ ✔ ✔ ✔
TPMS Toolkit - special TPMS functions       ✔
Diagnostic function
Basic OBDII code reader       ✔     ✔   ✔
Read/clear codes for all electronic systems       ✔         ✔
Support all 10 test modes of the latest J1979 OBDII test specs       ✔         ✔
Enhanced OBDII Mode 6       ✔         ✔
Display live data in text, graph & analog for easy data review       ✔         ✔
Relearn parking brake pad after replacement;       ✔         ✔
Reset Steering Angle Sensor (SAS);       ✔         ✔
Reset service mileage and service intervals;       ✔         ✔
Forced regeneration and adjusting injectors;       ✔         ✔
Support battery registration and reset       ✔         ✔
Support IMMO functions       ✔         ✔
Complete diagnostic function                 ✔
Tool features
Built-in rechargeable li-ion battery ✔ ✔ ✔ ✔ ✔ ✔ ✔   ✔
Strong housing with protective rubber boot ✔ ✔ ✔ ✔ ✔ ✔ ✔   ✔
Print TPMS sensor data via PC   ✔ ✔ ✔   ✔ ✔ ✔ ✔
Internet updatable USB USB WIFI+USB WIFI USB SD card SD card USB WIFI
Multilingual support ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Historical test records   ✔ ✔ ✔   ✔ ✔   ✔
Software Update free free free 1 year free free free free free 1 year free
Limited one year warranty ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
