IRT01 Insulation Resitance Tester | SmartSafe
IRT01 Insulation Resitance Tester | SmartSafe
- IRT01 is a special insulation resistance tester for EVs. It is equipped with powerful measurement and data processing software, which can efficiently perform measurements of parameters such as insulation resistance and voltage.
Price:
488.08€
- : In Stock! Estimated Delivery Time: 2-4 Days
- Brand: SmartSafe
- Model: IRT01

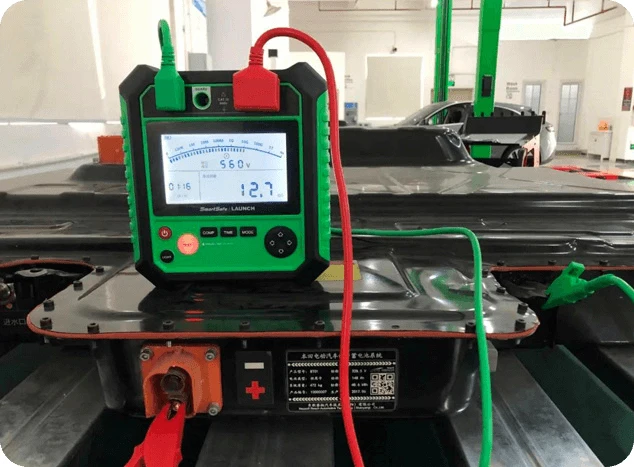

SmartSafe IRT01 Insulation Resitance Tester
The SmartSafe IRT01 is a professional digital insulation resistance tester and megohmmeter designed for field measurement and maintenance of power equipment and power supply lines. Equipped with powerful measurement and data processing software, it accurately measures insulation resistance across a wide range reaching up to 1000GΩ, as well as both alternating current (AC) and direct current (DC) voltage. Its stable performance, flexible measurement modes and straightforward operation make it a practical and reliable choice for technicians working in demanding field environments where accurate electrical insulation testing is critical for equipment safety and reliability.
Flexible application, can measure insulation resistance and AC/DC voltage, support comparison measurement, continuous measurement, timing measurement 3 modes
Wide range measurement, for different output voltages, the resistance measurement range can reach 10MΩ-1000GΩ
Intelligent alarm, low resistance, timely alarm to protect personnel and equipment safety when the range is exceeded
5-inch LCD backlit display, convenient for measurement in poor light environments
Automatically shut down without any operation in 15 minutes, saving energy and electricity
Functions
- Insulation resistance testing: Supports selectable output voltages of 500V, 1000V, 2500V and 5000V, covering a broad range of power equipment testing requirements. All three measurement modes including comparison, continuous and timing measurement are fully supported, giving technicians the flexibility needed for both routine checks and more detailed insulation resistance tester diagnostics.
- Voltage measurement: Supports both DC and AC voltage measurement, making the IRT01 a versatile electrical insulation tester and voltage meter in a single handheld device.
- Additional functions: Includes LCD backlight for low light environments, automatic shutdown after 15 minutes of inactivity, over range alarm and high voltage warning indication to ensure safe and accurate operation at all times.
Supported Languages: The IRT01 interface is available in two languages: Simplified Chinese and English.
No Additional Costs: Tester comes ready to use straight out of the box with no recurring fees or subscriptions required.
