TRUCK EXPLORER REVOLUTION KIT | BALTICDIAG EDITION

• 1. License MB MEMO

The license allows to Read/Write FLASH and EEPROMs of MR (PLD) control unit.

It is possible to connect to the unit via:

- OBD (MR is mounted inside truck) or

- direct connection with DirectConnect 2 tool (MR is placed on your table).

This function is especially useful for chip-tuning works and recovering unit after the broken update. All operations are done via OBD, there is no need to decapsulate/open the unit, so unit stays in factory condition and therefore no warranty is voided.

This function allows cloning MR. You read one MR, save to *.bin file, and write it to another MR.

• 2. License MB KEYS

MB Keys learn - allows to add new keys for the MERCEDES truck over OBD. No additional equipment is used, all operations are done offline, the only connection to the truck required.

It is possible to make new key while connected to the unit via:

- OBD (MR is mounted inside truck) or

- direct connection with DirectConnect2 tool (MR is placed on your table).

IMMO OFF. Disable immobilizer in FR and MR.

• 3. License MB CALC

MB VeDoc and FDOK calculators - calculates access codes for VeDoc (X1, X2, X8.) and FDOK ( XT, XN, XA, XS) algorithms.

Must be used together with XENTRY (DAS) software and compatible diagnostic tool where these codes are asked. All operations are done offline, the only connection to the truck required for VEDOC.

For FDOK calculations not needed connection to the truck. FDOK code for new and old DAS.

DAS password generator - calculates password asked by DAS to access some special functions (MR downgrade from Euro 4, 5 to Euro 3 etc.)

• 4. License 2011+

The license allows accessing firmware 22B, 23E, 24B from 2011 year.

Continental Euro5 PLD: (MCU XC2287 (flash 768kB), 1 EEPROM M95640).

• 5. License FR

The license allows accessing FR memory. Supported FMR; FR; FR/CPC; CPC1EU; CPC2EU. Immo off in FR.

Not supported: CPC2 NAFTA; CPC2+ NAFTA; CPC4 NAFTA; CPC3; ADM2; ADM3.

• 6. License MCM BSL (3Core)

A license for Read & Write IntFLASH; IntEEPROM; ExtEEPROM MCM1, MCM2 and ACM control units memory only over DirectConnect 2 tool.

Type 1. Continental MCM1 (MCU TC1796-256F / TriCore 1 EEPROM M95640) plastic.

Type 2. Continental MCM2 (MCU TC1796-256F / TriCore 1 EEPROM M95128) metallic

Note: DirectConnect2 tool is needed. Not included in a REVOLUTION kit.

• 7. License CR (CDI)

The license allows to Read/Write FLASH & EEPROMs of CDI engine control unit used in MB V-class, Sprinter and Vito thru the diagnostic port. CDI<>WSP pairing.

• 8. License EXTRA

Set a speed limit. Applicable for CPC drive control modules.

NOx torque limit. FR and CPC.

Erase exhaust faults (AdBlue system fault source repair must be done firstly).

• 9. License DIAG

The license allows to Read DTC with the error description.

Clear DTC. Read and Erase fault codes.

VAN's on this moment not supported.

• 10. License Android

Truck Explorer Android 2.1 license. For phones (tablets) we created Android mobile app: "Truck Explorer" More simple, more useful. The license is included, but the software must be purchased in a Google Play store.

• 11. Update/support subscription.

Update/support subscription for 12 months is included in a kit.

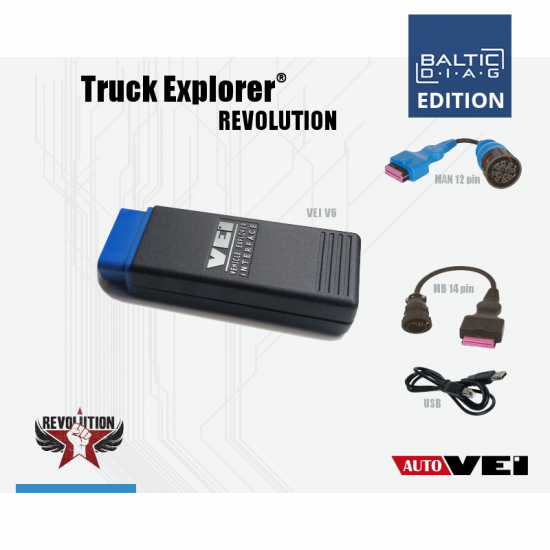

• VEI V6 device
• USB A to USB B
• OBD2F-4-MB14 (MB) adapter
• OBD2F-4-MN12 (MAN) adapter

Support and updates for 12 + 1 months are included.

Warranty for hardware 12 + 1 months.
