MaxiSYS MS908S PRO | Autel | Diagnostic Scanner

MAXISYS MS908 PRO S with 3 YEARS FREE UPDATES
MAXISYS MS908 PRO S with 3 YEARS FREE UPDATES
MAXISYS MS908 PRO S with 3 YEARS FREE UPDATES
MAXISYS MS908 PRO S with 3 YEARS FREE UPDATES
MAXISYS MS908 PRO S with 3 YEARS FREE UPDATES
MAXISYS MS908 PRO S with 3 YEARS FREE UPDATES
2 YEARS OF LICENSE 3 YEARS OF LICENSE -20 %
MAXISYS MS908 PRO S with 3 YEARS FREE UPDATES
MAXISYS MS908 PRO S with 3 YEARS FREE UPDATES
MAXISYS MS908 PRO S with 3 YEARS FREE UPDATES
MAXISYS MS908 PRO S with 3 YEARS FREE UPDATES
MAXISYS MS908 PRO S with 3 YEARS FREE UPDATES
MAXISYS MS908 PRO S with 3 YEARS FREE UPDATES
MaxiSYS MS908S PRO | Autel | Diagnostic Scanner
  • 3 YEARS FREE UPDATES
  • The VCI connects wirelessly to the main unit with Long-Range Class 1 Bluetooth
  • Access Repair Records and Test Data
  • Service Reset Features

 FREE EXPRESS WORLDWIDE DELIVERY

Day
Hour
Min
Sec
Price:
2,200.00€
2,750.00€
  • Stock: In Stock
  • Model: MS908S PRO

MaxiSYS MS908S Pro

With 3 Years FREE Updates



One of the MaxiSys series devices, the MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.



4 Reasons to Get Maxisys MS908S PRO:

1. Software Version: Every Car Model Software Has A Different Version;
2. Wi-Fi Technology: The VCI connects wirelessly to the main unit with Long-Range Class 1 Bluetooth;
3. Update: 3 Year Free Update;
4. Free Shipping by DHL Worldwide, 3-10 Days Delivery;

MaxiSYS MS908 PRO S

  • Extraordinarily powerful Cortex-A9 quad-core processor
  • 9,7" 1,024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
  • Internal reliable and fast 32GB Solid State Drive for better performance
  • Built-in 5-megapixel rear camera with autofocus and flashlight
  • Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
  • Unique shop tough ergonomic design features strong rubber protection and housing;
  • Built-in rechargeable lithium-ion battery for up to 5 hours of continuous operation
  • USB, audio and auxiliary ports make it easy to connect accessories
  • The J2534 connects wirelessly to the main unit with Long-Range Class 1 Bluetooth
  • Open source Android Operating System for fast boot-up and multitasking
  • Easy and intuitive navigation makes finding what you need simple and fast
  • Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
  • Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
  • Displays live data in text, graph, analog and digital gauge for easy data review and analysis
  • Configures display options, sets triggers, records and playbacks results with one touch
  • Records and playbacks live data to pinpoint troubles of sensors and components
  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
  • Remote technical support for convenient demonstration, training and increased customer satisfaction
  • Prints out recorded data anytime and anywhere with Wi-Fi technology
  • Automatic Wi-Fi updates available in new software releases



MaxiSYS MS908 PRO S



Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory 2GB RAM & 64GB On-board Memory
Display 9.7 inch LED capacitive touch screen with 2048x1536 resolution
Connectivity Wi-Fi (802.11 a/b/g/n/ac)
USB: 2.0
BT v.2.1 + EDR
SD Card (Support up to 32GB)
HDMI
Camera (rear) 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery 11000 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12 V (9-24 V)
Power Consumption 6.5 W
Operating Temp 0 to 50°C (32 to 122°F)
Storage Temp -20 to 60°C (-4 to 140°F)
Dimensions(WXHX D) 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.)
Protocols ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,
GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,
SAE J1708, Fault-Tolerant CAN


MaxiSys Elite

MaxiSys CV

MaxiSys MS908S Pro

MaxiSys MS908S

MaxiSys MS906TS

MaxiSys MS906BT

MaxiSys MS906

Function
All Systems DTC Scan
Service Function
Bi-Directional Control
Auto VIN Technology
ECU Coding -- --
ECU Programming -- -- -- -- --

MaxiFix Cloud-Based Info System

Data Manager
Shop Manager
Remote Support
Pre-scan Report & Post-scan Report North America Only -- North America Only North America Only North America Only North America Only
Print Feature
Multi-language Support
Coverage
Domestic/Asian/European Coverage(1996-Present)
Hardware
Display Size 9.7" 9.7" 9.7" 9.7" 8" 8" 8"
Wireless VCI MaxiFlash Elite MaxiFlash Elite MaxiFlash Elite Wireless Diagnostic
Interface
MaxiVCI V100 MaxiVCI V100 --
Battery Life 15400 mAh 3.7 V 11000 mAh 3.7 V 11000 mAh 3.7 V 11000 mAh 3.7 V 10000 mAh 3.7 V 10000 mAh 3.7 V 5000 mAh 3.7 V
Memory Storage 64GB 64GB 64GB 64GB 32GB 32GB 32GB
Connector Kit
Options
TPMS -- -- -- -- -- --
Oscilloscope --
Inspection Camera --
ADAS -- --

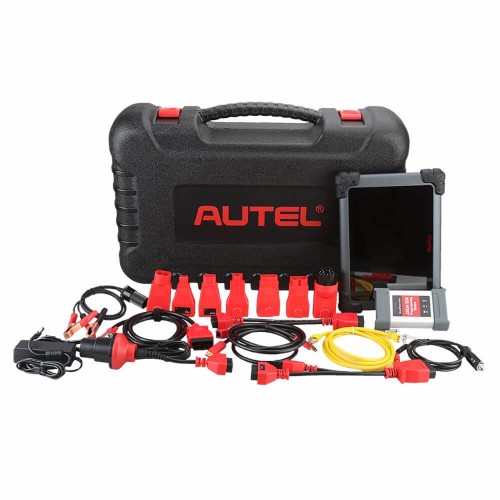

MaxiSYS MS908 PRO S Package Contains
