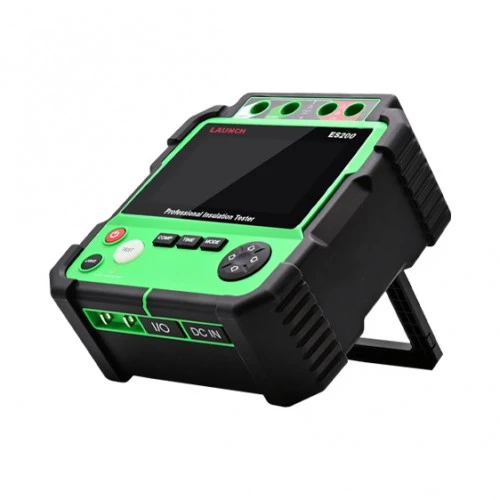

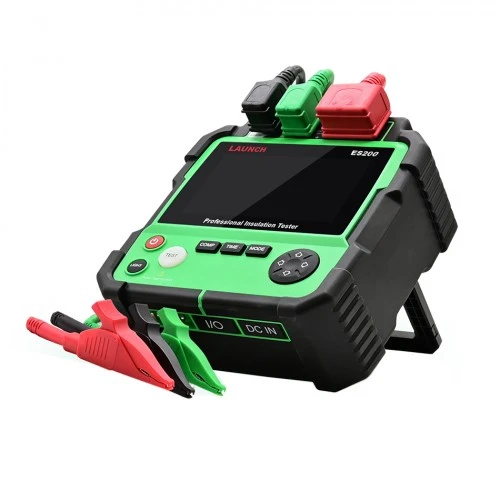

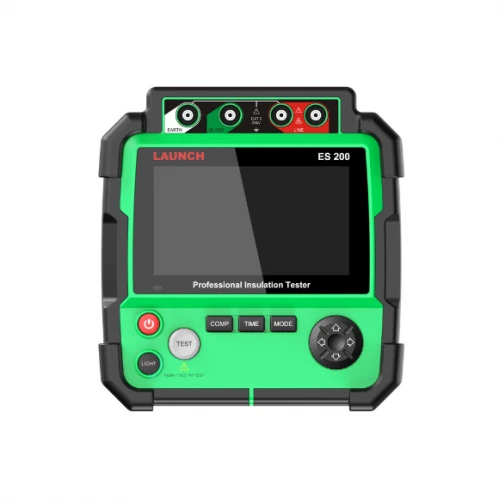

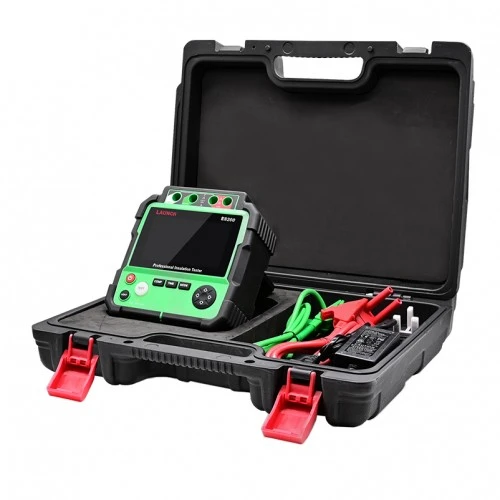

ES200 EV | Launch | Battery Insulation Resistance Indicator
ELECTRIC VEHICLES
ES200 EV | Launch | Battery Insulation Resistance Indicator
- Measures insulation restistance
- Electric shock protection
- High Dc voltage
Precio:
825.62€
- : En stock
- Marca: LAUNCH
- Model: ES200
Battery Insulation Resistance Indicator - ES200 EV
The ES200 insulation tester is equipped with advanced measurement and data processing software that enables it to perform complete measurements of insulation resistance, voltage and other parameters in hybrid vehicles. Its reliable performance and user-friendly handling make it ideal for on-site measurements and maintenance of vehicles with high-voltage batteries and power supply lines. This is particularly important after repairs to vehicles with high-voltage technology, as manufacturer requirements often stipulate a final insulation test.
Measures insulation resistance
Insulation resistance refers to the leakage current of the insulation material between the live part and the exposed non-live metal part (housing).
Safety
Electric vehicle batteries have high voltage characteristics. The use of an insulation tester for measurement can effectively increase the safety of maintenance personnel.
High DC voltage
Depending on the product, different values of DC high voltage are applied, e.g. 500V, 1000V, 2500V etc. and a minimum safe insulation resistance value is specified. If the measured resistance is below this value, there is a risk of electric shock.
Wide measuring range
For different output voltages, resistance measurement ranges from 10 MOhm to 1000 MOhm.

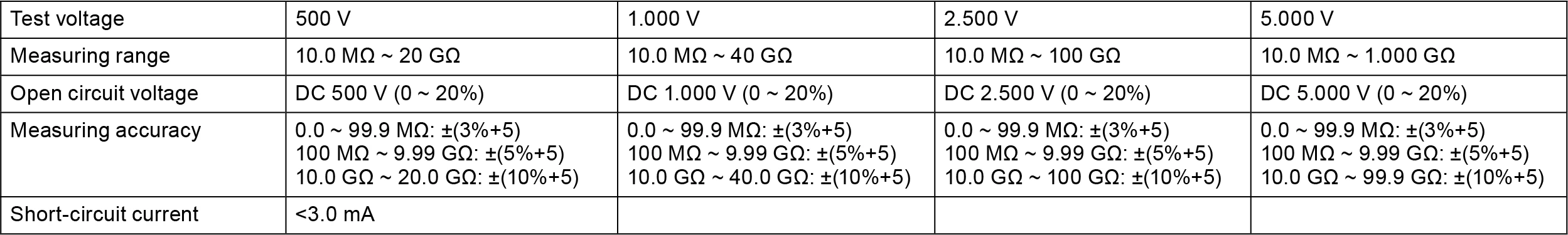

Technical Profile
Battery
3.150 mAh
Voltage Type
DC, AC
Resolution
1 V
Display
5” LCD
Measurement Accuracy
±3%
Click here to download our latest product catalog and explore our extensive range of offerings.
