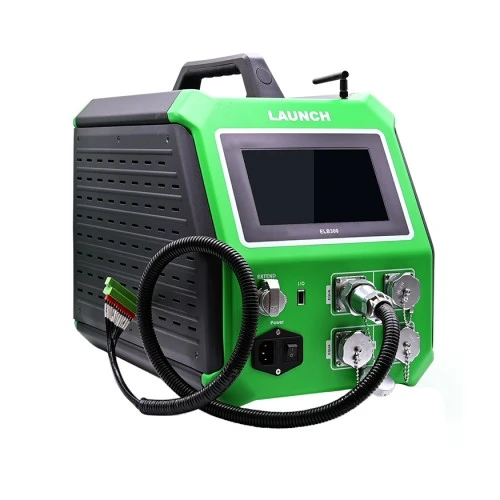

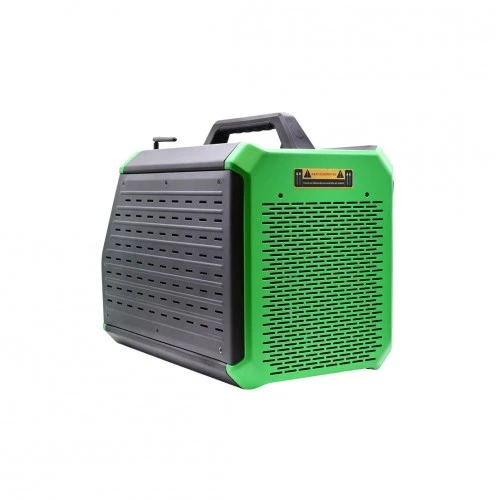

ELB300 EV | Launch | EV Battery Cell Equaliser
ELECTRIC VEHICLES
ELB300 EV | Launch | EV Battery Cell Equaliser
- Safe charging and discharging
- Inteligent cell check
- Overcharge and discharge protection
Precio:
7,437.19€
- : En stock
- Marca: LAUNCH
- Model: ELB300
EV Battery Cell Equaliser ELB300
Our high-voltage battery cell equaliser is an extremely useful tool that allows you to test, charge and discharge individual cells. It offers you the possibility to bring the voltages of all cells to a uniform level.
Uniform charging or discharging of the cells
Overcharge or overdischarge
Effectively prevents overcharging or overdischarging of any cell in the HV module.
Safety protection function
Protection against overvoltage, undervoltage, overcurrent, short circuit and reverse polarity protection.
Charge and discharge equalisation
Independent channel design that detects and uniformly charges or discharges the cells in the module. When charging or discharging, it ensures that no cell in the module is overcharged or overdischarged.
Equilibrium maintenance present
The balance maintenance parameters can be set as required. This allows the balance to be quickly maintained according to the current parameters.

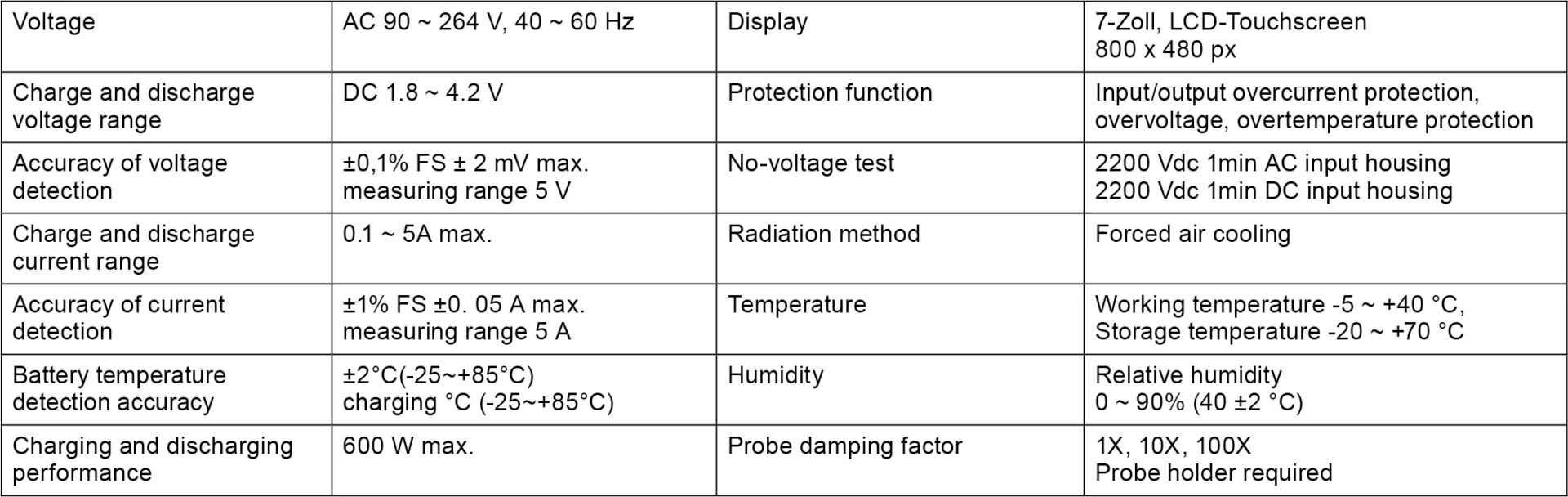

Technical Profile
Battery Interface
16 Pin, 24 Pin
Channels
2 x 12
Module
2 modules, 12 battery strings
Charging Mode / Discharging Mode
Constant current + voltage charging
Constant current + voltage discharge
Communication
USB, WLAN, Bluetooth
Click here to download our latest product catalog and explore our extensive range of offerings.
