ELT500 EV | Launch | Airtightness Tester
ELECTRIC VEHICLES
ELT500 EV | Launch | Airtightness Tester
- High reliability
- High precision
- Intelligen operating mode
Precio:
3,304.96€
- : En stock
- Marca: LAUNCH
- Model: ELT500

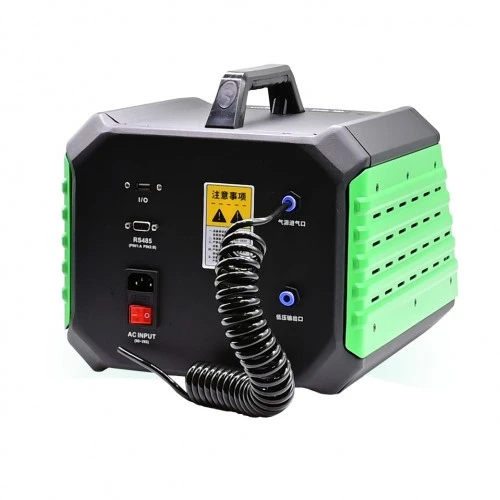

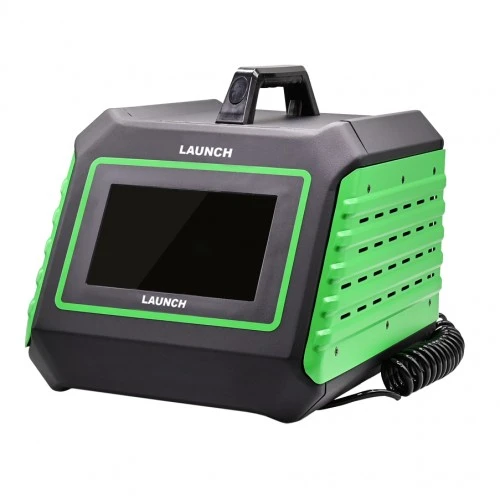

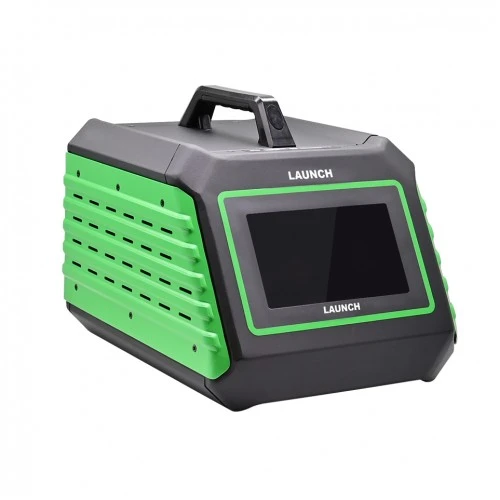

Airtightness Tester ELT500 EV

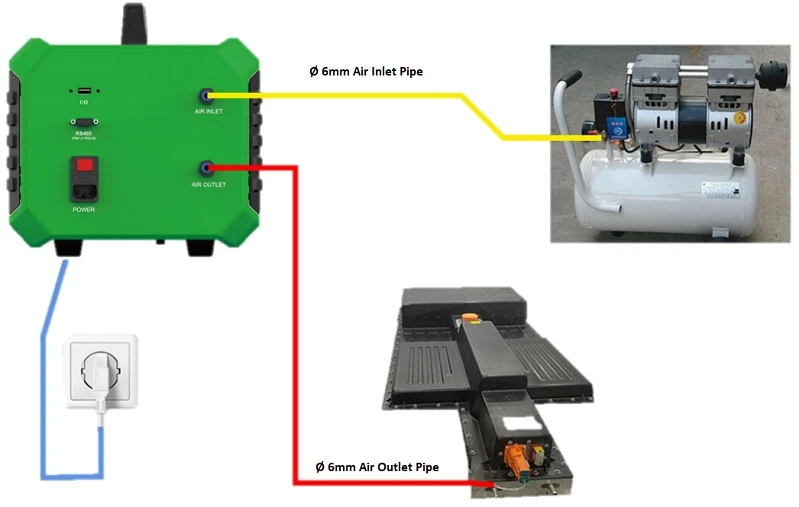

The ELT500 is an extremely precise, non-destructive device for checking air leaks. It mainly uses compressed air to check vehicles with high-voltage batteries for leaks. Once a stable pressure is reached in the vehicle’s high-voltage battery, the ELT500 automatically initiates the maintenance phase. Using its highly sensitive pressure sensor, any changes in the holding or maintenance pressure within the high-voltage battery are detected and displayed on the LCD screen. To identify leaks, the ELT500 uses a differential pressure measurement method.
High sensitivity
The highly sensitive pressure sensor technology significantly improves test accuracy and stability.
Double display of the pressure value
Real time display of the pressure scale and the pressure curve of the process.
Setting the parameters
Parameters such as number of parts, volume, pressure, time of each stage and leakage limit can be preset.
Process visualisation
The progress time of each phase of the test process can be displayed on the screen.
Parameter management
Real time display of the pressure scale and the pressure curve of the process.
Intelligent alarm
The unit will give an audible and visual alarm if the test is abnormal or fails.

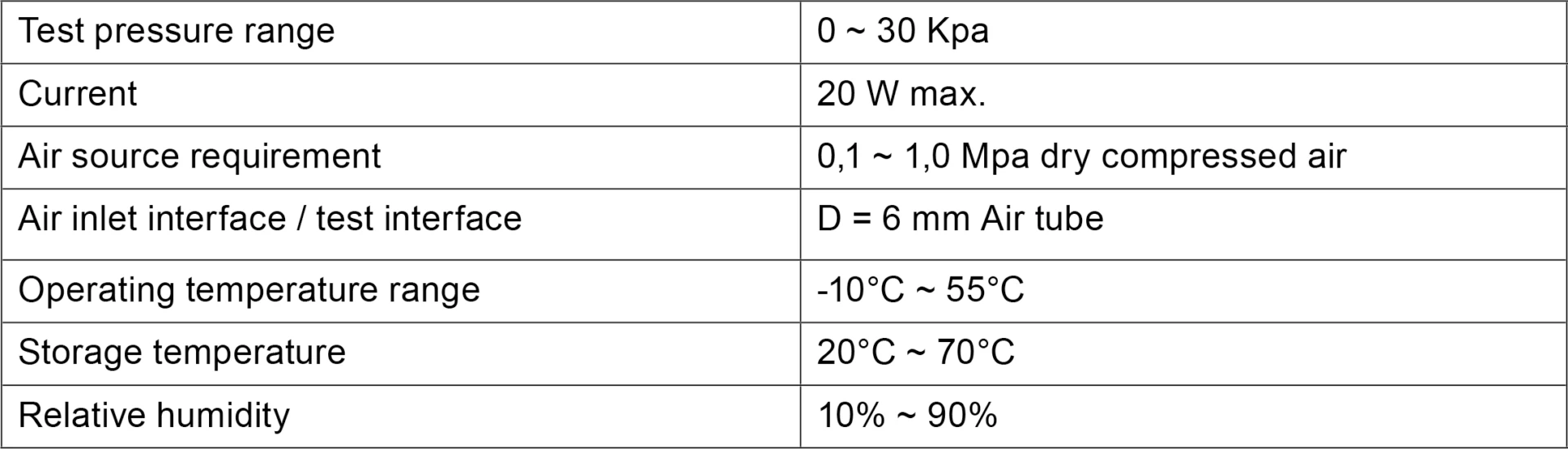

Technical Profile
Electrical Requirement
AC 220 V
Sensor Resolution
1 PA
Communication
RS-232 / USB
Precision
±5% FS
