SATO1004 | Micsig | Automotive Tablet Oscilloscope
SATO1004 | Micsig | Automotive Tablet Oscilloscope
- Equipped with highly sensitive digital trigger system and comprehensive Automotive Diagnostic software preset, the SATO able to help mechanics quickly and easily find out all kinds of problem on all types of vehicles, including circuits on Charging/Start up, various Sensors and Actuators, Ignition system, and Networks (CAN, CAN FD, LIN, Flexray, K line) etc. Combined with Micsig's unique touch algorithm patented technology, the SATO brings unparalleled operating experience to automotive users.
Precio:
742.98€
- : En stock
- Marca: Micsig
- Model: SATO1004

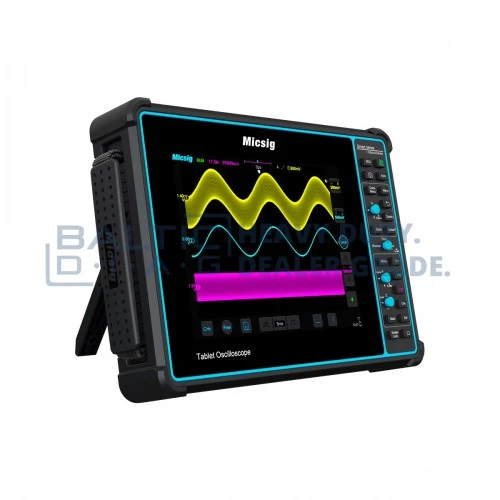

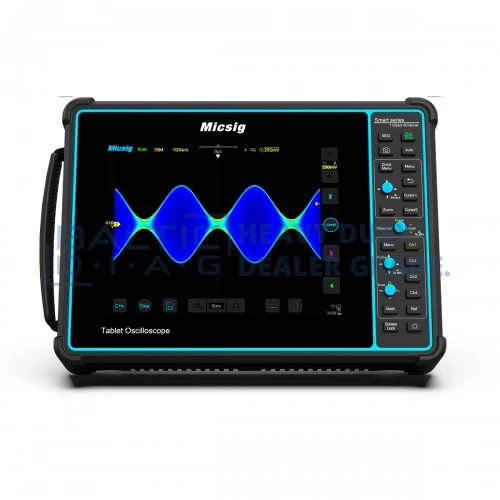

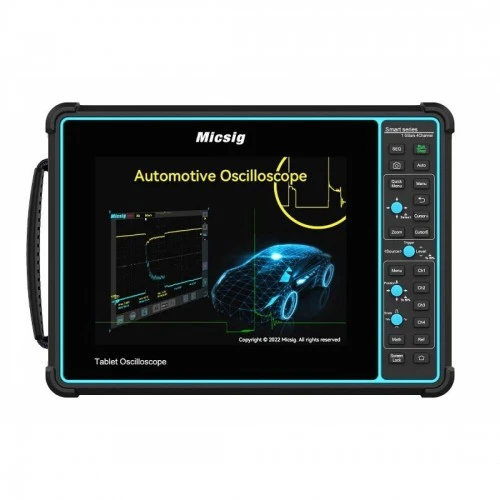

SATO1004 Automotive Tablet Oscilloscope

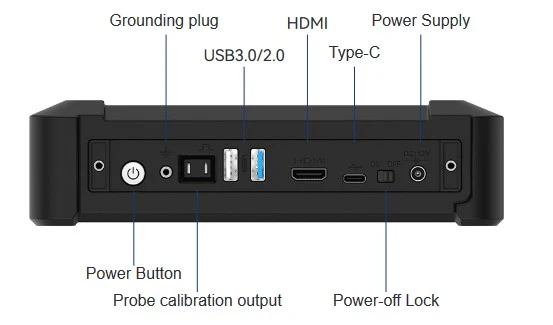

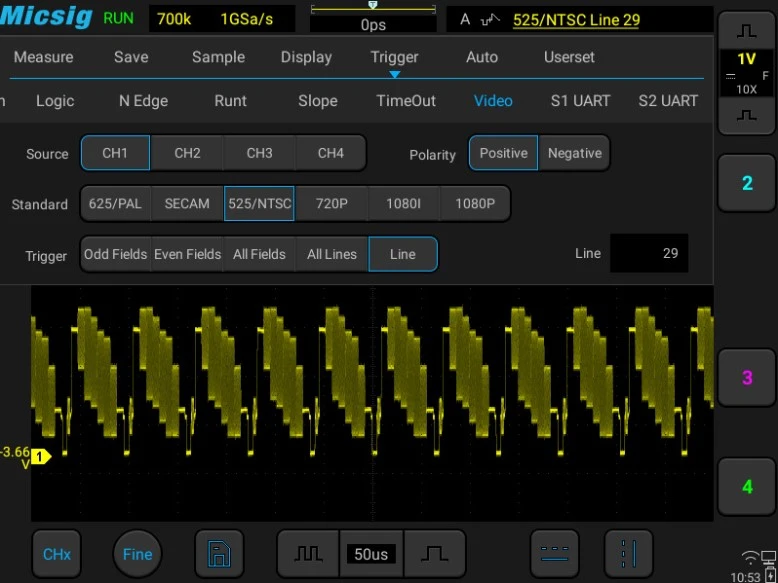

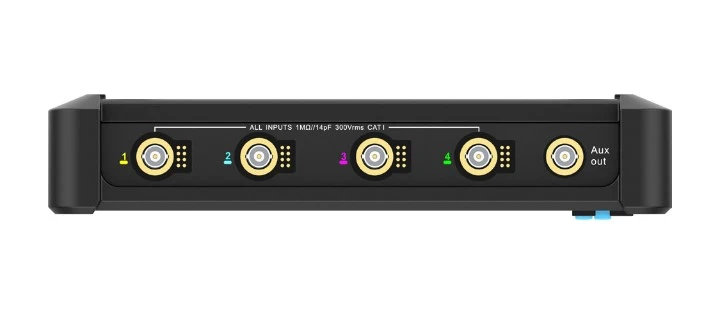

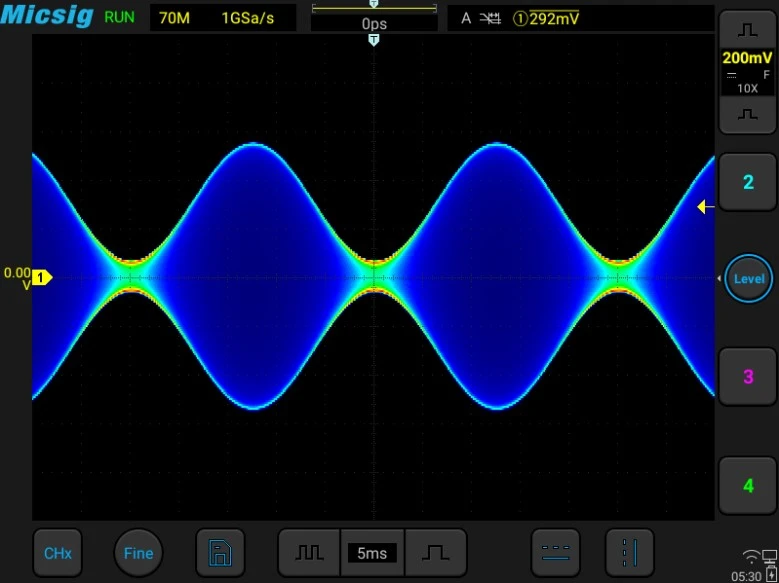

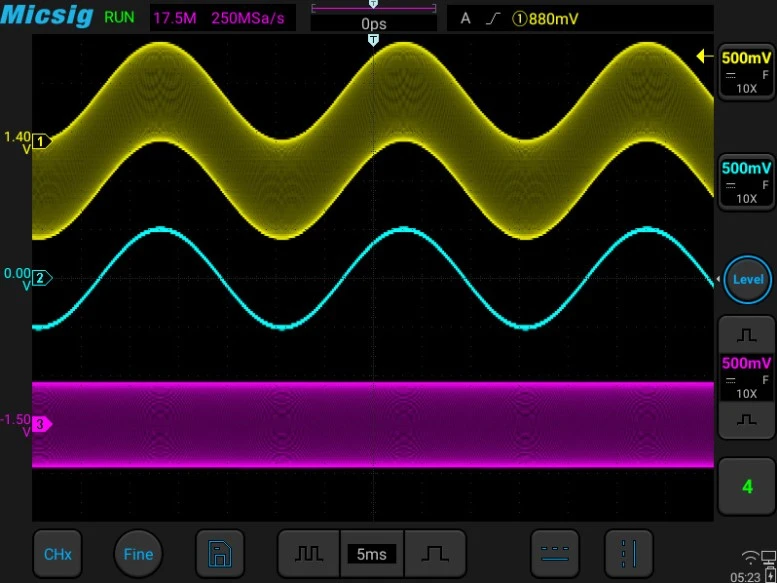

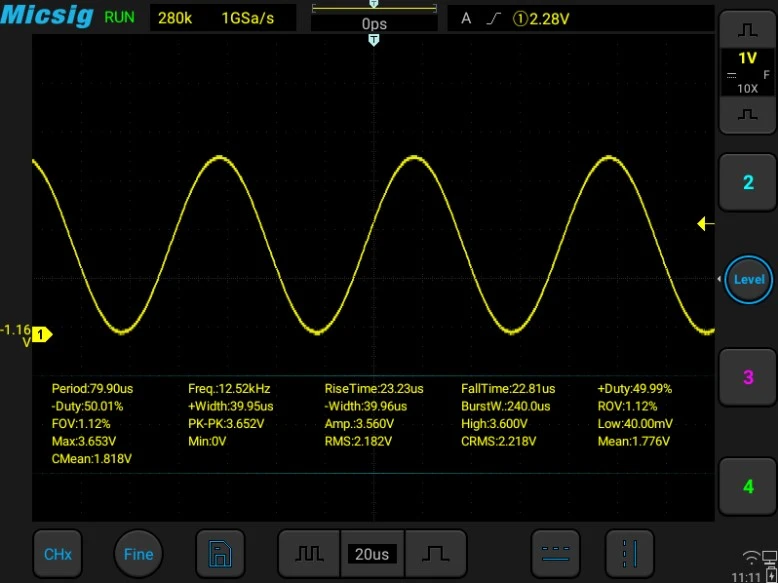

Micsig Tablet Oscilloscope Smart SATO1004 adopts the newest integrated touch screen technology and newly upgraded hardware and software system, it features 4 analog channels, available with 100MHz bandwidth, single channel has maximum 1G Sa/s sampling rate and 70Mpts of memory depth, waveform capture rate up to 130,000 wfms/s. With a large 8-inch, 800x600 industrial capacitive touch screen, the SATO1004 able to be used in 3 operation modes: Fulltouch operation, Physical button control panel, and the Mixture of both. The SATO1004 equipped with highly sensitive digital trigger system, supports serial bus triggering and decoding; has rich measurements and math functions, comes standard with a digital filter module, 256-level intensity grading and color temperature display functions; also has WiFi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger out connetions. Combined with Micsig's unique touch algorithm patented technology, the SATO1004 presents unparalleled operating experience to users.
Features

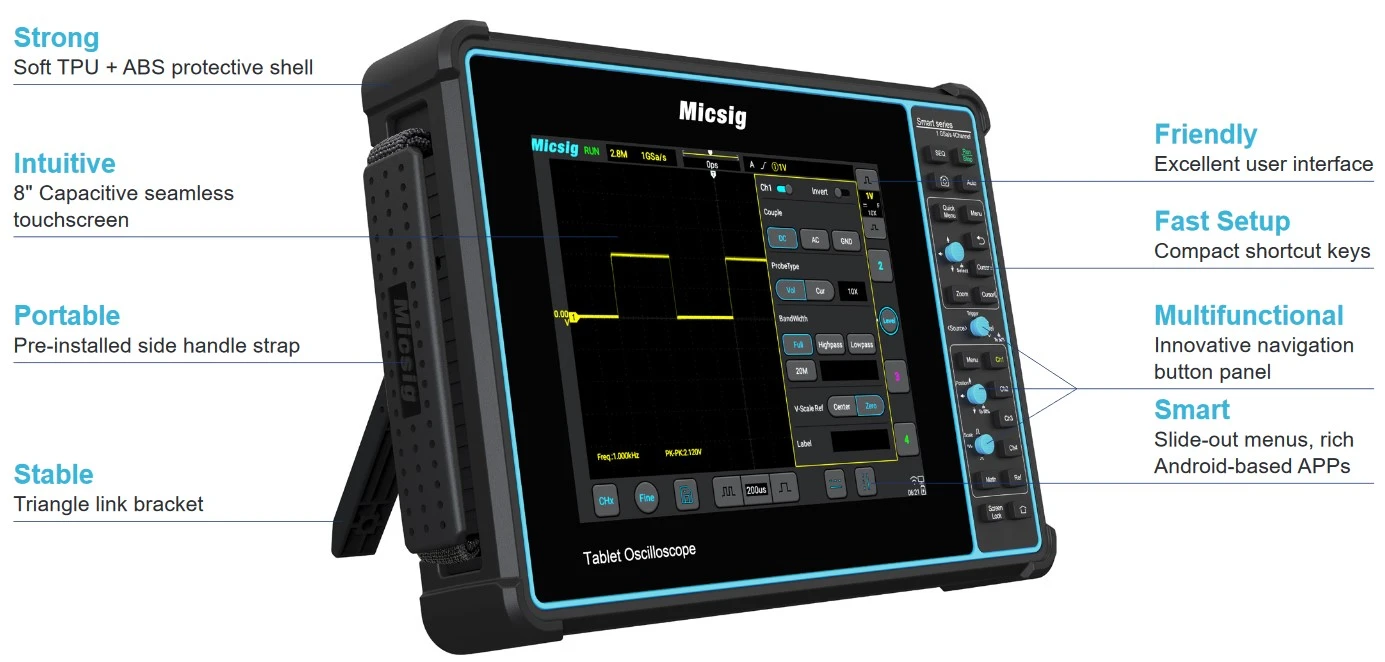

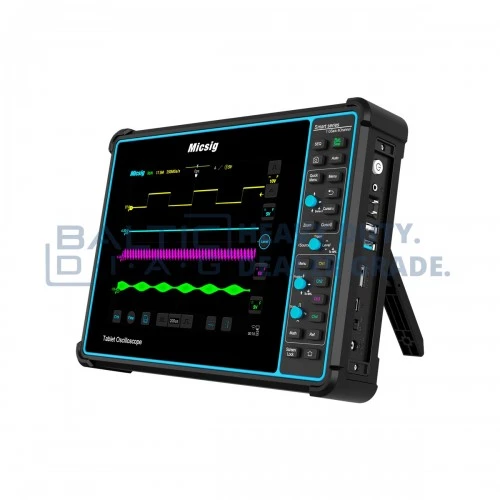

- Unparalleled operating experience - 8" inch, TFT - LCD touch screen that has a resolution of 800 x 600. The device is equipped with new generation technical components and software
- Professional performance - high bandwidth, high sample rate, wide memory spectrum, perfect signal capture results

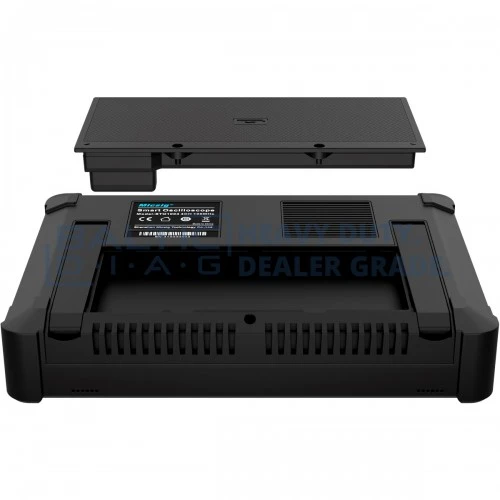

- Convenient for mobile and stationary use - the built-in 7500 mAh Li-ion battery ensures continuous work for up to 5 hours. Power saving mode that allows you to safely carry or store the device. A specially designed leg ensures that the device remains stable when placed on the table and does not complicate its use
- Capable of charging/starting moment tests - 12V and 24V charging and starting systems are supported. Ability to record charging ripples, starting current and other parameters
- Various sensors test - the ability to check the following sensors: ABS, accelerator pedal, throttle valve, fuel pressure, air flow sensor, crankshaft sensor, camshaft position sensor, detonation knock sensors, MAP sensors, etc.
- Checking of various actuators - the signal of the components is obtained at the push of a button, and in this way the work is done easily and simply. Compatible with the following components: fuel injectors, their voltages and current, fan control current, variable valve timing, EGR valves, etc.
- Ignition performance test - possibility to perform primary, secondary and combined ignition tests

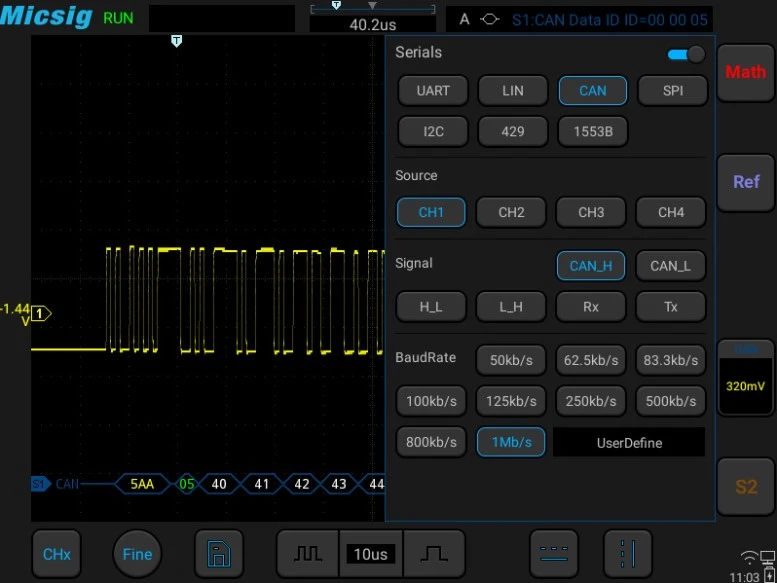

- Communication, signal scanning - CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay and K line scanning
- Combined testing - the device is equipped with several scanning channels, which allow reading the readings of several components and sensors at the same time and combining them into common results. For example perform a general test of the sensors of the crankshaft and camshafts and the like

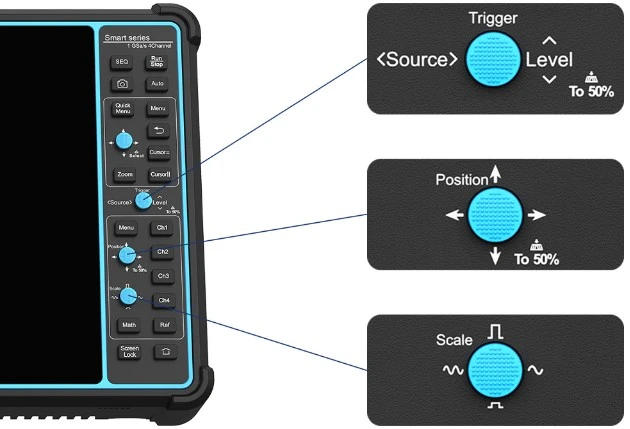

- Multi-function button panel - built-in multi-function buttons, 5-way innovative control, providing fast and high-precision control, which facilitates the performance of various tasks
- Increased Internal Memory – The memory is increased to 32 GB, which allows the user to store and access important files and data, such as specific signals, captured screenshots or recorded videos
- Smart connectors - PC software + mobile phone application (Android / IOS) for remote control using Wi-Fi, USB. The device has the ability to connect to the Internet and thus perform updates to its equipment. Various oscilloscope readings can be displayed on the screen using the HDMI output
