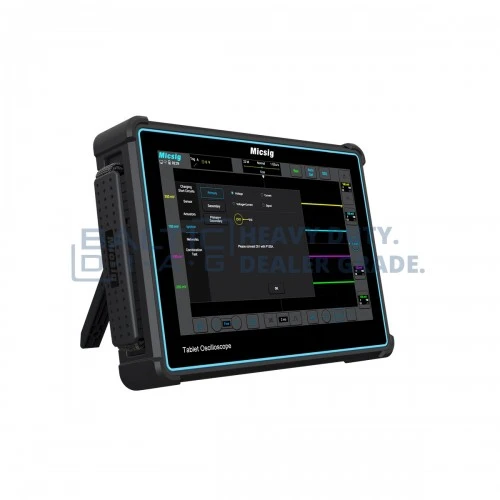

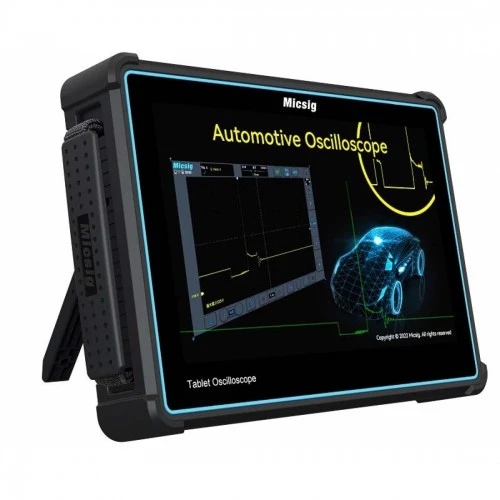

ATO2002 | Micsig | Automotive Tablet Oscilloscope

ATO2002 | Micsig | Automotive Tablet Oscilloscope
ATO2002 | Micsig | Automotive Tablet Oscilloscope
ATO2002 | Micsig | Automotive Tablet Oscilloscope
ATO2002 | Micsig | Automotive Tablet Oscilloscope
ATO2002 | Micsig | Automotive Tablet Oscilloscope
ATO2002 | Micsig | Automotive Tablet Oscilloscope
ATO2002 | Micsig | Automotive Tablet Oscilloscope
ATO2002 | Micsig | Automotive Tablet Oscilloscope
ATO2002 | Micsig | Automotive Tablet Oscilloscope

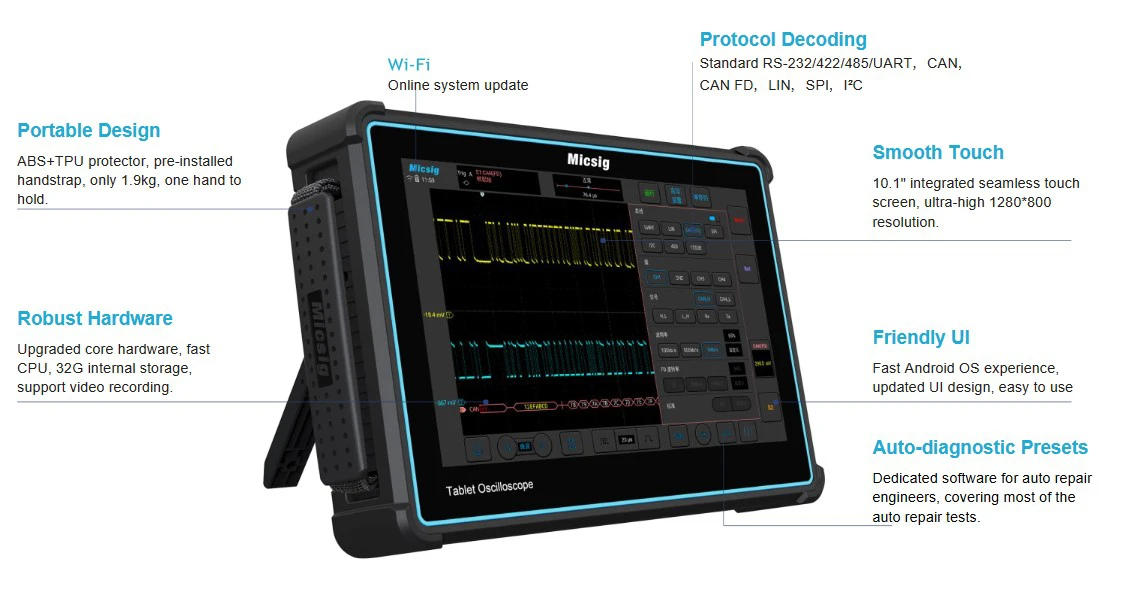

  • Portable tablet design with all-in-one functions
  • Comprehensive auto diagnostic presets
  • Powerful signal capture and analysis capabilities
  • Support PC & Smartphone remote control
  • HDMI function for training & demonstration
  • Life-long free software online upgrade

UPS-FEDEX-EXPRESS DELIVERY

trust-pilot-reviews

Precio:
742.98€
  • : En stock
  • Marca: Micsig
  • Model: ATO2002
Agregar al Carro
Preguntas
Agregar a Favoritos



ATO2002 Automotive Tablet Oscilloscope

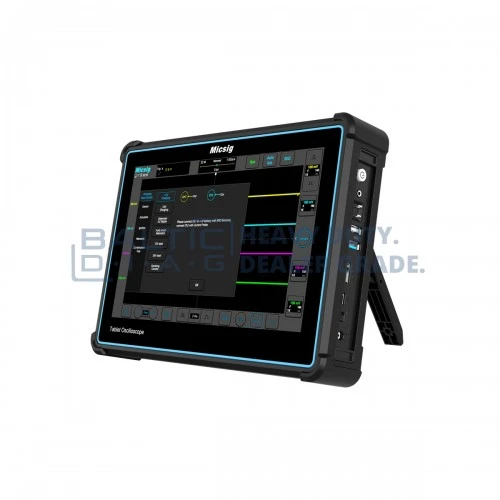

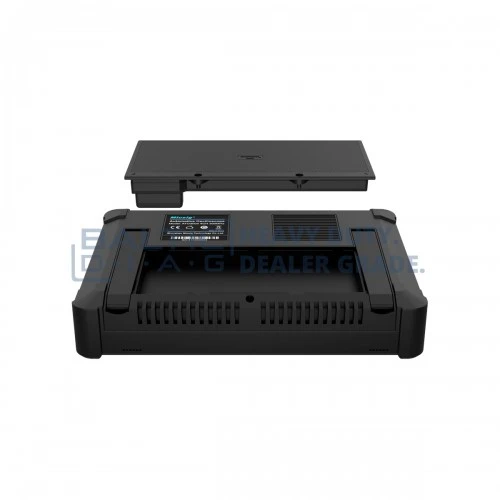

The ATO2002 is an innovative automotive oscilloscope that is the world's first oscilloscope in mobile field use that can be operated purely via the 10.1 inch touch screen and provides comprehensive automotive diagnostic functions. Battery operation can last up to 4 hours and can be extended indefinitely by replacing with a spare battery if required.

The ATO2002 focuses on automotive diagnostics, and offers high usability through the use of an Android operating system. The device also has an external trigger output so that it can be used as an equivalent table oscilloscope in the laboratory.  In addition to serial bus decoding, the ATO2002 also offers various automotive diagnostic functions, such as charging and starting circuit tests, pressure tests such as cylinder compression and fuel pressure.

The ATO2002 features a 1GHz sampling rate, 110 Mpts memory depth, a signal acquisition rate of up to 78,000 wfm/s, 4 channels, 200 MHz bandwidth and 2 channels. In addition, the touch LCD display offers a resolution of 1280 * 800 pixels, which also supports multi-touch operation. The oscilloscope app (IOS & Android) allows remote control of the oscilloscope via WIFI. In addition, the oscilloscope has a USB and Ethernet interface.

The touch operation of the Micsig ATO2002 is extremely intuitive. This simple operation is indispensable for users of smartphones and tablets today, but it is new and innovative for an oscilloscope. Thanks to the digital trigger system, trigger jitter is very low and triggering is highly precise. In addition, the oscilloscope supports serial bus triggers and bus decoding.



Features

  • Capable of charging/starting circuit tests - 12V and 24V charging and starting systems are supported. Ability to record charging ripples, starting current and other parameters
  • Various sensors test - the ability to check the following sensors: ABS, accelerator pedal, throttle valve, fuel pressure, air flow sensor, crankshaft sensor, camshaft position sensor, detonation knock sensors, MAP sensors, etc.
  • Checking of various actuators- the signal of the components is obtained at the push of a button, and in this way the work is done easily and simply. Compatible with the following components: fuel injectors, their voltages and current, fan control current, variable valve timing, EGR valves, etc.
  • Ignition performance check - possibility to perform primary, secondary and combined ignition tests
  • Communication, signal scanning - CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay and K line scanning
  • Combined testing - the device is equipped with several scanning channels, which allow reading the readings of several components and sensors at the same time and combining them into common results. For example perform a general test of the sensors of the crankshaft and camshafts and the like

Preguntas Frecuentes

¿Ofrecen envío internacional para sus productos? ❯
¿Cómo puedo pagar mi pedido en Balticdiag.com? ❯

Auto-diagnostic Presets:

  • Charging/Start Circuit: 12V&24V charging, Alternator AC Ripple, Ford smart Alternator, 12V&24V Start, Cranking Current
  • Sensor: ABS, Accelerator Pedal, Air Flow Meter, Camshaft, Coolant Temperature, Crankshaft, Distributor, Fuel pressure, Knock, Lamda, MAP, Road Speed, Throttle Position
  • Actuators: Carbon Canister Solenoid Valve, Diesel Glow Plugs, EGR Solenoid Valve, Fuel Pump, Idle Speed Control Valve (IAC), Injector (Petrol), Injector (Diesel), Pressure Regulator, Quantity Control Valve, Throttle Servomotor, Variable-speed cooling fan, Variable Valve Timing
  • Ignition: Primary, Secondary, Primary + Secondary
  • Networks: CAN High & CAN Low, CAN FD, FlexRay, K line
  • Combination Tests: Crankshaft + Camshaft, Camshaft + Primary Ignition, Primary ignition + Injector Vol, Crankshaft + Camshaft + Injector Vol.+ Secondary Ignition

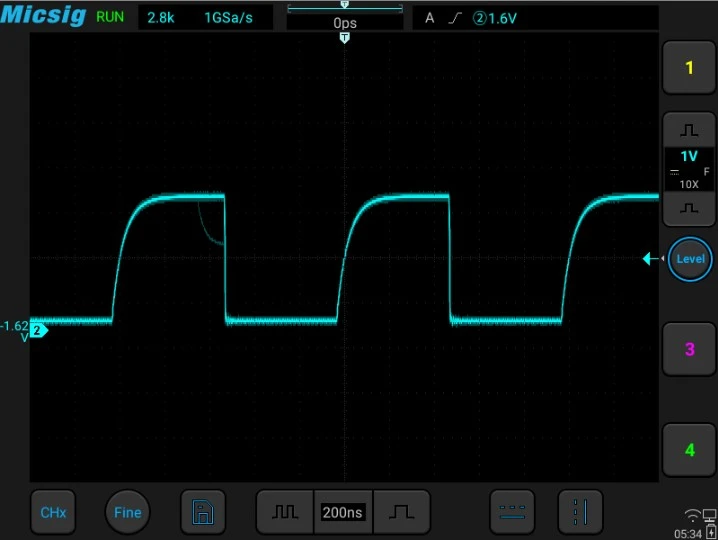

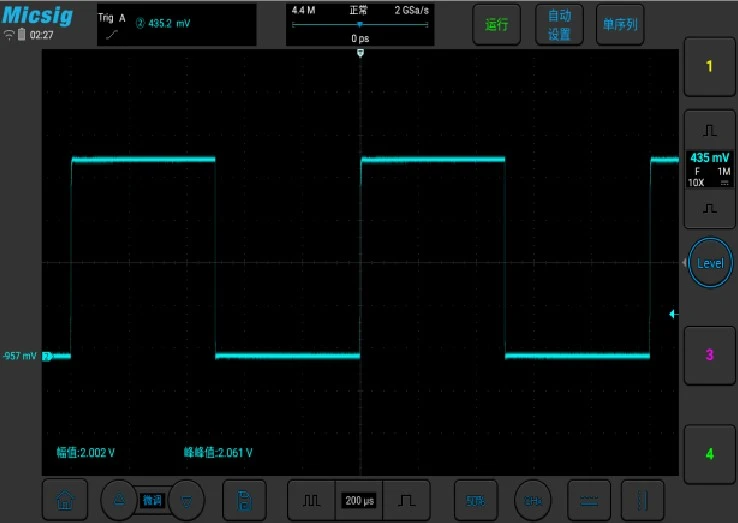

High Waveform Update Rate

With a waveform update rate of up to 300,000 wfm/s, the ATO can easily capture unusual or low probability events.

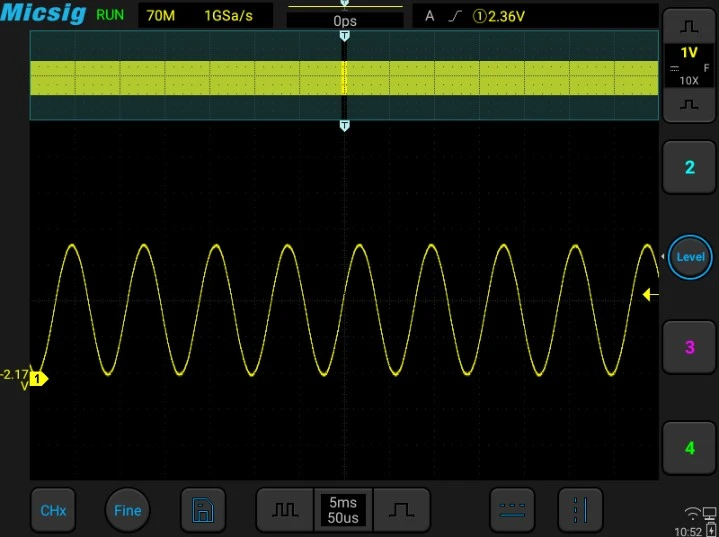

Ultra-deep Memor

Using hardware-based Zoom technique and memory depth of up to 220Mpts, users to move and browse waveforms much easier and quickly zoom in to focus on the area of interest.

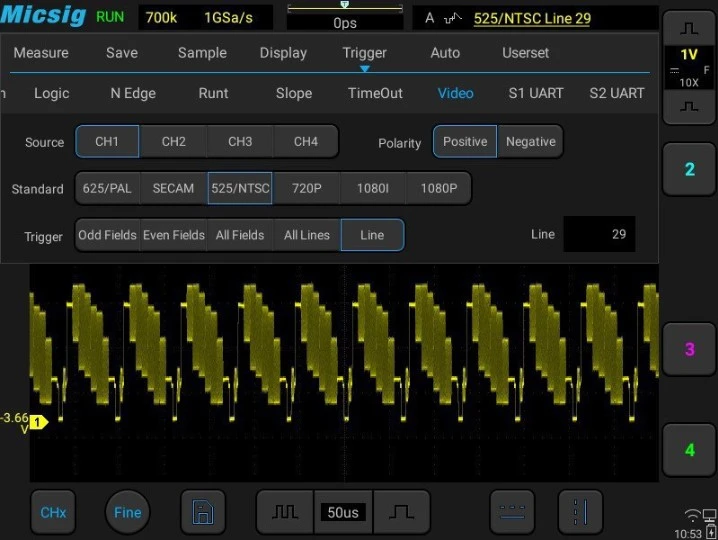

Powerful Trigger Functions

Support Edge, Pulse, Logic, N Edge, Runt, Slope, Timeout, Video and Serial trigger, most intuitive trigger settings.

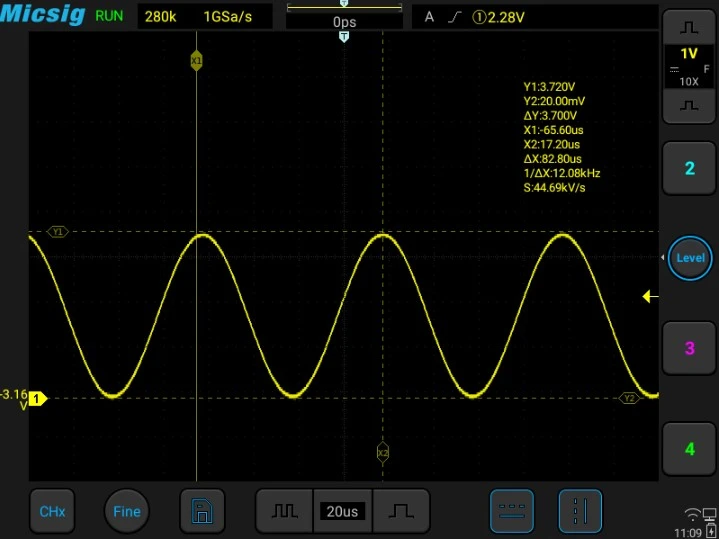

Convenient Cursor Measurement

One touch to open horizontal and vertical cursors, each cursor can be moved separately or simultaneously.

Vertical scale finin

By pinching two fingers apart on the screen, you can adjust the vertical scale as you like, no longer limited by the 1/2/5 step limit.

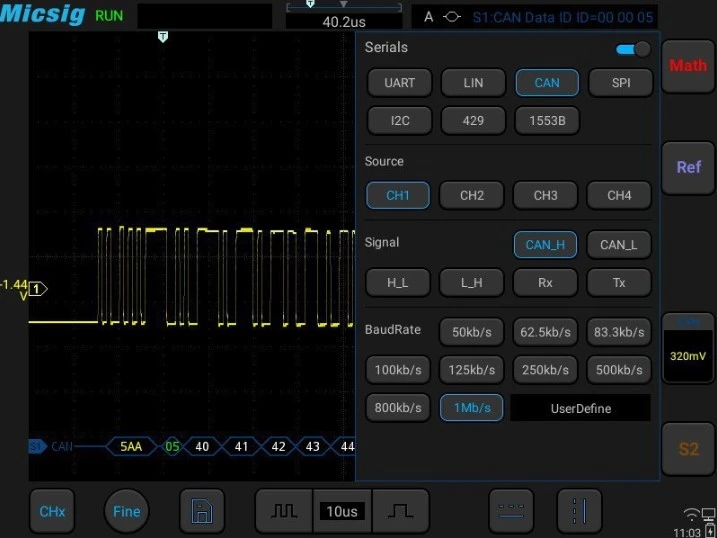

Serial Bus Decoding and Analysi

Support RS-232/422/485/UART, LIN, CAN, CAN FD, I²C, SPI serial bus decoding and triggering options, display waveform and data at the same time.



Bandwidth  200MHz
Analog channels  2
Rise time  ≤1.75ns
Sampling Rate (Max.)  1GSa/s
Memory depth  110Mpts
Input Impedance  1MΩ
Support Tests  Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN, CAN FD, LIN, Flexray, K line), Combination Tests
Bandwidth Filter Full bandwidth, Low pass
Interfaces  Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out
Display Industrial 10.1" TFT-LCD (1280*800)
Dimension / Net Weight 265*192*50mm / 1.9kg (with battery)
Battery 7.4V, 7500mAh, Li-ion battery
  • ATO2002 Base Unit
  • Passive BNC probes * 2 or 4 pcs (channel dependent)
  • Power adaptor * 1 pc
  • Power plug (Local) * 1 pc
  • Battery (Built-in) * 1 pc
  • 8" Screen protector * 1 pc
  • Alligator clips * 2 pairs
  • BNC to banana cable * 2 or 4 pcs
  • Flexible needle * 2 pairs
