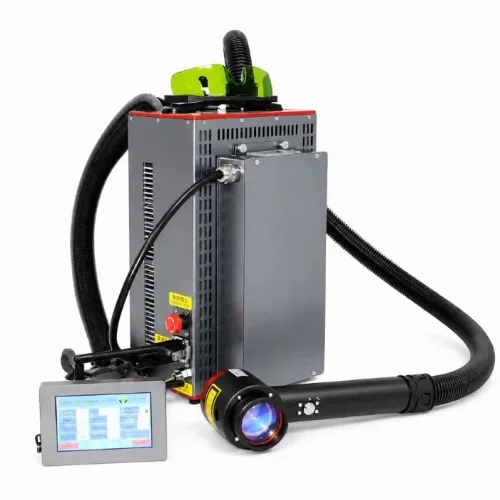

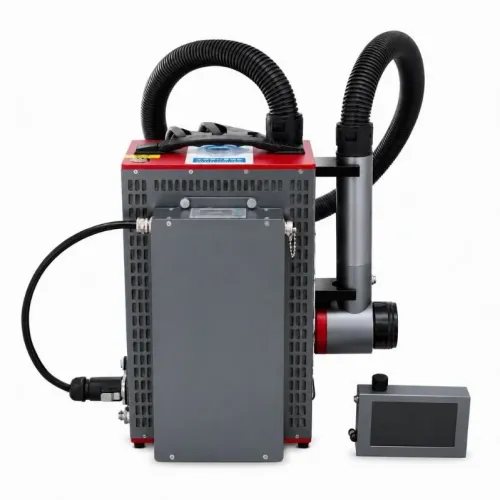

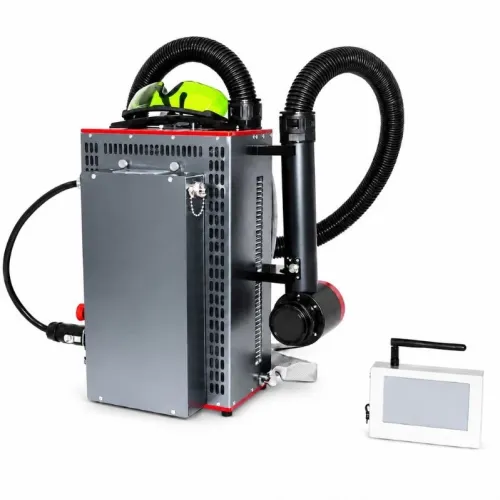

200W Air-Cooled Backpack Pulsed Laser Cleaning Machine with Removable Lithium Battery

Shipping Notice: Free delivery does not apply to this item. Delivery costs are calculated based on your location. Please contact us for a shipping quote before or after placing your order.

The 200W backpack pulsed laser cleaning machine is a portable laser cleaning solution designed for removing rust, paint, oxide layers, oil, dirt, graffiti, and other surface contaminants. Instead of using abrasive materials, chemicals, or mechanical contact, the pulsed laser directs short bursts of concentrated energy onto the contaminated surface. The unwanted layer is removed while the underlying material can be cleaned with minimal thermal and mechanical impact.

This cleaning method is particularly useful when working with metal parts, precision components, automotive surfaces, industrial equipment, and other applications where controlled surface treatment is important. The laser cleaning process is non-contact, so there is no need for abrasive media or direct contact between the cleaning head and the workpiece. This can help reduce consumable use and make the cleaning process easier to control for different surface conditions.

One of the main advantages of this model is its backpack-style construction. Unlike conventional laser cleaning machines that are primarily designed to remain in one location, this unit can be carried to the work area. The removable lithium battery allows operation in outdoor locations, elevated areas, remote work sites, and other places where access to a fixed power supply may be limited. The battery can also be removed and replaced directly when required, making maintenance and continued operation more convenient.

The 200W laser system provides a higher power level for applications that require more cleaning capacity than lower-power portable systems. At the same time, the machine remains compact enough for mobile use. The air-cooled design eliminates the need for a separate water-cooling system, while the handheld cleaning gun weighs less than 0.75 kg, making it easier to guide across the surface during longer cleaning jobs.

Control is handled through an independent wireless control screen that can be worn on the wrist. This allows the operator to adjust the machine without remaining next to a fixed control panel. The cleaning system also provides multiple scanning modes and adjustable laser parameters, allowing the cleaning pattern and operating settings to be adapted to different materials, contamination levels, and workpiece shapes.

Key Features

200W Pulsed Laser: Suitable for demanding rust removal, paint stripping, oxide cleaning, oil removal, and other surface treatment applications.
Backpack Design: Allows the machine to be carried directly to the work area and used in locations that are difficult to access with conventional equipment.
Removable Lithium Battery: The battery can be removed and replaced directly, simplifying maintenance and allowing an additional battery to be used when longer operation is required.
Air-Cooled System: Provides machine cooling without requiring a separate water-cooling circuit.
Non-Contact Cleaning: Removes surface contaminants without abrasive contact between the cleaning head and the workpiece.
Lightweight Cleaning Gun: The handheld cleaning gun weighs less than 0.75 kg for easier handling during extended work.
Wireless Control Screen: Wrist-mounted control provides convenient access to operating parameters while working around the object.
Safety Lock: The laser output can only be activated when the safety lock is engaged, helping prevent accidental operation.

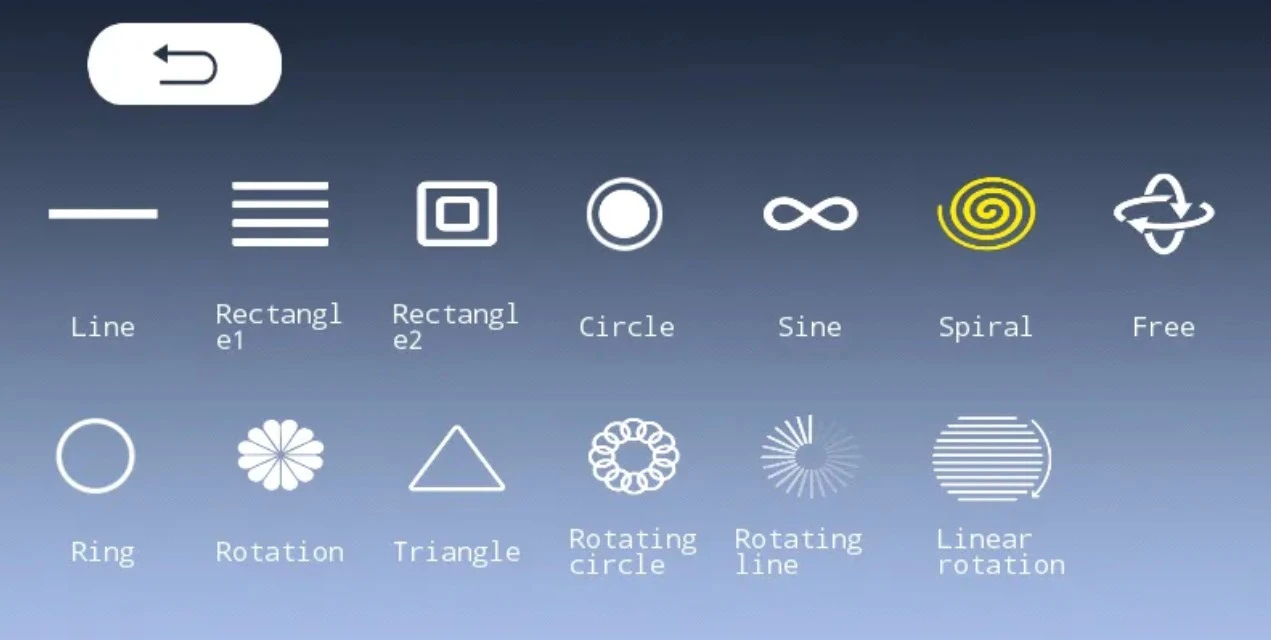

13 Cleaning Modes: Multiple scanning patterns can be selected for different surface shapes and cleaning requirements.
Adjustable Laser Parameters: Power and repetition rate can be adjusted to suit different cleaning applications.
Up to 40,000 mm/s Scan Speed: High scanning speed helps reduce processing time on suitable applications.
Alarm Records: Historical alarm information can be viewed through the system to assist with troubleshooting.
Automatic Laser Shut-Off: The system can automatically stop laser output after a preset continuous operating period.
Screen Lock: Locks the control display to help prevent accidental parameter changes during operation.
Multi-Language Interface: The control interface supports multiple languages for convenient operation in different markets.

Typical Applications

The portable laser cleaner can be used for a wide range of surface cleaning tasks, including rust removal, paint removal, oxide layer cleaning, oil and grease removal, graffiti removal, and surface preparation. The mobile design is particularly useful for automotive maintenance, industrial cleaning, outdoor restoration work, elevated structures, and hard-to-reach areas.

Portable Operation for Hard-to-Reach Areas

The combination of a backpack body, removable battery, handheld cleaning gun, and wireless control screen makes this system suitable for applications where moving a conventional laser cleaning machine would be inconvenient. It can be transported to the workpiece rather than requiring the workpiece to be brought to the machine.

Available Versions

The same backpack platform is available in different power configurations. The 200W version is offered as the main configuration, while a 100W version is available as an alternative for applications where a lower laser power is sufficient.

Optional Additional Battery

An additional removable lithium battery can be selected for applications requiring longer mobile operation. A second battery allows one battery to be used while the other is being charged, reducing interruptions during extended work.

Tags: 100W Backpack Laser Cleaner , 200W Backpack Laser Cleaner , Removable Lithium Battery Laser Cleaner , Cordless Laser Rust Remover , Portable Laser Cleaning Machine , Battery Powered Laser Cleaner , Laser Rust Removal Machine , Laser Paint Removal Machine , Outdoor Laser Cleaner , Air Cooled Pulse Laser Cleaner

Frequently Asked Questions

Do you offer international shipping for your products? ❯: Yes, we offer fast international express delivery for all products available at BalticDiag.com. We deliver worldwide — including the USA, Europe, North America, South America, Asia, Africa, and Australia — using trusted courier services such as DHL, UPS, and FedEx. Every order is shipped with express delivery straight to your door, ensuring a quick and secure arrival. Shipping fees are included in the product price, and we provide full tracking information so you can monitor your package from dispatch to delivery.

Please note that some products include free delivery, while others require confirmation of shipping costs before purchase. In most cases, pallet-sized packages have additional delivery charges that must be calculated in advance by our sales team.
How can I pay for my order on Balticdiag.com? ❯: We accept a wide range of secure global and local payment methods, including:

Credit & Debit Cards: Visa, Mastercard, American Express, Discover, Diners Club, JCB, China UnionPay, Cartes Bancaires (France)

Digital Wallets: Apple Pay, Google Pay, PayPal, Alipay, Revolut Pay, MobilePay (Denmark & Finland), Link with Instant Bank Payments (USA)

Local Payment Methods: Bancontact (Belgium), BLIK & Przelewy24 (Poland), iDEAL (Netherlands), giropay (Germany), EPS (Austria), Klarna (buy now, pay later), SEPA Direct Debit (EU), Kakao Pay, Naver Pay, PAYCO (South Korea)

Bank Transfers: We also support traditional wire transfers.

Model	BD71463
Laser Power	200W
Laser Source	JPT
Laser Operation Mode	Pulse
Supply Voltage	Single Phase 110V/220V ±10%, 50/60Hz AC
Battery	Removable Lithium Battery
Pulse Width	13-500 ns
Pulse Frequency Range	1-3000 kHz
Maximum Single Pulse Energy	2 mJ / 5 mJ
Power Adjustment Range	10-100%, gradient adjustable
Repetition Rate	20-200 kHz, gradient adjustable
Fiber Cable Length	1.5 m
Center Wavelength	1064 nm
Cooling Method	Air-Cooled
Scanning Width	0-100 mm
Scanning Frequency	1-4000 Hz
Scan Speed	10-40,000 mm/s
Scan Width Options	F160: 105 × 105 mm, F210: 140 × 140 mm, F254: 160 × 160 mm, F330: 185 × 185 mm, F420: 300 × 300 mm, customizable
Operating Temperature	5°C to 40°C
Operating Humidity	≤80%
Machine Dimensions Without Battery	268 × 135 × 445 mm
Machine Dimensions With Battery	268 × 192 × 445 mm
Machine Weight Without Battery	13 kg
Machine Weight With Battery	18.5 kg
Laser Cleaning Gun Weight	<0.75 kg
Package Dimensions	910 × 890 × 420 mm
Package Weight Without Battery	50 kg
Package Weight With Battery	55 kg
Operation Mode	Wireless Control Screen
