Recessed Double Scissor Lift 3500 KG, BD-S4

Shipping Notice: Free delivery does not apply to this item. Delivery costs are calculated based on your location. Please contact us for a shipping quote before or after placing your order.

The recessed double scissor lift BD-S4 is designed for professional use in automotive workshops where reliable, safe, and ergonomic equipment is required for daily maintenance, repair, and inspection work. The recessed design allows for a low initial height, making the lift especially convenient for working with various types of passenger vehicles. The electro-hydraulic system ensures smooth, even, and synchronized lifting, while the robust construction enables operation under intensive conditions, maintaining a high level of safety and productivity.

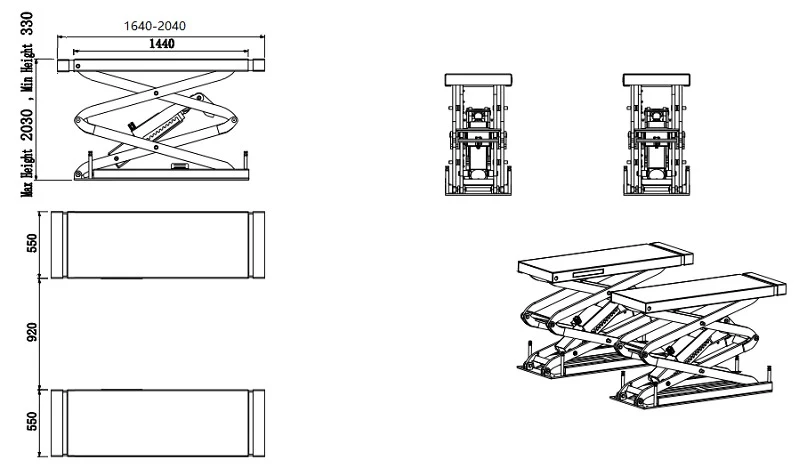

Technical specifications:

Operating principle: electro-hydraulic
Maximum lifting capacity: 3500 kg
Maximum lifting height: 2030 mm
Initial height: 330 mm
Platform length: 1640–2040 mm
Platform width: 550 mm
Overall width: 2020 mm
Weight: 740 kg
Power supply: 400 V / 50 Hz / 3-phase or 230 V / 50 Hz / 1-phase
Motor power: 2.2 kW
Operating temperature: 5 °C – +40 °C
Ambient operating humidity: 30–95 %
Noise level: 76 dB

Functions:

Independent control unit with low 24 V control voltage for increased operational safety
Compact two-stage folding scissor mechanism that saves space in the workshop
Hydraulic cylinder synchronization ensuring platform levelness throughout the entire lifting process
Convenient access to the vehicle undercarriage for inspection, servicing, and repair
Double mechanical safety system protecting the platforms from accidental lowering
Protective hydraulic valves against overload and hydraulic system failures
Mechanical emergency lowering in the event of power supply failure
Robust steel structure with sliding tracks, double pneumatic locking mechanisms, and integrated hydraulic oil reservoir
Electronic control system and hydraulic components integrated into the control unit

The recessed double scissor lift BD-S4 is a reliable choice for automotive service centers seeking efficient workflow, a high level of safety, and long-lasting equipment. By choosing this lift, you invest in a robust construction, smooth operation, and a professional solution designed for intensive daily use.
